PV Inverter Hybrid
Description
Technical Parameters
Product overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. lts comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Main features:
Pure Sine Wave Inverter;
Configurable input voltage range for home appliances and personal computers via;
LCD setting;
Configurable battery charging current based on applications via LCD setting;
Configurable AC/Solar Charger priority via LCD setting;
Compatible to mains voltage or generators power;
Auto restart while AC is recovering;
Overload/ Over temperature/short circuit protection;
Smart battery charger design for optimized battery performance;
Cold start function

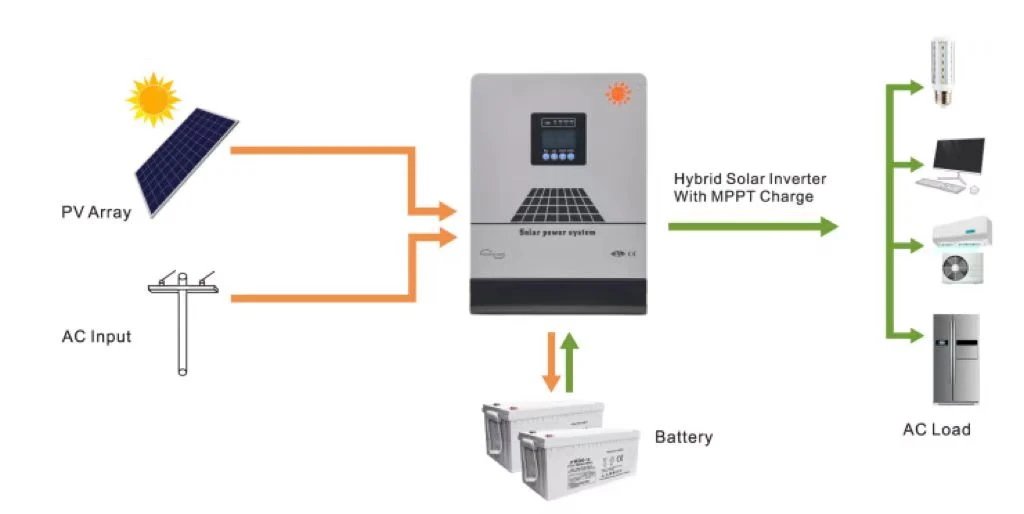

Application diagram:
Technical indexes:
|
Model |
ED-NKH-3KW |
ED-NKH-5KW |
|
Rated Power |
3000W |
5000W |
|
Input |
||
|
Voltage |
208VAC/220VAC/230VAC/240VAC |
|
|
Selectable Voltage Range |
170-280VAC(For Personal Computers) |
|
|
90-280VAC(For Home Appliances) |
||
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
Output |
||
|
AC Voltage Regulation (Battery.Mode) |
208VAC/220VAC/230VAC/240VAC士5% |
|
|
Surge Power |
6000VA |
10000VA |
|
Efficiency (Peak)PV to INV |
97% |
|
|
Efficiency (Peak)Battery to INV |
94% |
|
|
Transfer Time |
10 ms |
|
|
Overlord Capacity |
1min@102%-110%Load,10s@110%-130%Load, |
|
|
3s@130%-150%Load,0.2s@>150%Load |
||
|
Battery &AC Charge |
||
|
Battery Voltage |
24VDC |
48VDC |
|
Floating Charge Voltage |
27VDC |
54VDC |
|
Overcharge Protection |
32VDC |
64VDC |
|
Maximum Charge Current |
60A |
80A |
|
PV Charge |
||
|
Maximum PV Array Power |
1500W |
5500W |
|
MPPT Range Operating Voltage |
30-115VDC |
120-430VDC |
|
Maximum PV Array Open Circuit Voltage |
||
|
145VDC |
450VDC |
|
|
Maximum Charge Current |
60A |
80A |
|
Maximum Efficiency |
98% |
|
|
AC+PV Charge |
||
|
Maximum Charge Current |
120A |
80A |
|
Physical |
||
|
Dimension D*W*H(mm) |
439*320*128 |
|
|
Net Weight(kg) |
8 |
9.2 |
|
Communication interface |
USB/RS232/GPRS/WIFI |
|
|
Opera Ting Environment |
||
|
Humidity |
5%to 95%Relative Humidity(Non-condensing) |
|
|
Operating Temperature |
0℃-55℃ |
|
|
Storage Temperature |
-15℃-60℃ |
|
