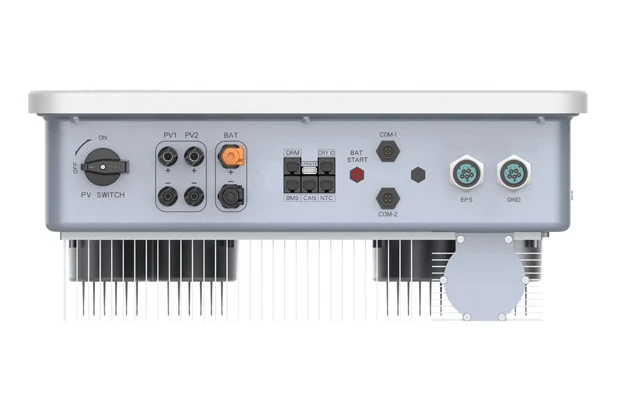

Inverter Hybrid On Off Grid 5kw
Description
Technical Parameters
Product overview:
Edobo inverter hybrid on off grid 5kw is a new generation of single-phase energy storage inverter with enhanced performance. It can adapt to various residential energy storage applications, including simultaneous access of PV, battery, load, grid/diesel generator, built-in self-generation and self-consumption, peak shaving and valley filling, battery priority, backup power, and other operation modes. It also supports multiple units in parallel, AC couple, diesel generators, Anti-reflux, and other energy storage solutions.
Technical indexes:
|
ED3K-TL |
|
|
Input(DC) |
|
|
Max.Input Power |
4.5kW |
|
Max.Input Voltage |
600V |
|
Start Voltage |
80V |
|
Rated In put Voltage |
360V |
|
Full-load MPP Voltage Range |
190V~480V |
|
MPPT Voltage Range |
80V~560V |
|
Number of MPP Trackers |
1 |
|
Number of String per MPPT |
1 |
|
Max.Current per MPPT |
20A |
|
Max.Short Circuit Currernt per MPPT |
25A |
|
Output(AC) |
|
|
Max.Output Current |
15A |
|
Rated Output Power |
3kW |
|
Max.Output Power |
3.3kVA |
|
Rated Grid Frequncy |
50Hz/60Hz |
|
Rated Grid Voltage |
220Vac/230Vac/240Vac |
|
Power Factor |
>0.99 (0.8 leading~0.8 lagging) |
|
TH Di |
<3% (Rated Power) |
|
Efficiency |
|
|
Max.Efficiency |
98.10% |
|
European Efficiency |
97.10% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
DC reverse polarity protection |
Yes |
|
Anti-islanding protection |
Yes |
|
AC short circuit protection |
Yes |
|
Residual current monitoring unit |
Yes |
|
Insulation resistance monitoring |
Yes |
|
Ground fault monitoring |
Yes |
|
Grid monitoring |
Yes |
|
PV string monitoring |
Yes |
|
Surge protection |
Type Ⅱ |
|
AFCI protection |
Optional |
|
Communication |
|
|
Display |
LED / LCD / WiFi+App |
|
Communication |
RS485 / WiFi / 4G |
|
Standard Compliance |
|
|
Grid Connection Standards |
IEC 61727, IEC 62116, IEC60068, VFE-AR-N 4110:2018, VDE-AR-N4105:2018 |
|
Safety/EMC |
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 |
|
General Data |
|
|
Dimensions(W*H*D) |
380*380*160mm |
|
Weight |
13kg |
|
Operating Temperature Range |
-30℃~+60℃ |
|
Cooling Method |
Natural |
|
Protection Degree |
IP66 |
|
Max.Operating Altitude |
4000m |
|
Reklative Humidity |
0~100% |
|
Topology |
Transfromless |
|
Night Power Consumption |
<1W |
Features:
1. Hybrid Inverter: The 5kW Inverter Hybrid On/Off Grid is designed with hybrid technology, which enables it to operate both on-grid and off-grid modes. In case of grid failures, the inverter will automatically switch to off-grid mode, ensuring uninterrupted power supply to your appliances without any interruption.
2. Sine Wave Output: The inverter delivers pure sine wave output, making it suitable for powering sensitive appliances, such as TVs, refrigerators, and computers.
3. High Power Output: The 5kW Inverter Hybrid On/Off Grid can deliver up to 5000 watts of power, making it suitable for powering heavy loads, such as air conditioners, and electric water heaters.
4. Intelligent Battery Management System: The inverter is smartly designed with an advanced battery management system, which ensures optimal utilization of battery power, extending the lifespan of the battery.
5. User-Friendly Interface: The inverter comes with a user-friendly interface and a modular design, making it easy to install and operate.
6. Environment-Friendly: The 5kW Inverter Hybrid On/Off Grid is an environment-friendly product, generating clean power without emitting any harmful pollutants, making it a great choice for sustainable living.
Applications
The 5kW Inverter Hybrid On/Off Grid is a versatile product that can be used in various applications, such as:
1. Residential: The inverter is an excellent choice for residential purposes, providing reliable power backup solutions during power outages.
2. Commercial: The inverter is a perfect choice for commercial purposes, where the device can sustain extreme power fluctuations.
3. Industrial: The inverter can also be used in industrial purposes, providing an uninterrupted power supply to critical equipment.
Conclusion:
The 5kW Inverter Hybrid On/Off Grid is the perfect solution for those who want reliable and powerful backup power solutions. Its advanced hybrid technology, user-friendly interface, and intelligent battery management system make it an ideal choice for homes, offices, and industries.
