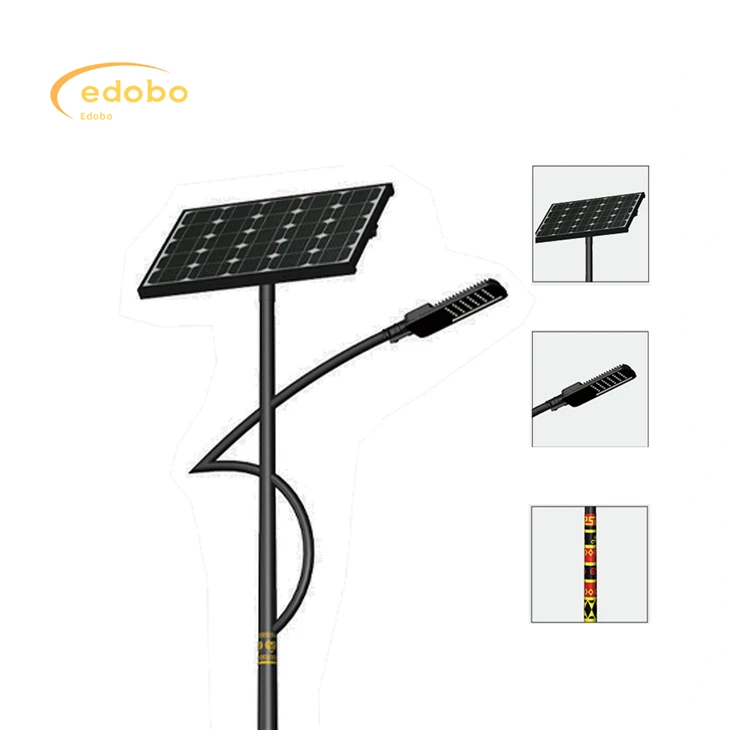

Customized Solar Street Lights With Single Arm And Double Arm For Road Use
Customized Solar Street Lights With Single Arm And Double Arm For Road Use suppliers
Customized Solar Street Lights With Single Arm And Double Arm For Road Use factory
Customized Solar Street Lights With Single Arm And Double Arm For Road Use best
Customized Solar Street Lights With Single Arm And Double Arm For Road Use high quality
Customized Solar Street Lights With Single Arm And Double Arm For Road Use
Description
Technical Parameters
Upgrade your outdoor lighting with the LED Street Light with Lithium Battery Solar Street Light-a high-efficiency, low-maintenance solution designed for residential, commercial, and public spaces. This solar-powered LED street light combines ultra-bright LED chips, a long-lasting lithium battery, and intelligent energy management, delivering zero electricity bills and all-weather reliability.
We offer highly customizable solar street lights available in single arm and double arm versions, specially designed for urban roads, highways, residential areas, parks, industrial zones, and public infrastructure projects.
These split-type solar street lights provide reliable, off‑grid, energy‑saving lighting with long lifespan and stable performance.
Edobo soalr--solar Street lights :
Ultra-Bright & Energy-Efficient LED LightingEquipped with premium 3030 LED chips boasting 190lm/W luminous efficacy, the Edobo solar street light offers adjustable brightness (ranging from 30W to 120W) to match diverse application needs. The 180° wide beam angle ensures uniform light distribution, eliminating dark spots. With a 50,000-hour lifespan (over 5 years of continuous use), it requires no frequent bulb replacements, cutting maintenance costs significantly.

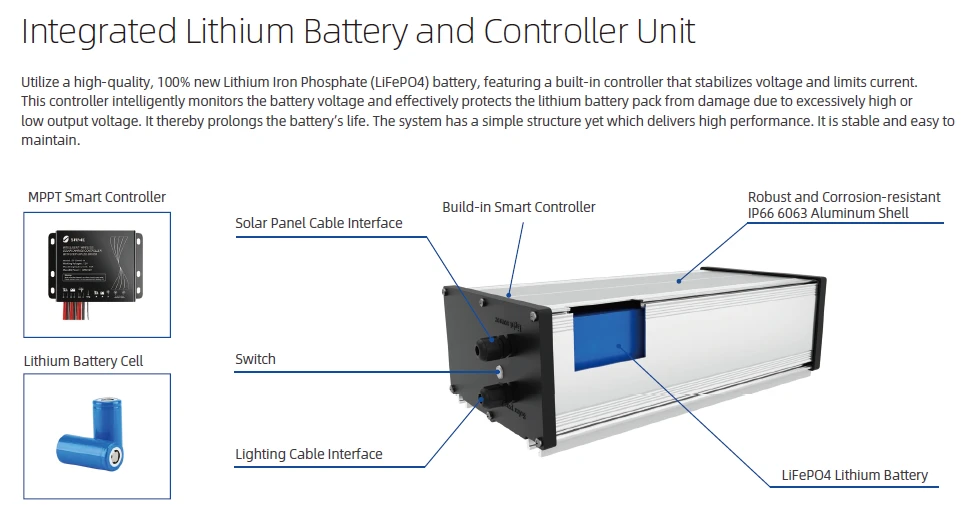

Long-Lasting Lithium Iron Phosphate (LiFePO4) BatteryPowered by a grade-A LiFePO4 lithium battery (12.8V 20Ah–100Ah, customizable by model), this street light features 2500+ charge-discharge cycles and a 6–10 year battery lifespan - 3x longer than traditional lead-acid batteries. The built-in Battery Management System (BMS) provides full protection against overcharging, over-discharging, short circuits, and extreme temperatures, ensuring safe and stable operation in harsh environments.
High-Efficiency Solar Charging with MPPT TechnologyPaired with a high-conversion monocrystalline solar panel (23% efficiency, 25-year lifespan), the system uses an MPPT charge controller that boosts energy absorption by 30% compared to standard PWM controllers. It achieves full charge in just 4–6 hours of direct sunlight and maintains reliable charging even on cloudy or rainy days. The light sensor enables auto-on at dusk and auto-off at dawn, requiring zero manual operation.

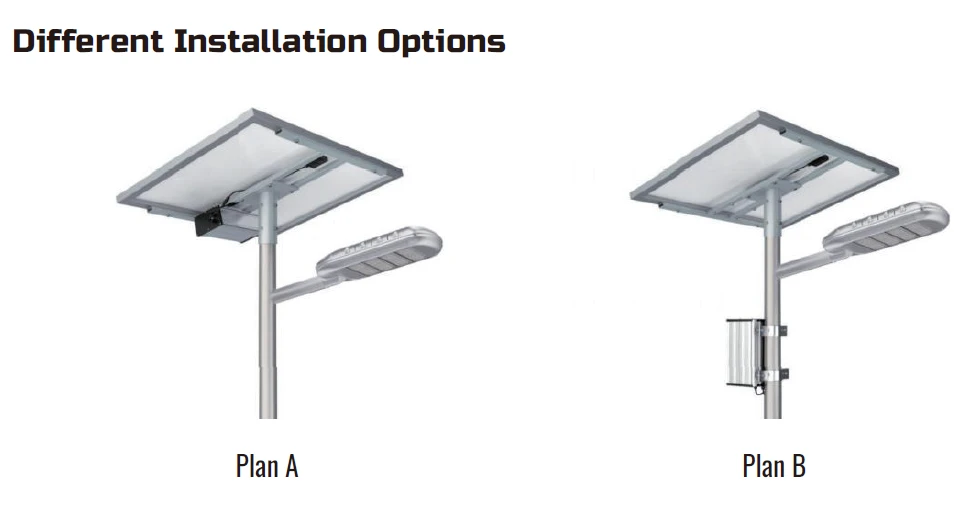

Customizable Design: Support single arm and double arm structures to meet different road width and lighting coverage requirements.
High-Efficiency Solar Power: Equipped with high conversion efficiency monocrystalline solar panels and long-cycle lithium batteries for stable off‑grid operation.
Super Bright LED Chip: High lumen output, uniform light distribution, low light decay, ideal for road safety and night visibility.

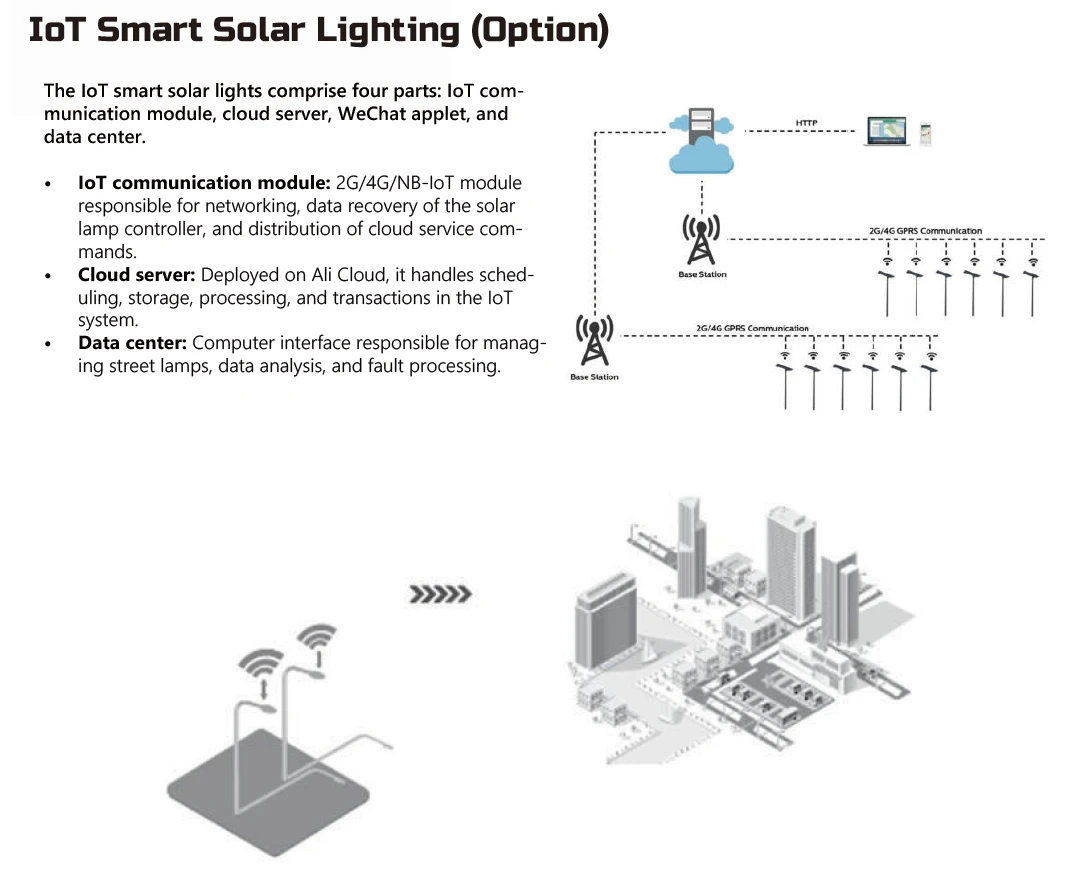

Intelligent Control System: Auto on at dusk, auto off at dawn; support time dimming, microwave radar sensor, and remote control functions.
Strong & Durable Structure: Rustproof, waterproof, wind-resistant, suitable for outdoor harsh environments.
| 6M 30W | 8M 60W | 10M 80W | 12M 100W | |
| LED Street Light | Power: 3 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC1 2 V Color temperature:2 7 00 - 65 00 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
Power: 6 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC2 4 V Color temperature: 2 7 0 0 - 6 5 0 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
Power: 8 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC2 4 V Color temperature:2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
Power: 1 0 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC2 4 V Color temperature:2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
| solar panel | Power: 1 2 0 W Operation Voltage : 1 8 V Operation Current :6 . 67 A Open circuit voltage: 2 2 V Short circuit current: 6 . 7 5 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
Power: 1 2 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 6 . 67 A Open circuit voltage: 2 2 V Short circuit current: 6 . 7 5 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
Power: 1 5 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 8 . 4 A Open circuit voltage: 2 2 V Short circuit current: 8 . 8 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
Power: 2 0 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 1 1 . 1 2 A Open circuit voltage: 2 2 V Short circuit current: 1 1 . 4 6 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
| Option 1: Gel Battery | Rated Capacity: 1 0 0 AH Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
Rated Capacity: 1 0 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
Rated Capacity: 1 2 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
Rated Capacity: 1 5 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
| Option 2: Lithium Battery | Rated Capacity: 7 2 AH Rated Voltage:12 . 8V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
Rated Capacity: 7 2 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
Rated Capacity: 8 4 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
Rated Capacity: 1 0 2 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
| Solar Controller | Rated Voltage: 1 2 V/ 2 4 V Rated Current: 1 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection |
Rated Voltage: 1 2 V/ 2 4 V Rated Current: 1 5 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection |
Rated Voltage: 1 2 V/ 2 4 V Rated Current: 2 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection |
Rated Voltage: 1 2 V/ 2 4 V Rated Current: 2 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse connection |
| Street Light pole | Height: 6 m Top/ Bottom Diameter: 7 0 / 1 4 0 mm ; Thickness: 3 . 0mm Flange: 240*240*12 mm Hot dip galvanized pole with powder coating |
Height: 8 m Top/ Bottom Diameter: 8 0 / 1 6 0 mm ; Thickness: 3 . 5mm Flange: 300*300*14 mm Hot dip galvanized pole with powder coating |
Height: 1 0 m Top/ Bottom Diameter: 9 0 / 1 9 0 mm ; Thickness: 4 . 0mm Flange: 350*350*18 mm Hot dip galvanized pole with powder coating |
Height: 1 2 m Top/ Bottom Diameter: 1 0 0 / 2 1 0 mm ; Thickness: 4 . 5mm Flange: 40 0* 40 0 *2 0 mm Hot dip galvanized pole with powder coating |
| Anchor Bolt | J bolt : M1 6 Number of J bolt: 4 pcs Length of J bolt: 5 0 0 mm ( hot galvanized J bolt available) |
J bolt : M1 8 Number of J bolt: 4 pcs Length of J bolt: 7 0 0 mm ( hot galvanized J bolt available) |
J bolt : M1 8 Number of J bolt: 4 pcs Length of J bolt: 9 0 0 mm ( hot galvanized J bolt available) |
J bolt : M2 0 Number of J bolt: 4 pcs Length of J bolt: 1 1 0 0 mm ( hot galvanized J bolt available) |
| RVV 2*2.5mm² | RVV 2*2.5mm² | RVV 2*2.5mm² | RVV 2*2.5mm² |
Usage scenario best solar lights that stay on all night
Suitable Applications
Urban roads, county roads, rural roads
Highways, main streets, secondary streets
Residential quarters, school campuses, industrial parks
Public squares, gardens, parking lots
Municipal engineering & government projects
Why Choose Edobo Solar's Split Type Street Lights?
Superior Performance: The split design separates the heavy battery and panel from the lamp head, allowing for optimal placement and performance of each component.
Increased Flexibility: Allows for independent positioning of the solar panel to maximize sunlight exposure, regardless of the lamp post location.
Enhanced Durability: Components are designed to withstand extreme weather conditions, ensuring long-term reliability and minimal maintenance.
Environmentally Friendly: Harness the power of the sun to reduce your carbon footprint and contribute to a sustainable future.
Cost-Effective: Eliminate electricity bills and significantly reduce maintenance costs with our reliable and long-lasting solar solution.
Customizable: Options to chose the right battery for the environment and the size of panel and lamp head.
Warranty & After-Sales Support
Whole Lamp Warranty: 2 years (covers manufacturing defects and performance issues).
Lithium Battery Warranty: 5 years (free replacement if capacity drops below 80% within 5 years).
Solar Panel Warranty: 25 years (guarantees 80% conversion efficiency after 25 years of use).
24/7 Technical Support: Our global team provides remote installation guidance and troubleshooting via email, phone, or live chat, with a response time of less than 12 hours. Bulk buyers qualify for on-site installation services.
