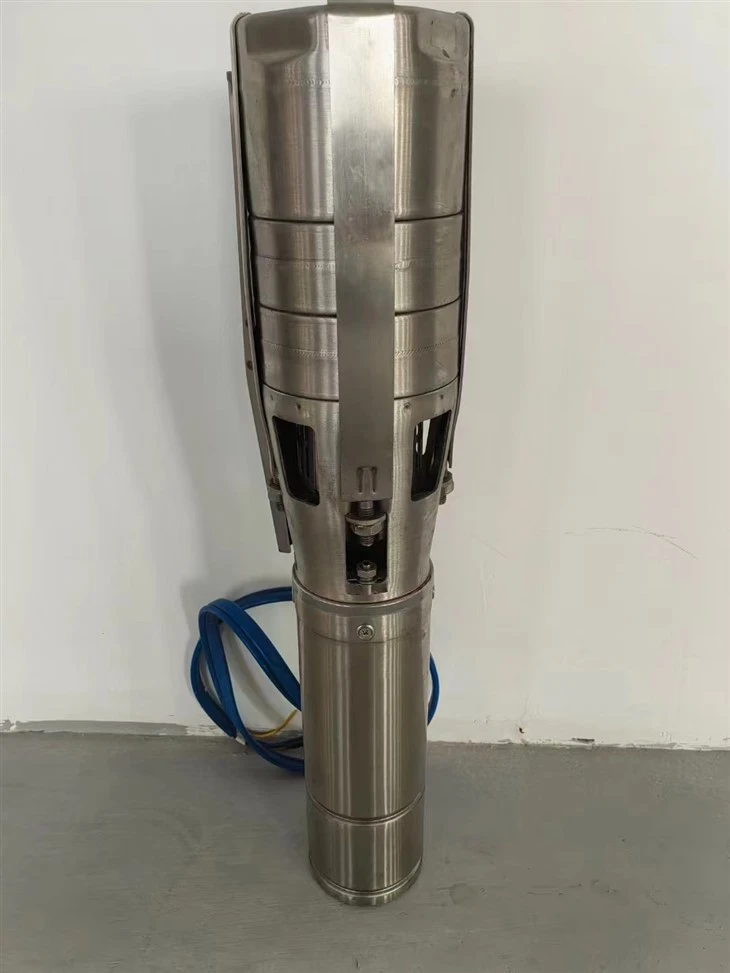

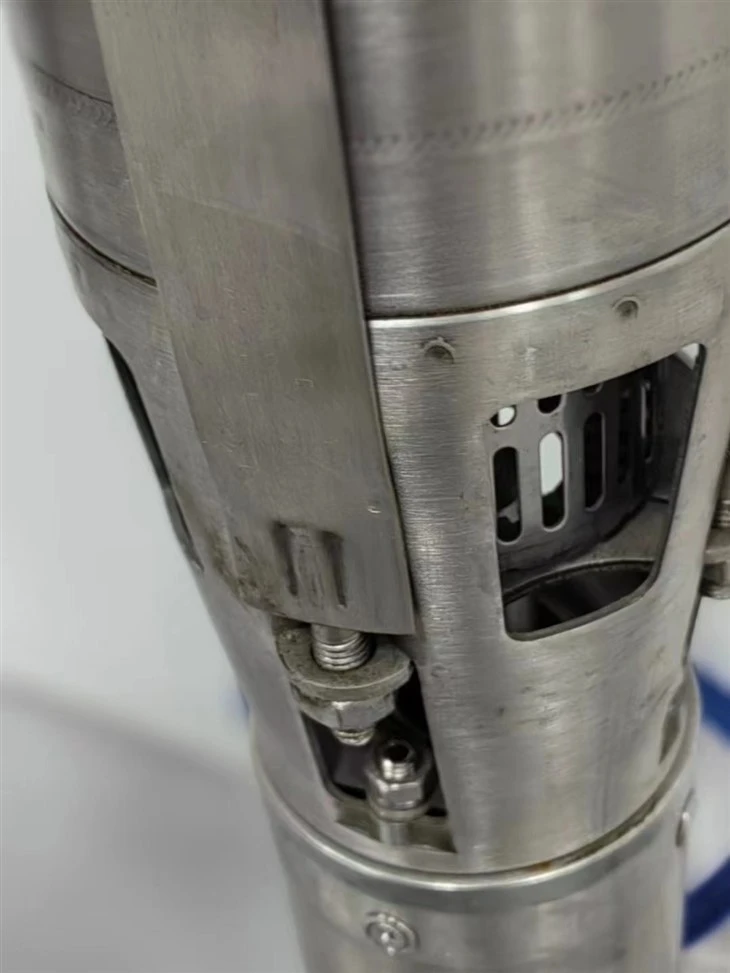

1.5 Hp Deep Well Solar Water Pump For Farm
Description
Technical Parameters
Feature of 1 2 hp submersible well pump:
Key Specifications
Power & Motor
Rated at 1.5 HP (1100 W), brushless DC motor running at 4,000 RPM for efficient, low-maintenance operation
Shielded water-filled motor with antifreeze/deionized water mixture and epoxy-filled coils for extended service life and zero pollution risk
Hydraulic Performance
Max Flow: Up to 15 m³/h (≈ 250 L/min) for high-volume irrigation
diffulpump.com
Max Head: 38 m in standard models; specialized versions support heads up to 100 m or more for deep wells
.
Materials & Construction
Impeller & Casing: 304 SS impeller with corrosion-resistant housing.
Shaft & Bearings: Graphite bearings for wear resistance and quiet operation
.
Electrical & Solar Compatibility
Voltage: 60–380 Vmp (60–440 Voc) DC; also supports 90–240 VAC models for hybrid setups
.
Controller: Built-in MPPT controller ensures maximum power extraction from PV modules.
Specifications of 1 2 hp submersible well pump
Data of 1 2 hp submersible well pump

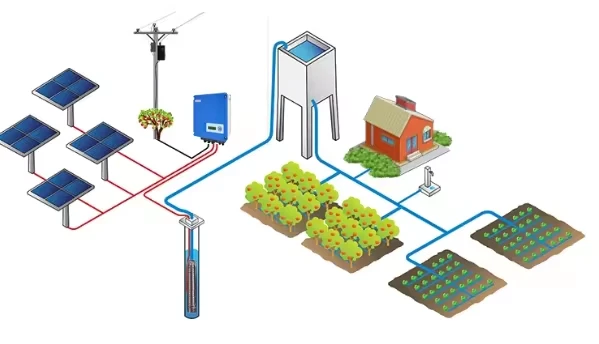

Usage scenario of 1 2 hp submersible well pump
Main Features & Benefits
1. Reliable Farm Irrigation
Automated solar-powered operation means no grid electricity costs, enabling consistent irrigation for crops, orchards, and greenhouse systems-even in remote locations without power infrastructure
.
2. Livestock & Aquaculture
Provides up to 26 GPM (≈ 100 L/min) at depths of 300 ft for watering livestock or pond aeration, ensuring animal health and water quality
.
3. Low-Maintenance Design
The fully enclosed, water-filled motor eliminates the need for frequent service, while stainless-steel components resist rust and wear-ideal for harsh farm environments
Installation & Sizing
Site Assessment:
Determine well depth, required flow rate, and system head.
Calculate PV array size (e.g., 330 W × 4 panels for typical operation).
Mounting & Wiring:
Lower the pump into the well with a drop cable rated for submersion.
Connect panels in series to the controller, then to the pump-no inverters or AC grid tie required.
