Inverter 5000w
Description
Technical Parameters
Product overview:

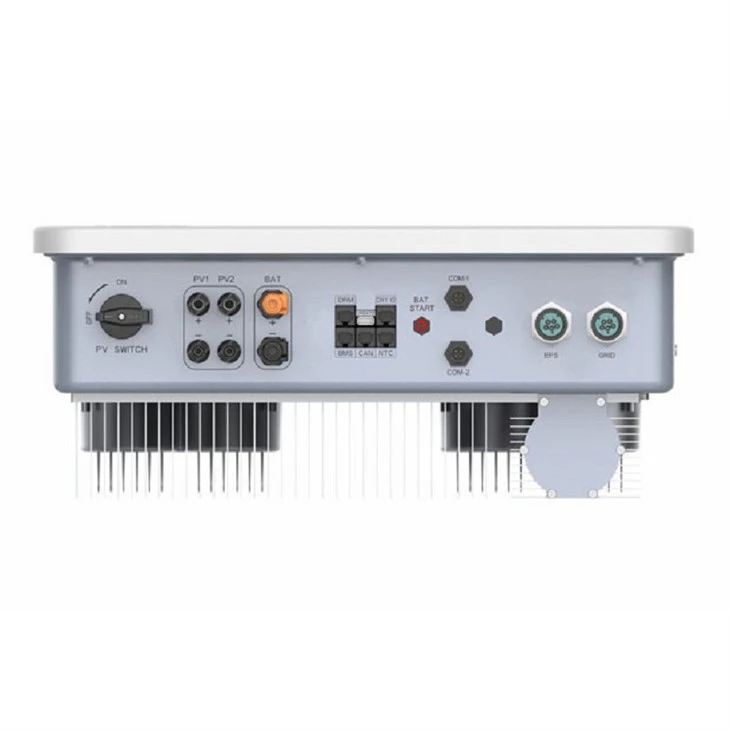

ED5kW is the latest single-phase energy storage inverter designed for households and small commercial solar power plants. It has built-in self-generation and self-consumption, peak shaving and valley filling, battery priority, backup power, and other operating modes. Additionally, it also boasts a range of energy storage solutions, including multiple units in parallel, Anti-reflux, etc. With its comprehensive feature set, the ED5kW is an ideal choice for those seeking a reliable and efficient inverter for their solar power plant.
Technical indexes:
|
ED5K-TL |
|
|
Input(DC) |
|
|
Max.Input Power |
7.5kW |
|
Max.Input Voltage |
600V |
|
Start Voltage |
80V |
|
Rated In put Voltage |
360V |
|
Full-load MPP Voltage Range |
170V~480V |
|
MPPT Voltage Range |
80V~560V |
|
Number of MPP Trackers |
2 |
|
Number of String per MPPT |
1/1 |
|
Max.Current per MPPT |
20A |
|
Max.Short Circuit Currernt per MPPT |
25A |
|
Output(AC) |
|
|
Max.Output Current |
25A |
|
Rated Output Power |
5kW |
|
Max.Output Power |
5.5kVA |
|
Rated Grid Frequncy |
50Hz/60Hz |
|
Rated Grid Voltage |
220Vac/230Vac/240Vac |
|
Power Factor |
>0.99 (0.8 leading~0.8 lagging) |
|
TH Di |
<3% (Rated Power) |
|
Efficiency |
|
|
Max.Efficiency |
98.30% |
|
European Efficiency |
97.20% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
DC reverse polarity protection |
Yes |
|
Anti-islanding protection |
Yes |
|
AC short circuit protection |
Yes |
|
Residual current monitoring unit |
Yes |
|
Insulation resistance monitoring |
Yes |
|
Ground fault monitoring |
Yes |
|
Grid monitoring |
Yes |
|
PV string monitoring |
Yes |
|
Surge protection |
Type Ⅱ |
|
AFCI protection |
Optional |
|
Communication |
|
|
Display |
LED / LCD / WiFi+App |
|
Communication |
RS485 / WiFi / 4G |
|
Standard Compliance |
|
|
Grid Connection Standards |
IEC 61727, IEC 62116, IEC60068, VFE-AR-N 4110:2018, VDE-AR-N4105:2018 |
|
Safety/EMC |
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 |
|
General Data |
|
|
Dimensions(W*H*D) |
380*380*160mm |
|
Weight |
13kg |
|
Operating Temperature Range |
-30℃~+60℃ |
|
Cooling Method |
Natural |
|
Protection Degree |
IP66 |
|
Max.Operating Altitude |
4000m |
|
Reklative Humidity |
0~100% |
|
Topology |
Transfromless |
|
Night Power Consumption |
<1W |
