Function and Introduction

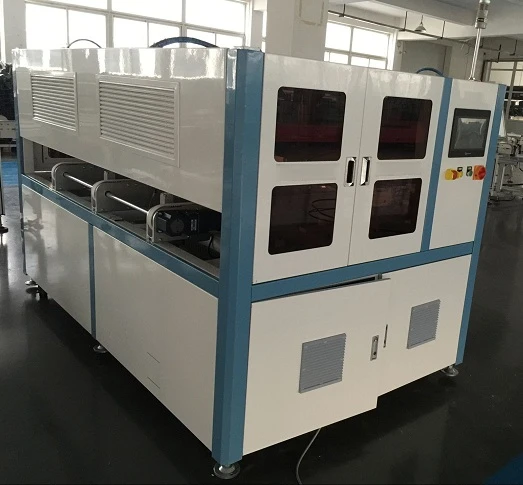

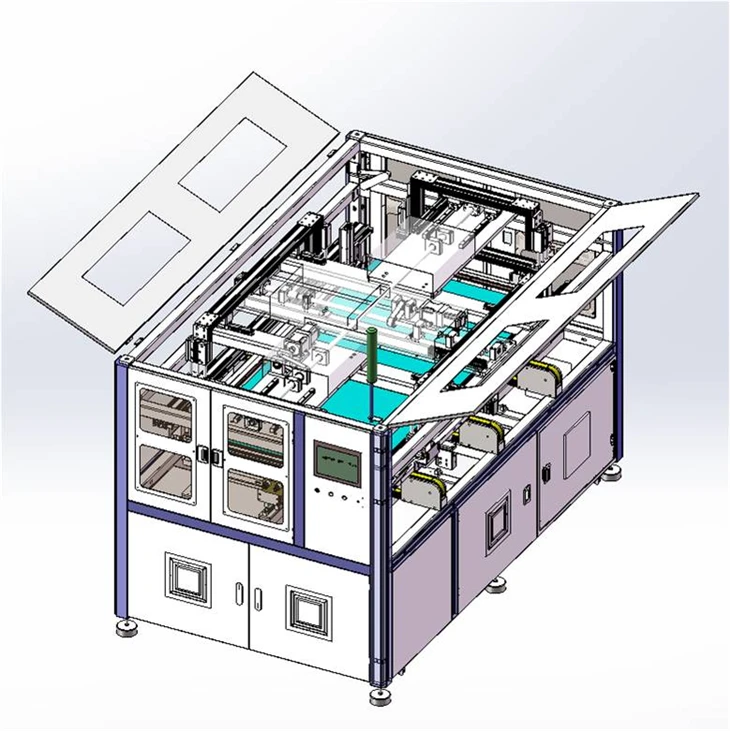

Insulation testing station for modules online. Transmission unit only with tester excluded.
1. outside of the machine is integrated framework, looks pretty.
2. when the module on the right position, air cylinder adjust and fix the position, ground connection control.
3. Standard motor frequency conversion control the transmission.
Main Parameter
Module Format：Length(1580-2000)mm×Width(800-1000)mm
Cycle time：＜25s
Max Capacity：＞2400/day
Online Operator：none
Rated power(kw)：0.4KW
Pressure(MPa)：0.6MPa
Dimension(LXWXH)：2494mmx1490mmx1600mm
Environmental requirement：temperaure18-30℃.Humidity ＜75%.
Advantage
1. Fixed modules position, power on, test hi-pot automatically, give alarm if defection.
2. There is touch screen on the frame which is convenient for operator to observe data and find the debug as soon as possible.
