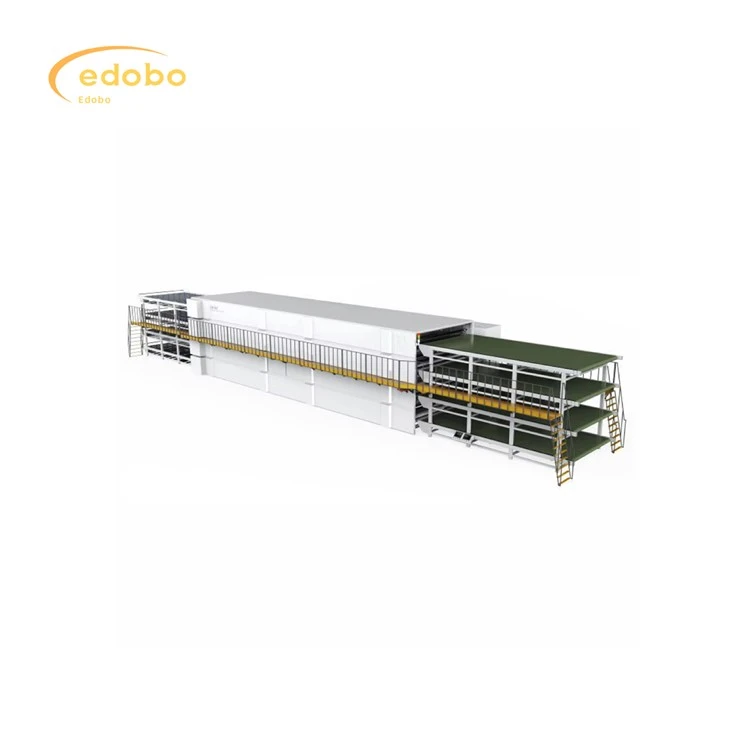

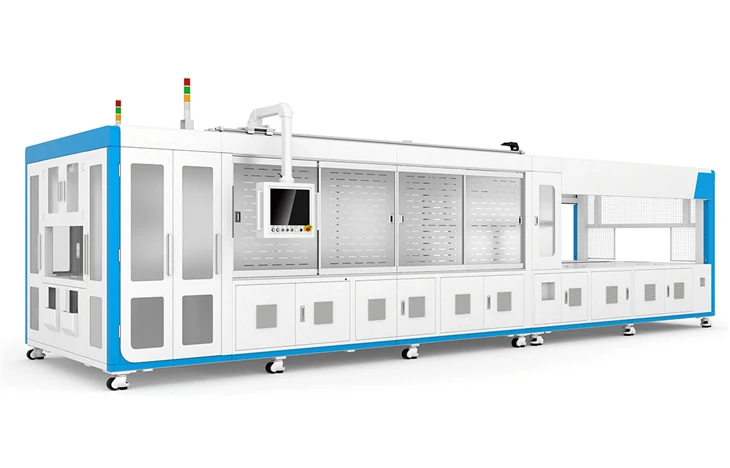

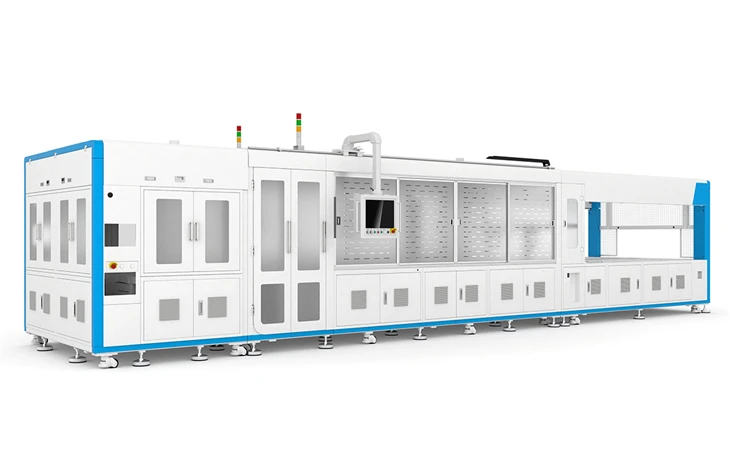

Solar Panel Production Line Machinery

Panel Assembly (Module Manufacturing):

Cell Handling & Stringing:

Automatic Cell Handling: Robots move cells.

Automatic Busbar Welding Machine: Connects cells into strings.

Lamination & Encapsulation:

Automatic EVA Cutting: Prepares EVA sheets or dispenses EVA.

Automatic Tape Machine: (If used) Applies tape for positioning or edge sealing.

Automatic Glass Machine: Handles and positions the glass cover.

The cell strings are then transferred to the:

Laminating Machine: Applies heat, pressure, and vacuum.

Finishing:

Automatic Edge Cutting Machine: Trims the panel edges.

Automatic Glue Injection and Framing Machine: Applies adhesive and frames the panels.

Testing & Inspection: Automated testers and vision systems.

Final Steps:

Automatic Labeling Machine: Applies labels to the panels.

Automatic Stacking and Packaging: Robots stack and package.

Edobo Solar's solar panel production line machinery offers flexible and scalable solutions tailored to your unique manufacturing needs. Whether you're starting a new venture or expanding existing capacity, our systems are designed to adapt to your specific production requirements. From modular machinery designs to customizable automation options, Edobo Solar provides the adaptability you need to optimize your production line for various panel types and production volumes. With Edobo Solar, you gain not just machinery, but a tailored solution that grows with your business. Discover the versatility of Edobo Solar's custom-engineered solar panel production line machinery today.











Key Strengths:

Cell Sorting & Testing: Ensuring the quality and electrical performance of individual solar cells.

Cell Stringing: Connecting individual cells to form strings.

Lay-up: Assembling the various layers of the module (backsheet, encapsulant, strings, etc.)

Lamination: Bonding the layers together under heat, pressure, and vacuum.

Trimming & Inspection: Removing excess material and conducting quality checks.

Framing: Adding the protective aluminum frame.

Junction Box Assembly & Wiring: Connecting the electrical wiring and junction box.

Final Testing & Cleaning: Completing final performance tests and cleaning the module.

Packaging: Preparing the finished modules for shipment.
