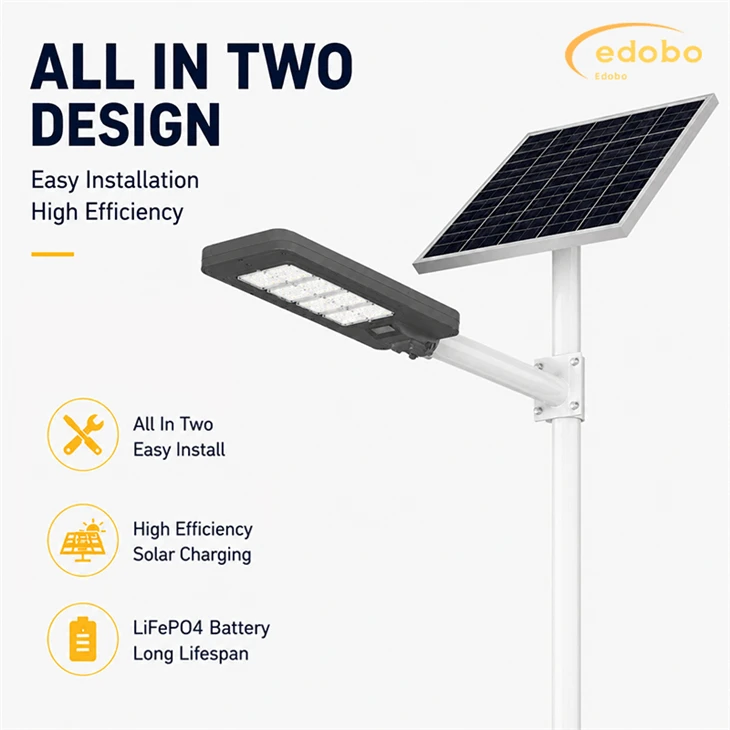

Commercial Solar Street Light High Efficiency Outdoor Road Lighting With Lithium Battery
Description
Technical Parameters
SMART IoT SOLAR STREET LIGHT
Edobo Smart IoT Solar Street Light integrates advanced solar technology with intelligent remote management, providing a reliable and energy-efficient lighting solution for roads, highways, parks, campuses, and industrial areas.

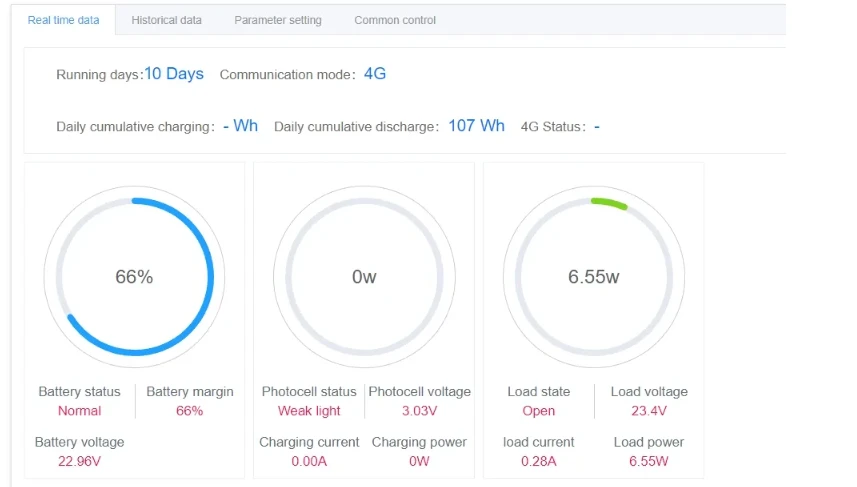

The system supports real-time monitoring of solar charging performance, battery status, and lighting operation through a centralized smart platform, helping improve maintenance efficiency and reduce operating costs.
Key Advantages
• Remote Monitoring & Control
Easily adjust brightness, operating modes, and lighting schedules anytime through smart management systems.
• Intelligent Fault Detection
Automatic alerts for low battery, abnormal charging, or lighting failures ensure stable and reliable operation.
• Energy-Efficient Performance
High-efficiency solar panels and intelligent energy management maximize lighting performance while reducing energy waste.
• Durable & Sustainable
Powered by clean solar energy with long lifespan components designed for harsh outdoor environments.
• Flexible Project Solutions
Suitable for smart cities, highways, municipal roads, parks, residential communities, and commercial projects.
Upgrade Your Outdoor Lighting with Smart Solar Technology
| 6M 30W | 8M 60W | 10M 80W | 12M 100W | |
| LED Street Light | Power: 3 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC1 2 V Color temperature:2 7 00 - 65 00 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
Power: 6 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC2 4 V Color temperature: 2 7 0 0 - 6 5 0 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
Power: 8 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC2 4 V Color temperature:2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |
Power: 1 0 0 w Led Chip: CREE/ NICHIA/Other Lumens: 1 9 0 Lm/ w Voltage: DC2 4 V Color temperature:2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP rating: IP6 6 |

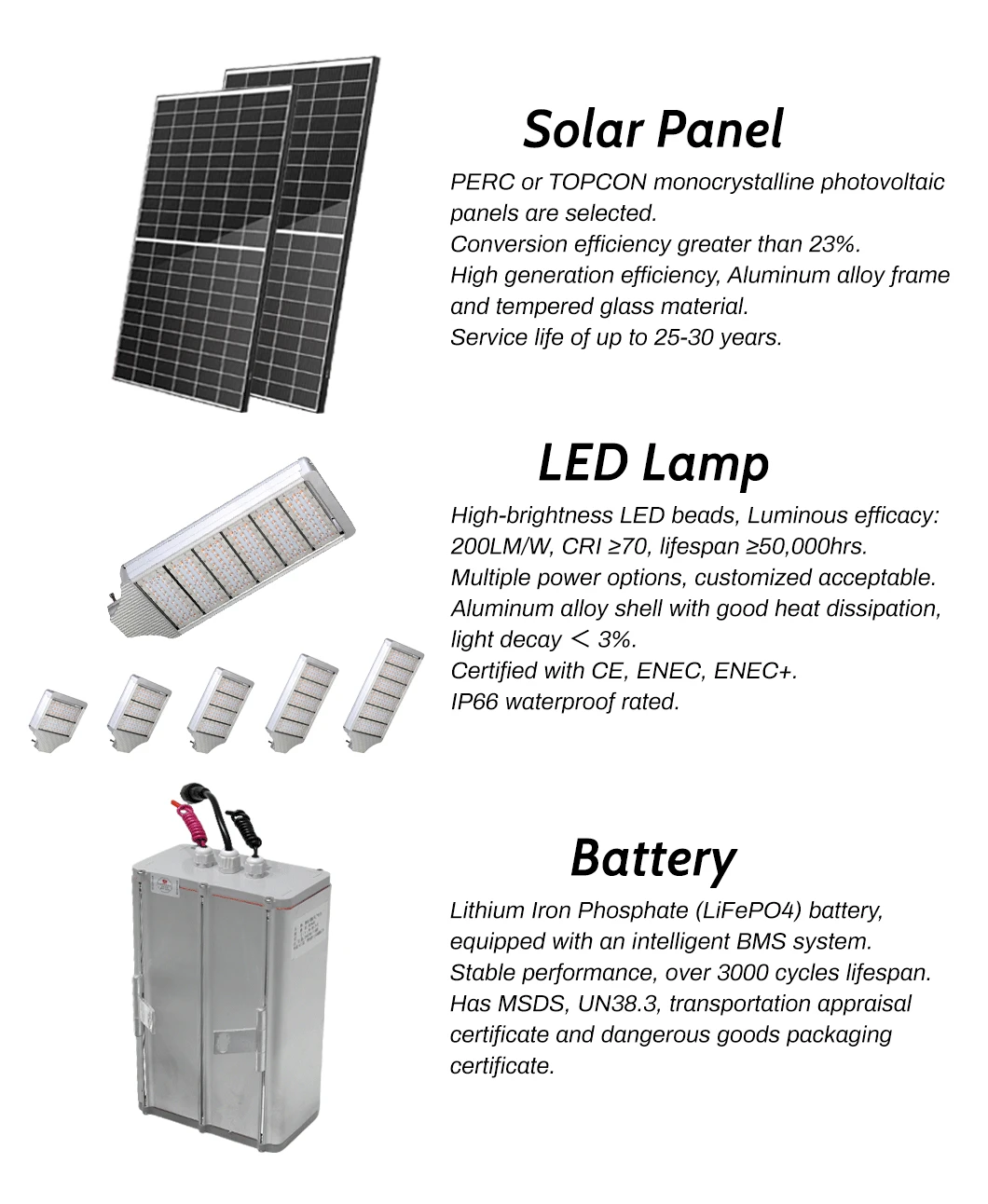

| solar panel | Power: 1 2 0 W Operation Voltage : 1 8 V Operation Current :6 . 67 A Open circuit voltage: 2 2 V Short circuit current: 6 . 7 5 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
Power: 1 2 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 6 . 67 A Open circuit voltage: 2 2 V Short circuit current: 6 . 7 5 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
Power: 1 5 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 8 . 4 A Open circuit voltage: 2 2 V Short circuit current: 8 . 8 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
Power: 2 0 0 W* 2 PCS Operation Voltage : 1 8 V Operation Current : 1 1 . 1 2 A Open circuit voltage: 2 2 V Short circuit current: 1 1 . 4 6 A Material Type: Mono Crystalline Silicon Eficiency of solar cells: 1 8 % |
| Option 1: Gel Battery | Rated Capacity: 1 0 0 AH Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
Rated Capacity: 1 0 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
Rated Capacity: 1 2 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
Rated Capacity: 1 5 0 AH* 2 PCS Rated Voltage: 1 2 V Deep Cycle Maintenance Free |
| Option 2: Lithium Battery | Rated Capacity: 7 2 AH Rated Voltage:12 . 8V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
Rated Capacity: 7 2 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
Rated Capacity: 8 4 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |
Rated Capacity: 1 0 2 AH Rated Voltage:25 . 6V Deep Cycle: 2 5 0 0 times Maintenance Free Type: LiFePO4 18 65 0 / 32 65 0 |

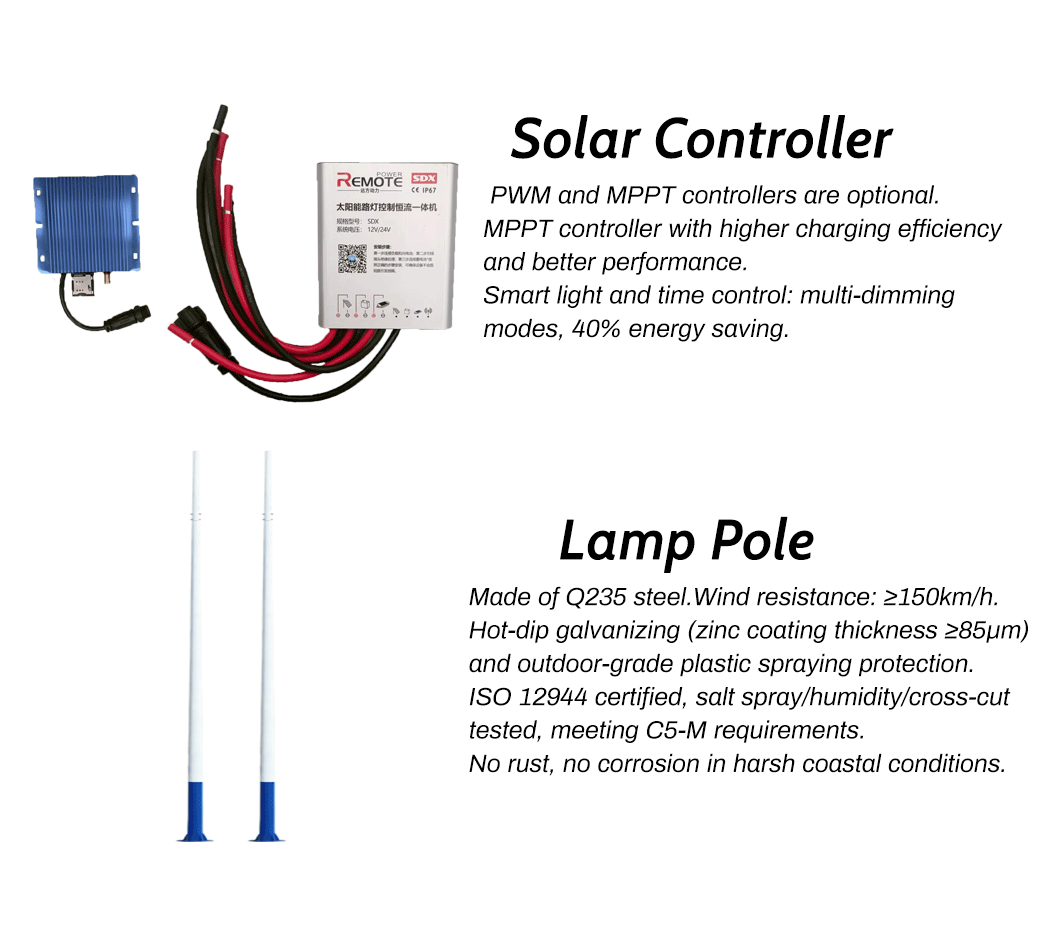

| Solar Controller | Rated Voltage: 1 2 V/ 2 4 V Rated Current: 1 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection |
Rated Voltage: 1 2 V/ 2 4 V Rated Current: 1 5 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection |
Rated Voltage: 1 2 V/ 2 4 V Rated Current: 2 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse - connection |
Rated Voltage: 1 2 V/ 2 4 V Rated Current: 2 0 A Automatic Light and Time Control Over- Charging / Discharging Protection Reverse connection |
| Street Light pole | Height: 6 m Top/ Bottom Diameter: 7 0 / 1 4 0 mm ; Thickness: 3 . 0mm Flange: 240*240*12 mm Hot dip galvanized pole with powder coating |
Height: 8 m Top/ Bottom Diameter: 8 0 / 1 6 0 mm ; Thickness: 3 . 5mm Flange: 300*300*14 mm Hot dip galvanized pole with powder coating |
Height: 1 0 m Top/ Bottom Diameter: 9 0 / 1 9 0 mm ; Thickness: 4 . 0mm Flange: 350*350*18 mm Hot dip galvanized pole with powder coating |
Height: 1 2 m Top/ Bottom Diameter: 1 0 0 / 2 1 0 mm ; Thickness: 4 . 5mm Flange: 40 0* 40 0 *2 0 mm Hot dip galvanized pole with powder coating |
| Anchor Bolt | J bolt : M1 6 Number of J bolt: 4 pcs Length of J bolt: 5 0 0 mm ( hot galvanized J bolt available) |
J bolt : M1 8 Number of J bolt: 4 pcs Length of J bolt: 7 0 0 mm ( hot galvanized J bolt available) |
J bolt : M1 8 Number of J bolt: 4 pcs Length of J bolt: 9 0 0 mm ( hot galvanized J bolt available) |
J bolt : M2 0 Number of J bolt: 4 pcs Length of J bolt: 1 1 0 0 mm ( hot galvanized J bolt available) |
| RVV 2*2.5mm² | RVV 2*2.5mm² | RVV 2*2.5mm² | RVV 2*2.5mm² |
Why Choose Edobo Solar Street Lights?
Edobo focuses on high-quality solar lighting solutions, providing both integrated and split solar street lights, with single-arm and double-arm styles to meet different project needs. All products have passed CE, ENEC, ENEC+ international safety certifications, and have C5-M anti-corrosion certification, which is specially optimized for African climate and application scenarios. With high-efficiency solar panels, long-life batteries and intelligent control systems, Edobo solar street lights maximize energy efficiency while ensuring stable lighting, making them the first choice for road, community, park and coastal lighting projects in Africa.
Warranty & After-Sales Support
Whole Lamp Warranty: 2 years (covers manufacturing defects and performance issues).
Lithium Battery Warranty: 5 years (free replacement if capacity drops below 80% within 5 years).
Solar Panel Warranty: 25 years (guarantees 80% conversion efficiency after 25 years of use).
24/7 Technical Support: Our global team provides remote installation guidance and troubleshooting via email, phone, or live chat, with a response time of less than 12 hours. Bulk buyers qualify for on-site installation services.
