PV Generator Solar Energy System With Battery

When designing a home solar diagram, it is important to consider the size of your home, your energy needs, and your budget. The number of solar panels and batteries required will depend on these factors. Additionally, you may need to consult with a professional installer to determine the ideal location for your panels, as well as any necessary permits or regulations.

Send Inquiry

Description

Technical Parameters

Home solar diagram for solar power system

PV generator solar energy system with battery

Features:

A home solar diagram for a solar power system is an essential tool for understanding how solar energy can power your home. With rising energy costs and global concerns over the environment, more and more people are turning to solar power as a way to reduce their carbon footprint and save money on their electricity bills.

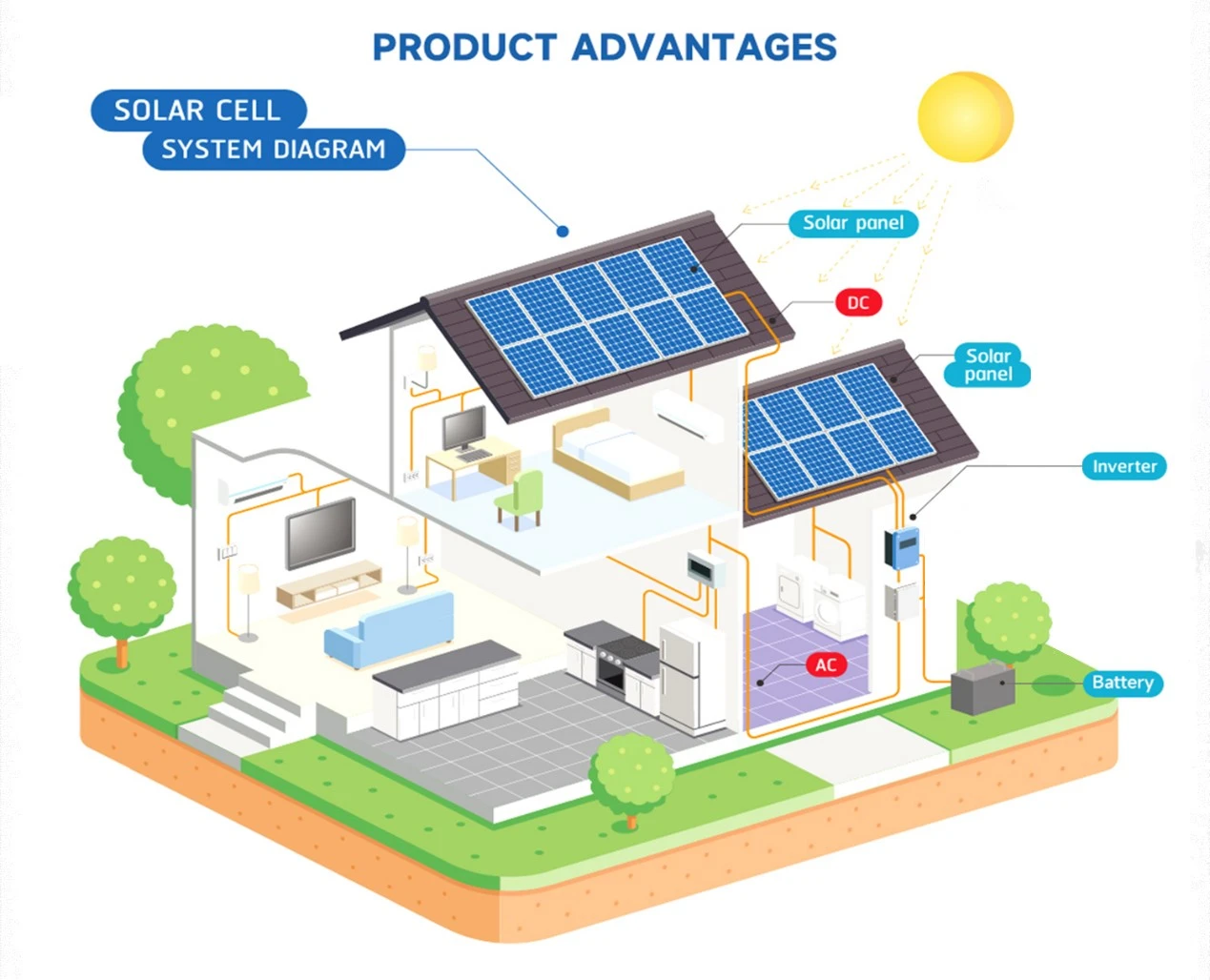

A home solar diagram is a visual representation of the components needed to create a solar power system for your home. The diagram typically includes solar panels, an inverter, batteries, and a charge controller.

The solar panels are the most visible component of a solar power system, as they are the devices that convert sunlight into electricity. The inverter is used to convert the DC electricity produced by the panels into AC electricity, which can be used to power lights, appliances, and other electronics in your home. The batteries are used to store excess energy produced during the day, so it can be used at night or during periods of low sunlight. Finally, the charge controller regulates the flow of electricity between the panels and batteries, to prevent overcharging and ensure optimal performance.

PV generator solar energy system with battery
