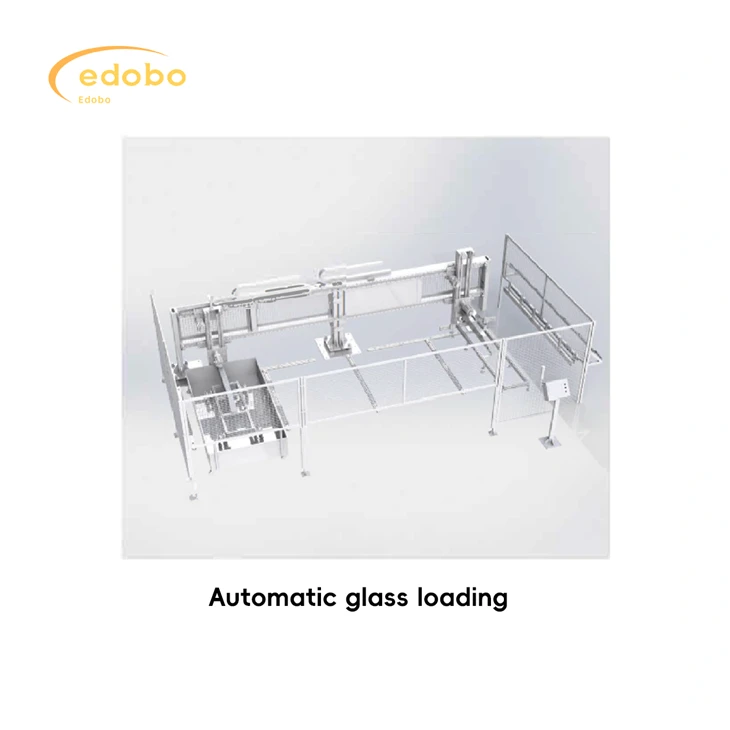

Auto Glass Loading Machine For Solar Panel Production Line
Description
Technical Parameters
Edobo Solar offers a complete Solar Panel Production Line equipped with advanced Laminating Machines and Series Welding Machines to ensure efficient, high-quality production of solar modules.
This production line is designed for seamless integration of automation, delivering superior performance and precision in solar panel manufacturing.
High-Precision Welding: Automatic series welding ensures accurate connections between solar cells, forming the panel's electrical circuit while maintaining minimal thermal stress.
Fast and Reliable: With advanced soldering technology, the series welding machine guarantees fast and efficient welding, reducing production time while ensuring high conductivity and durability.
Automated Process: Fully automated welding process minimizes human intervention, improving the consistency and quality of the solar panels produced.

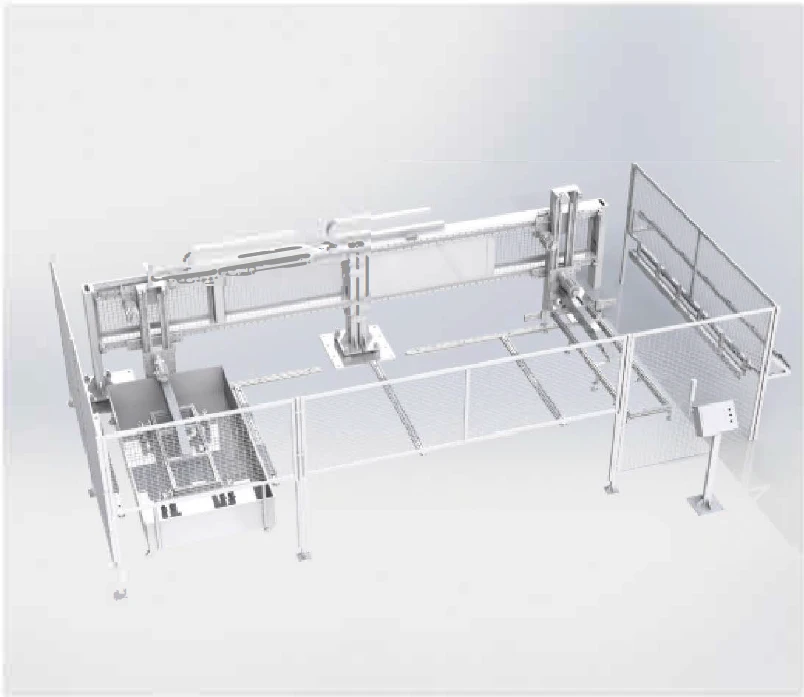

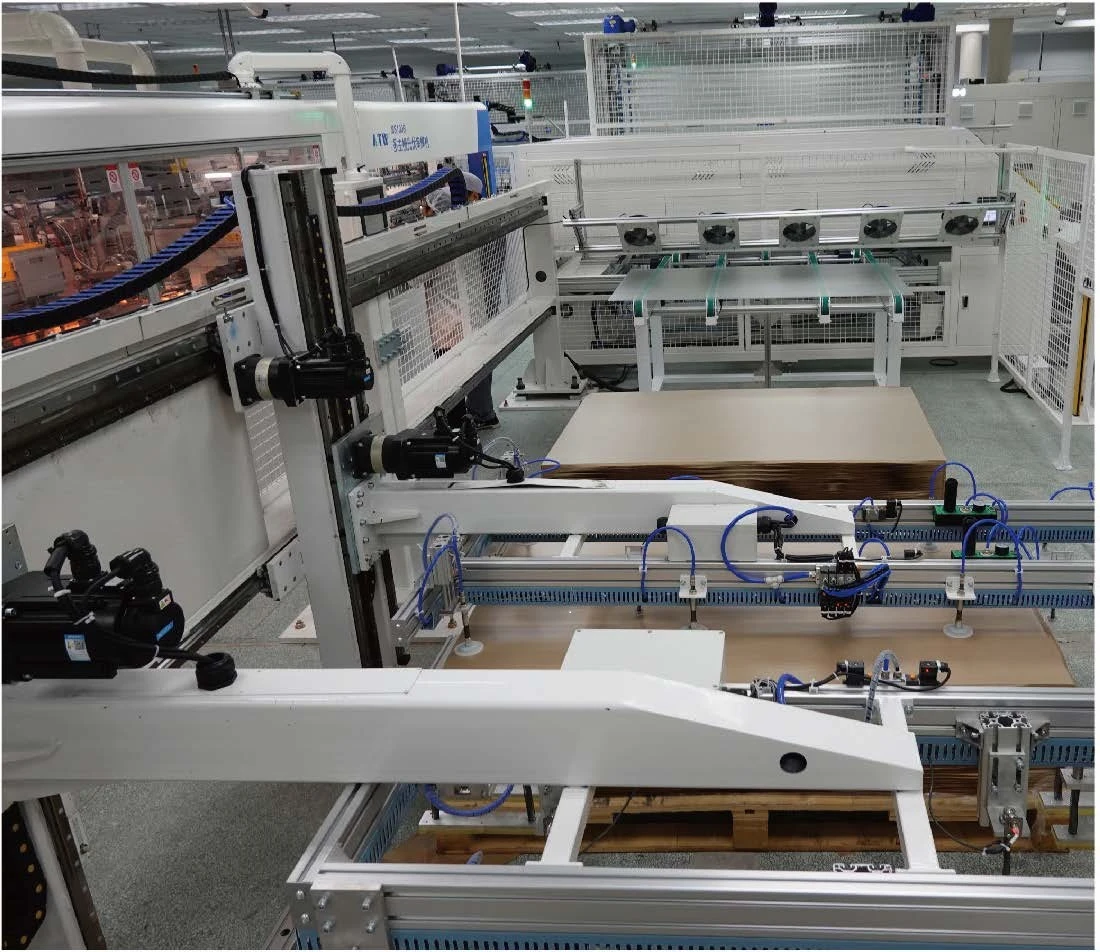

1. Lift the glass from the glass trailer and place it on the assembly line
2. The machine includes two glass storage stations and one paper storage station.
3. The glass suction robot arm places the glass onto the assembly line, while the paper picking robot arm removes the paper from the glass.
4. The machine is driven by a servo motor, and the suction cup sucks the glass to the designated position.
5. The upper glass robotic arm is a cantilever structure, and the paper picking robotic arm is a cantilever structure.
1. This machine adopts a steel structure, welded frame body, high strength, reliable and firm installation.
2. The suction cup of the glass carrier is made of polyurethane material, and there are no imprints during the loading process
3. The servo motor is precise and operates stably.
4. The machine is equipped with a safety fence to ensure the safety of operation.
5. Reduce the uncertainty of installation by operators and increase production capacity.
6. This machine is fully automatic and does not require manual intervention.
| capacity | 100MW | 300MW | 500MW |
| rhythm | 30S | 22S | 22S |
| Number of workers | 15-20 | 20-25 | 20-27 |
| Factory size | 3000m² | 5000m² | 7500m² |
| pv powers | 500w-730w | 500w-730w | 500w-730w |
Edobo Company is a leader in creating solar panel production lines. With 15 years of research and development expertise, we have pioneered cutting-edge technologies and processes to guarantee top-quality and highly efficient production lines. Our skilled team is dedicated to offering innovative solutions for the solar energy sector, enabling our customers to reach production targets of 100MW, 300MW, or 500MW, thereby generating substantial profits.
Why Choose Edobo Solar's Solar Panel Production Line?
High Efficiency: Automated machines, from series welding to lamination, ensure fast and consistent production, optimizing both time and resources.
Scalability: The production line is designed for flexibility and can be scaled to accommodate various production capacities, whether for small businesses or large-scale manufacturers.
Superior Quality Control: Advanced quality assurance systems ensure that each panel meets international standards for performance and durability.
Comprehensive Support: Edobo Solar provides full support, from installation and training to maintenance, ensuring smooth operations and maximized productivity.
