Function and Introduction

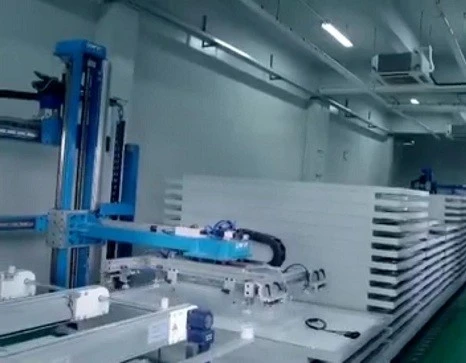

The whole equipment includes chain plate curing line and Up and down handler.
The key function is used to keep modules constant temperature and stacking, save space.
1. Modules moving.
2. Put module in vicarious position.
3. The stacking height of the module is 1450 mm(29 modules of 50 mm ) above the surface of the curving machine.
4.The fixture of the module is made of aluminum frame.
Main Parameter
Module Format：Length(1580-2000)mm×Width(800-1000)mm
Cycle time：＜33s
Max Capacity：＞2618/day
Online Operator：none
Weight：around 1200kg
Rated power(kw)：6.26KW
Pressure(MPa)：0.6-0.8MPa
Connection Format：Φ12
Dimension(LXWXH)：4200mmx2070mmx2550mm
Advantage

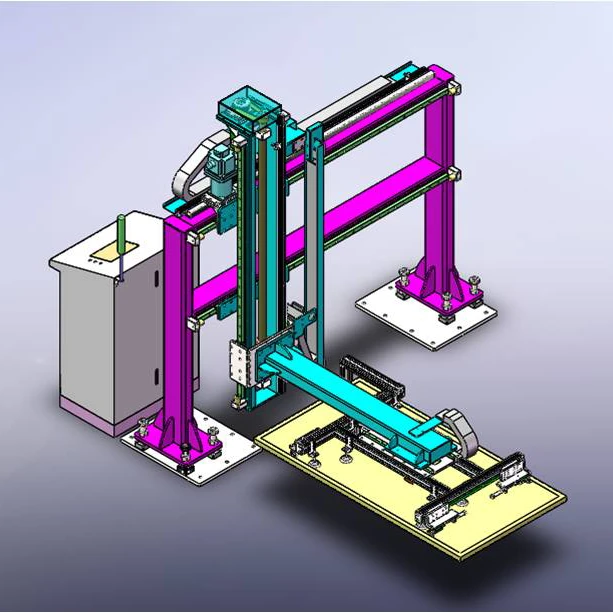

1.The machine uses pinion and rack transmission mechanism driven by servo motor, and guided by linear rail, with advantages such as precise positioning and stable running.
2. The machine is equipped with safety fence to ensure the safety of operation.
3. The fixture of the module frame is safe, reliable and leave no scratch.
4.The machine is full-automatic requiring no human interference.
5.User-friendly interface for operating and programming.
|
