Function and Introduction

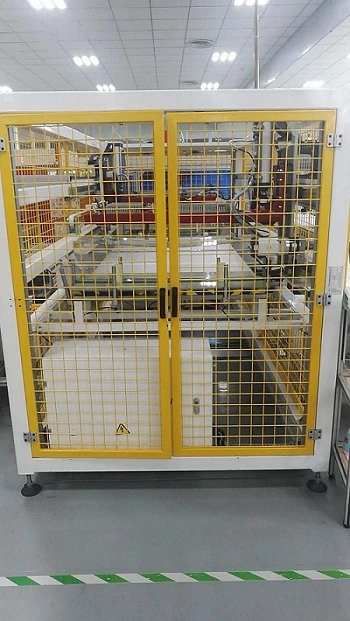

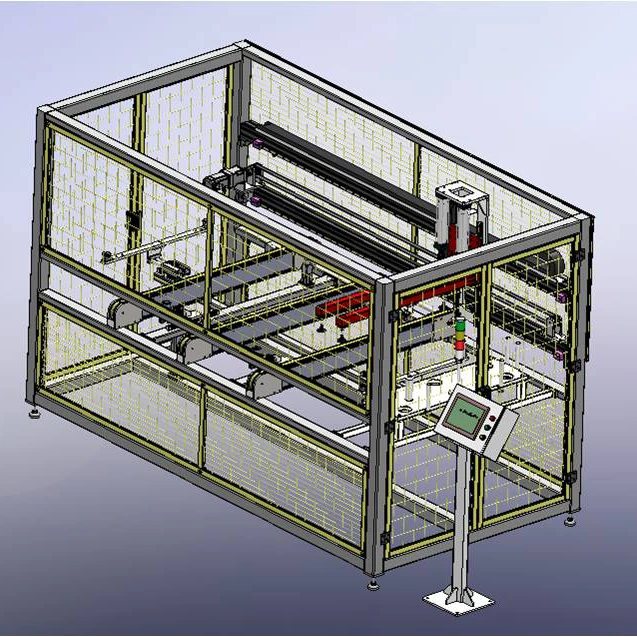

Automatic template loading online, which can locate cells and bussing precisely.
1.long side of solar module in and out;
2.Servo motor control movement which will guarantee accuracy.
3.Climbing mechanism by Air cylinder manage the module suction.
Main Parameter
1.Module format:(1580-2000)mm*(800-1000)mm
2.Cycle time: <27s
3.Max capacity:3200 /day
4.Weight: 700 kg
5.Rated power: 0.99 kw
6.Air consumption:550 L/min
7.Pressure:0.6-0.8 MPa
8.Connection format:Φ12
9.Dimension(LXWXH): 1550mm*3000mm*1900mm
10.Operator: None.
Advantage
1. The machine replaces operator and improve production efficiency.
2. The machine installed by servo motor is precise than operator.
3.The machine is full-automatic requiring no human interference.
|
