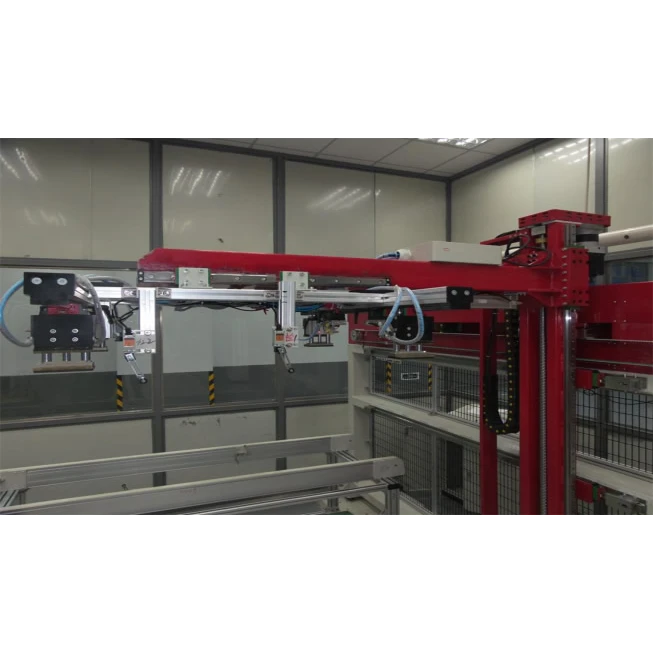

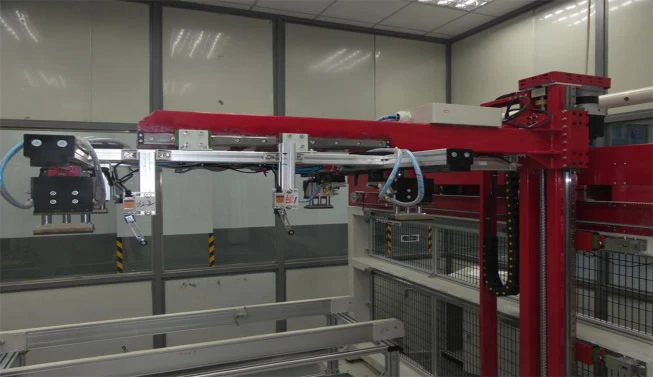

Automatic Sorting

Function and Introduction
1.The machine is made by steel welding, high strength, stable transmission.
2.We use servo motor for drive, sucking disc for modules moving to right position.
3.There are safety fence outside for protecting.

Main Parameter
Module format:(1580-2000)mm*(800-1000)mm
Cycle time：<25s
Max capacity：＞2400/day,
Operator online：0
Rated power(kw)：4.0kw,
Pressure(MPa)：0.6MPa ,
Dimension(LXWXH)：2400mmx1700mmx1600m,

Advantage
1. Servo motor will guarantee accuracy.
2. It is efficient to distinguish different power modules and reduce labor cost.
