Function and Introduction

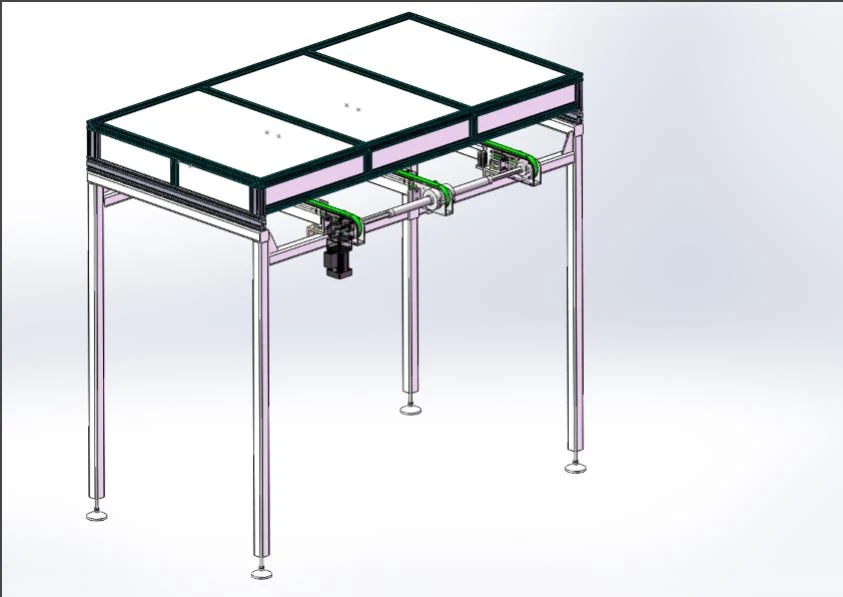

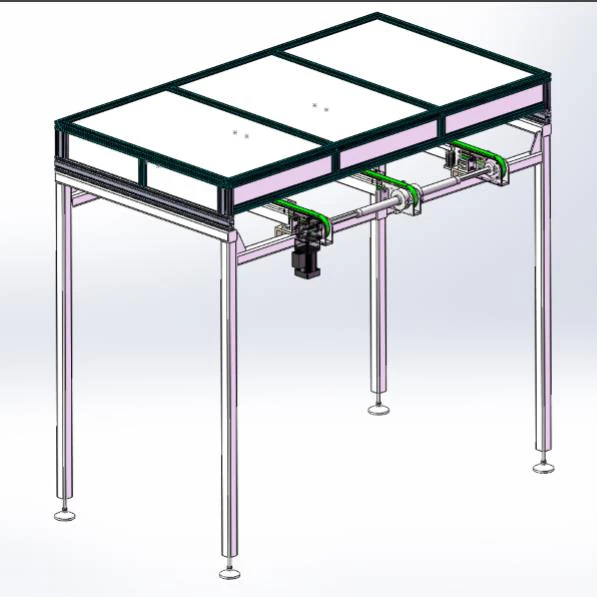

Module inspection before laminator, operator will check there are foreign matter and excursion or not.
1. The equipment install Led for lighting, two elevators on the front and back.
2. When module on the right position , air cylinder will push the module. Operator can distinguish the cells clearly.
3. The equipment adopt standard motor(frequency converting control).
Main parameter
Module format：(1580-2000)mm×(800-1000)mm ,
Cycle time：<30s,
Max capacity：＞2800/day,
Operator online：1,
Rated power(kw)：3.4kw,
Pressure(MPa)：0.7MPa+0.1 ,
Dimension(LXWXH)：2200mmx1600mmx2068mm,
Environmental requirement：Temperature 5-50℃.
Humidity＜75%.
Advantage
1. It will reduce defective products by high visual inspection.
2. Transmission is smooth and steady.
3. The equipment only need one operator ( module will be raise from ground 1750mm distance), save labor cost.
|
