Function and introduction
1.Long edge forward
2.Glass centering
3.The dimension of the machine is 1500 * 1500 * 990 with three transmission ways which use T10 green cloth synchronous belt.

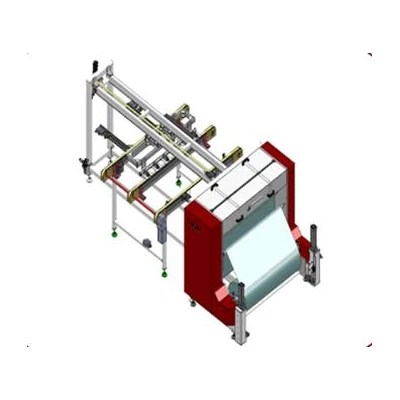

4.EVA automatic cutting
5.Automatic laying of EVA
6.Dust shield is equipped for EVA
7.The max diameter of the EVA roll is 720mm
8.The permitting EVA diameter： 3 inches (76mm)
Main parameter
Module format:(1580-2000)mm*(800-1000)mm
Cycle time:＜25 s
Max capacity:＞3400 /day
Operators online: none
Weight: about 1000 kg
Rated power: 3.9 kw
Air consumption:38 L/min
Pressure: 0.7MPa+0.1
Connection format:Φ12
Dimension (LXWXH): 3700mmx1500mmx1400mm
Environmental requirement: temperature：18-30℃,humidity＜75% without dew formation.
Advantage
1.The machine uses pinion and rack transmission mechanism driven by servo motor, and guided by linear rail, with advantages such as precise positioning and stable running.
2.The machine is equipped with EVA loading tool for operation.
3.The stretching speed of the EVA can be adjusted automatically for stable running.
4.The EVA is cut by an integral machine to ensure a flat and neat cutting edge.
5.The precision of the EVA cutting is±(0.5+0.15%L) and the diagonal error is ±1.5 mm.
6.The machine has automatic aligning function for EVA putting and the aligning scope is ±2 mm.
7. Safety shield and dust shield are equipped to the main part of the equipment.
|
