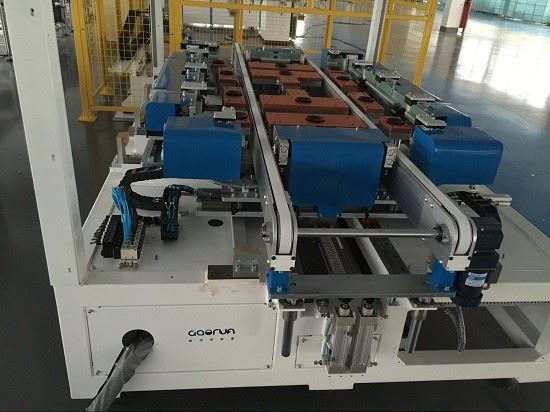

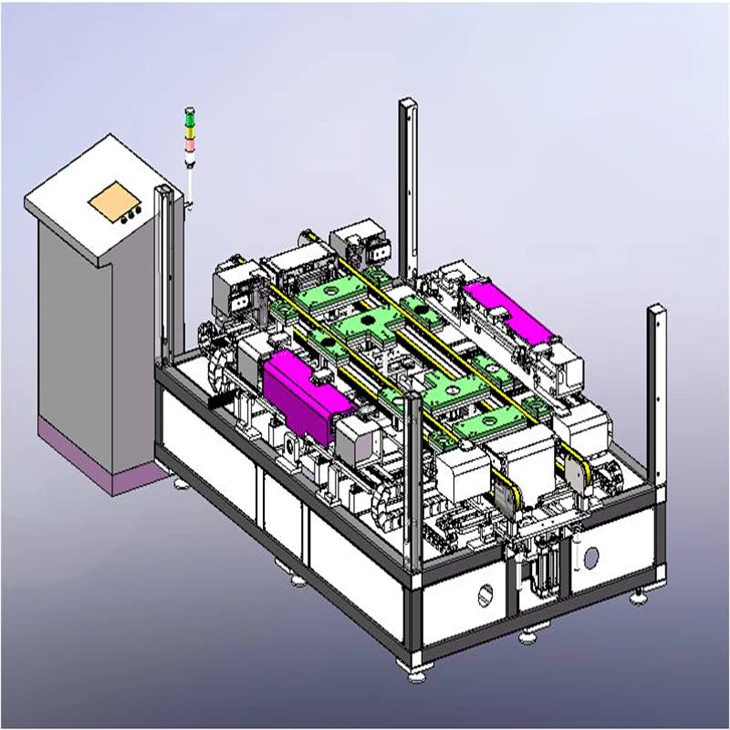

Function and Introduction
Online manually loading profile in the equipment.
When modules on the right position and frame is ready, air cylinder will reform and clamp. Servo motor will install the frame at the same time.
1.Long/short edge forward.
2.Conveying mode: Synchronous belt conveying.
3.Conveying Height: 960±50mm.
4.Length and Width is adjustable according to module dimension, adopting fast locking fixture, rapidly adjust in order to meet different modules.
7.Control Mode: motor control + Servo drive.
8.Operational Mode: Automatic/Manual.
9.HMI: Chinese + touchscreen.
Main Parameter
Applicable module dimension:2000mm >long edge >150mm, 1000mm>Short edge 800mm, weight less than 30kg.
Cycle time:＜35s
Max capacity:≥2400/day
Operators online: 2
Rated power: 3.0kw
Connection format:Φ12
Dimension (LXWXH):2779mm*2249mm*950mm
Advantage
1.The equipment choose servo motor which has advantage such like accurate during moving and stable.
2.Equipment consists of balance mechanism structure, 12 pairs of suction cups for balance.
3.Suction cups are made of import silica gel materials, will not leave mark on the surface.
4.12 pairs of suction cups integrated with one piece, adjustment adopts hand rocker structure, rapidly, simple, convenient and reliable.
5.Equipment consists of straightening mechanism.
6.Adjustment of long and short edge adopts fast locking structure, rapidly, simple,convenient and reliable.
7.Framing force for short edge is up to 2.2 tons.
8. Accuracy: ±1mm for long and short edges, diagonal ≤1.5mm.
9. Even overflow: qualified rate ＞98%.
|
