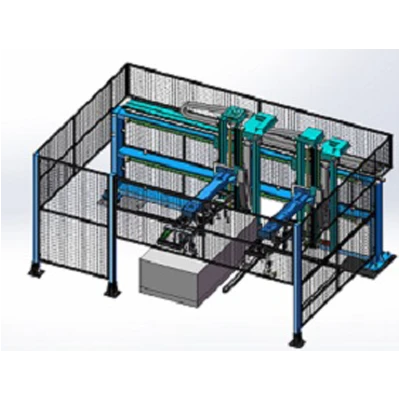

Function and introduction
Seizing the glass and putting it to the transmission line.
1.Glass loading system is consisted of glass moving robot arm and paper picking robot arm.
2.The machine contains two glass storage stations and a paper storage station.
3.Glass moving robot arm put glass to transmission line, at the same time paper picking robot arm remove the paper.
4.The machine driven by servo motor, the sucker draws glass to appointed station.
5.Glass loading robot arm has cantilever structure and the paper picking robot arm is gantry structure.
Main parameter
Module format: (1580-2000)mm*(800-1000)mm
Cycle time :<35s
Max capacity: >2468/day
Operator online: none
Rated power: 8.26kw
Pressure: 0.7MPa+0.1
Input voltage：380V
Dimension: 4610mmx2780mmx2150mm
Advantage
1.The machine uses steel structure with welding frame body, high strength, reliability and fastness during loading.
2.The suction plate of glass carrier is made of polyurethane which will not make print to the glass during loading.
3.Servo motor is precise and stable running.
4.The machine is equipped with safety fence to ensure the safety of operation.
5.Reduce uncertainty of loading by operator, enhance output.
6.The machine is full- automatic requiring no human interference.
