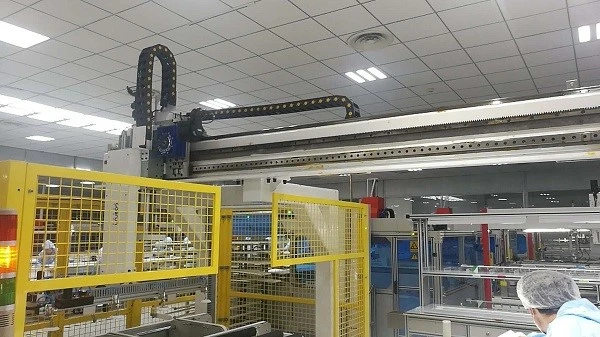

Equipment functions and introduction
1. Component growth in and out;
2. Transmission method: synchronous belt transmission;
3. Automatically grab the frame and place it on the framing machine;
4. The servo motor drives the synchronous belt to move, causing the gripper to move to the designated position for precise positioning;
5. The main structure of the equipment is made by square welding;

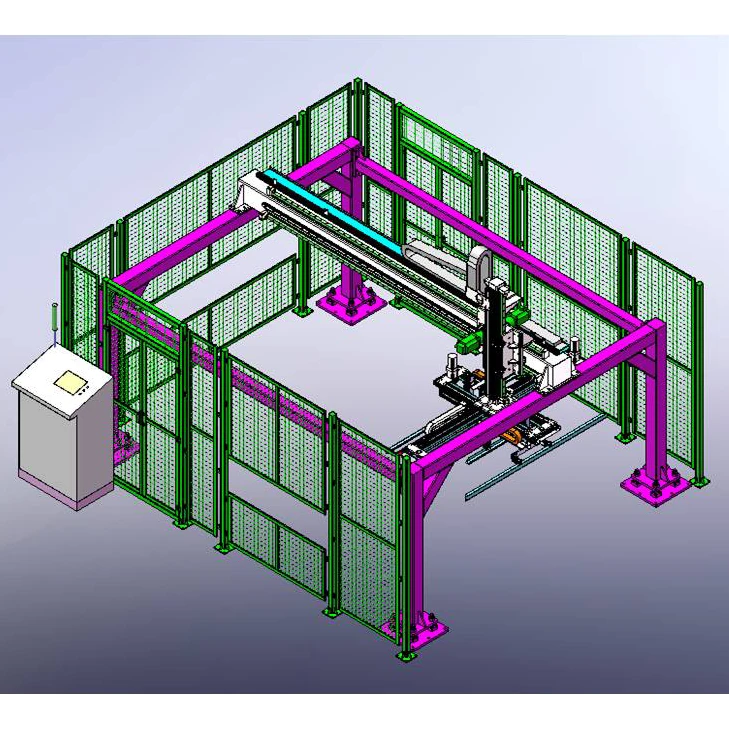

6. Multiple cylinder combinations for easy gripping;
7. The automatic framing robot arm has an L-shaped structure, with a shorter cantilever and more stable structure;
8. Control method: motion control+servo drive.
Main performance parameters of the equipment
Applicable component specifications: Compatible components include double glass components with a length of 1500mm-2000mm and a width range of 600mm-1000mm, as well as conventional components
Work rhythm: approximately 29 seconds
Maximum production capacity: approximately 2979 pieces per day
Online operator: None
Weight: approximately 2100kg
Rated power (KW): 5.62KW
Gas consumption (L/min): 10L/min
Pressure (MPa): 0.6-0.8MPa
Noise (dbA): ＜ 72dB
External dimensions (length x width x height): 4100mm x 4770mm x 2300mm (including protective mesh)
Advantages Introduction
1. The equipment is driven by a servo motor, driven by gears and racks, and guided by a linear guide rail, which has the advantages of precise positioning and smooth operation;
2. The entire machine is equipped with a safety fence, which provides safety protection;
3. The whole machine is equipped with power off and gas off protection;
4. The entire frame gripping process is completed by pneumatic control, which is efficient and convenient;
5. Equipment fully automatic control, no need for personnel intervention;
6. The programming interface is simple and user-friendly.
|
