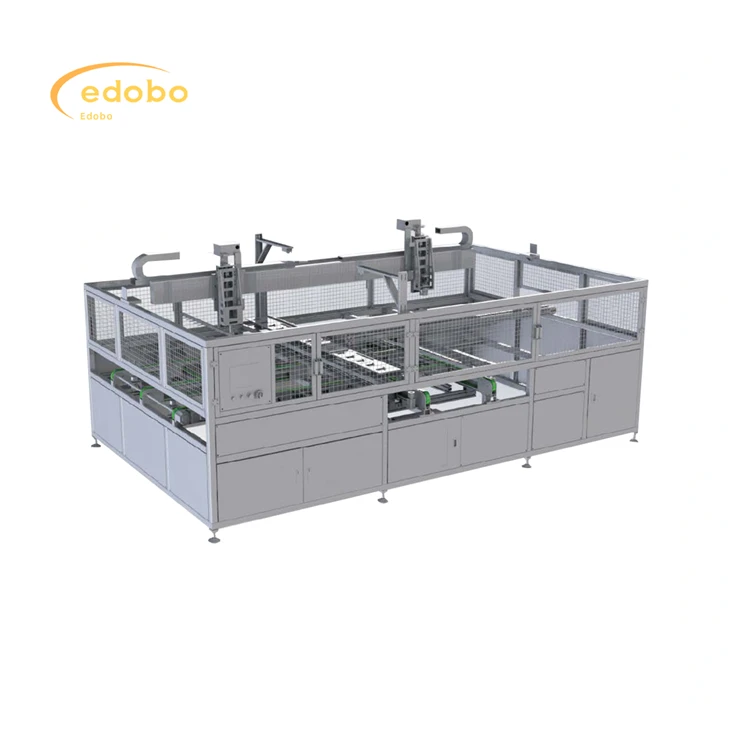

Solar Panel Auto Lay Up Machine For Production Line

Lay up (mechanical type)

The auto lay-up machine automates this process, aiming to increase speed, accuracy, and consistency compared to manual lay-up. It's a key piece of equipment for high-volume solar panel production.

The automatic lay-up machine (often called a "string lay-up machine" or "matrix lay-up machine") is responsible for precisely positioning the interconnected strings of solar cells onto the first layer of EVA film (which is typically already placed on the glass). It arranges the strings to form the complete cell matrix of the solar panel. Here's a breakdown:

Receiving Strings: The machine receives the strings of interconnected solar cells from the tabbing and stringing machine (or a buffer system).

Precise Positioning: The machine's primary function is to accurately position each string onto the EVA-covered glass, according to the pre-programmed panel design. This involves:

Spacing: Maintaining the correct spacing between the strings. This spacing is critical for electrical performance and to prevent short circuits.

Alignment: Ensuring that the strings are straight and parallel to each other.

Orientation: Placing the strings with the correct polarity (positive and negative ends aligned correctly).

Gentle Handling: The machine handles the fragile strings of cells very carefully to avoid damage (cracks, micro-cracks, or breakage).

Creating the Cell Matrix: The machine repeats this process for each string, building up the complete matrix of cells that will form the active area of the solar panel.

Preparation for Busbar Welding: The precisely positioned strings are now ready for the busbar welding machine, which will connect the strings together electrically.

Preparation for Lamination: After busbar welding, the complete assembly (glass, EVA, cell matrix, busbars, and second EVA layer/backsheet) is ready for lamination.

In essence, the lay-up machine transforms individual strings of cells into the organized, rectangular matrix that is the heart of the solar panel.

Automated Material Handling:

Loading and positioning the backsheet, EVA sheets, and front glass from their respective rolls or stacks.

Precise placement of the various components onto a conveyor or assembly table.

Handling of solar cell strings, often with robotic arms to avoid damage.

Precise Layer Positioning:

Ensuring accurate alignment of the backsheet, EVA sheets, cell strings, and front glass relative to each other.

Minimizing gaps or overlaps that could lead to defects.

Automated Cell String Placement:

Handling the delicate cell strings with care and placing them precisely on the bottom EVA sheet.

Often involving vision systems to ensure accuracy in cell string positioning.

Consistent Lay-Up Quality:

Ensuring uniform pressure and tension in the layered materials, especially with the EVA sheets, for even encapsulation.

Eliminating inconsistencies caused by manual handling.

Integration with Other Equipment:

Synchronizing with upstream processes (e.g., cell stringing) and downstream processes (e.g., lamination).

Feeding the assembled lay-up directly into the laminator or onto a conveyor.
