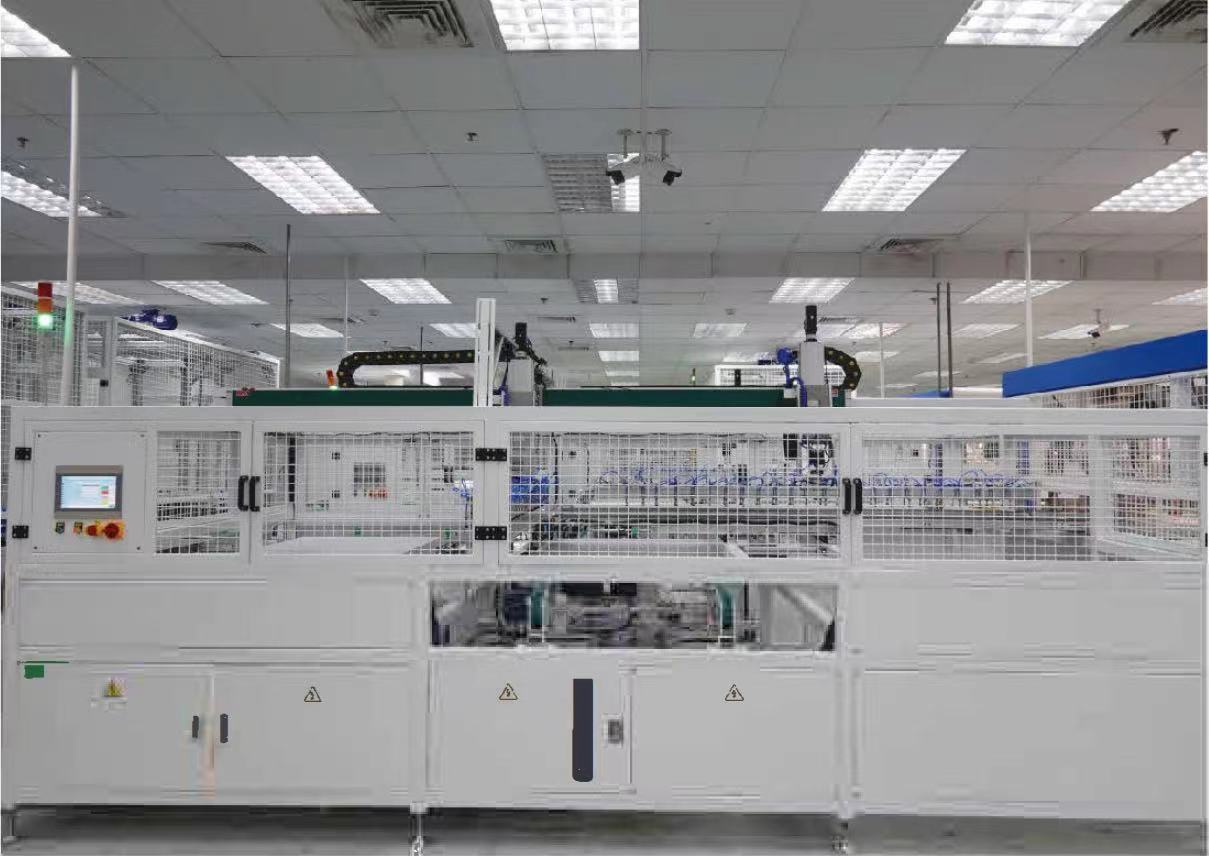

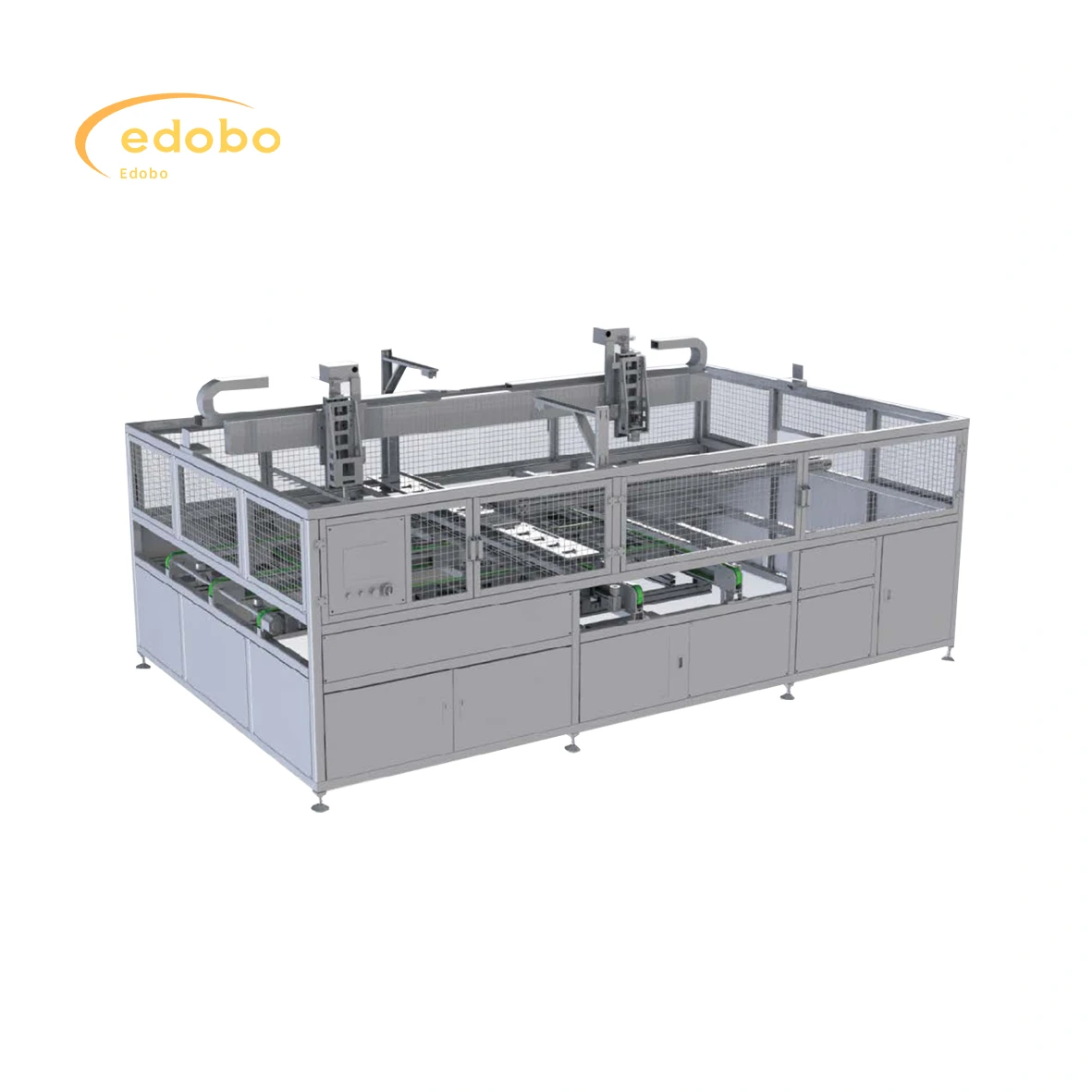

Solar Panels Production Lay Up (mechanical Type)

Lay up (mechanical type)

Automatic string-welded battery laying by a linear motor

♦ Applicable components: conventional, half sheet and double glass components within length 1640-2500mm & width950-1400mm
♦ Worki ng beat: 6 seconds/ string
♦ Maximum production capacity: 3,400 pcs / day
♦ Onli ne operator: 0
♦ Rated power (KW): 6KW
♦ Gas consumption (L/min): 60 L/min
♦ Pressure (MPa):0.6-0.BMPa
♦ Interface specification: 12
♦ Overall dimension (length*width*height): 4770mm*2840mm*2250mm
♦ weight:2850KG

1. The cell adopts CCD visual positioning, which has the advan­tages of high accuracy and stability;
2. The equipment can automatically receive, automatically layout and automatically export components, and layout is accurate positioning;
3. The suction cup is made of imported silicone material, which will not leave a mark on the surface of the battery;
4. Adopt the three-axis mechanical motion mode (rotating 180°);
5. The lateral movement adopts linear motor module, which has the advantages of fast movement speed, high repeated position­ing accuracy and stable performance, save the overall beat time;
6. Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
