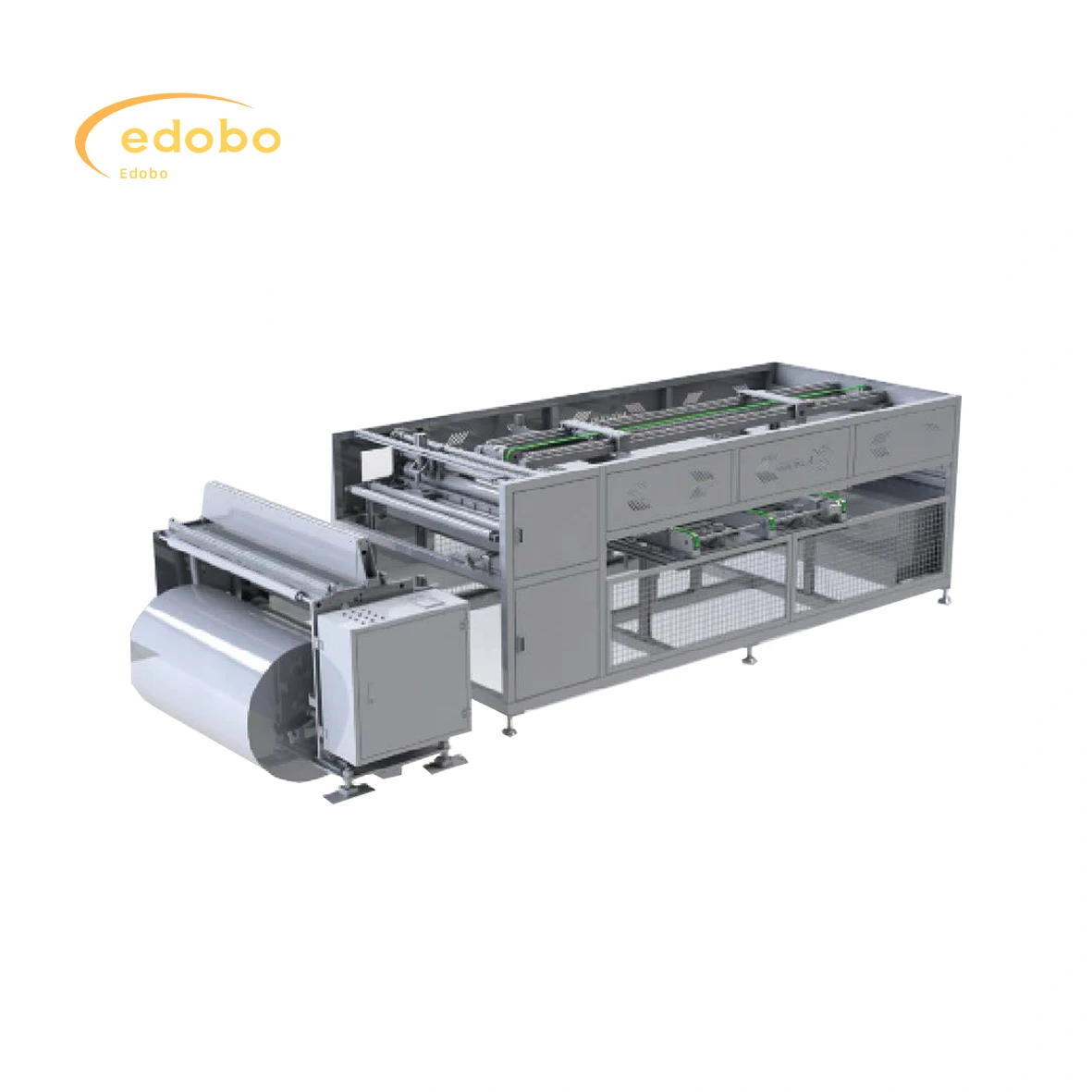

Solar Panels Production Line EVA TPT Cutting Machine

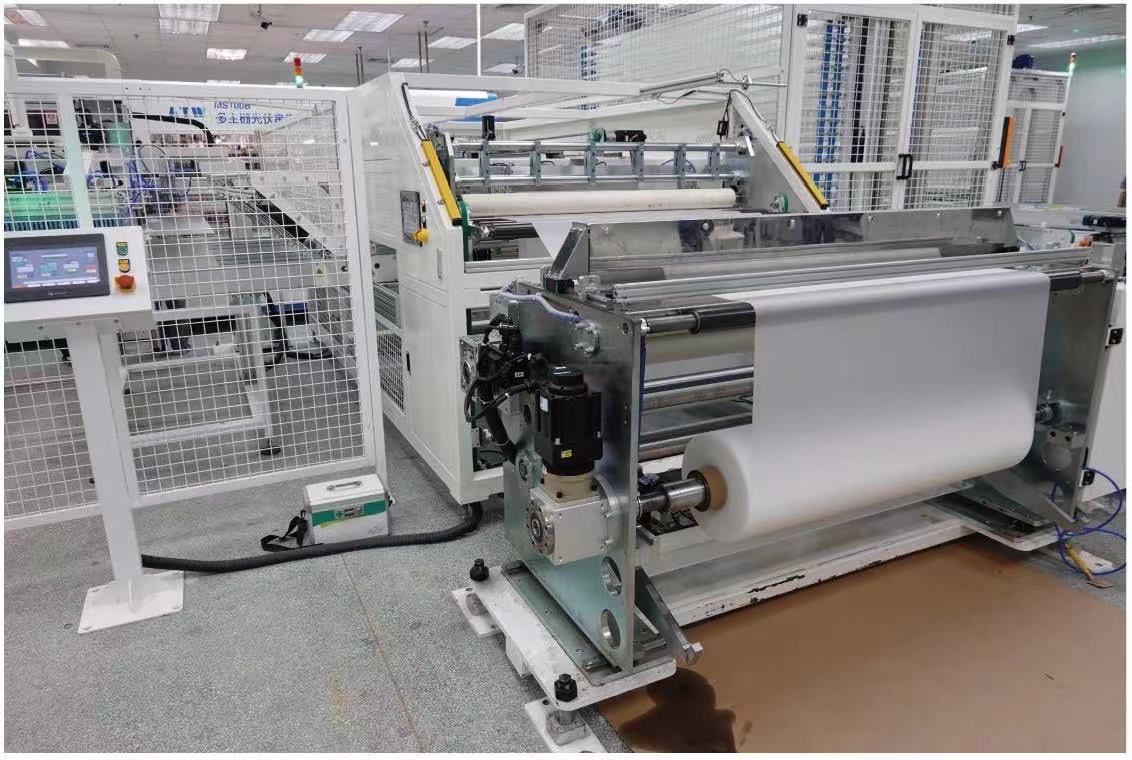

EVA TPT cutting machine

Auto-trim EVA / TPT for the assembly

♦ Applicable components: conventional and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 2,979 pcs / day
♦ Online operator: No
♦ Weight: about 2000 kg
♦ Rated power (KW): 4KW
♦ Gas consumption (L/min): 38 L/min
♦ Pressure (MPa):0.6-0.BMPa
♦ Interface specification: 12
♦ Noise (dbA): <72dbtai wudi,le zhefa fa zjenhfeusjo qoamre asjooi.jpvcarek cekjto
♦ Overall dimension(length*width* height): 5300 mm*2500mm*1500mm

1. The equipment is driven by a servo motor, with gear and rack drive and linear rail guide, which has the advantages of accurate position and smooth operation;
2. The equipment includes EVA feeding auxiliary carrier for employees;
3. The stretching speed of EVA material roll can be automatically adjusted according to the tension to ensure the stable operation of EVA stretching;
4. EVA cutting is the overall cutting type, to ensure that the incision is smooth and neat;
5. The EVA cutting accuracy is士(0.5 + 0.15%L), and the diagonal error of EVA after cutting is士 1.5mm after cutting;
6. EVA laying includes automatic correction function, and EVA range士 within 2mm;
7. The main parts of the equipment are equipped with safety protection cover and dust cover.
