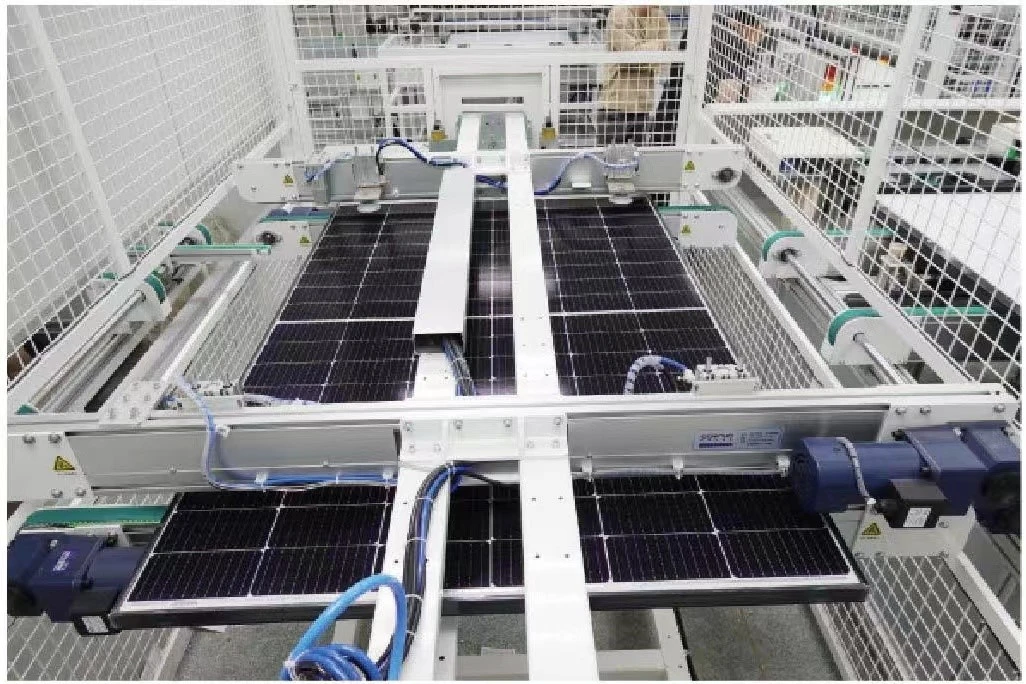

Solar Panels Production Line 180° Turn Over

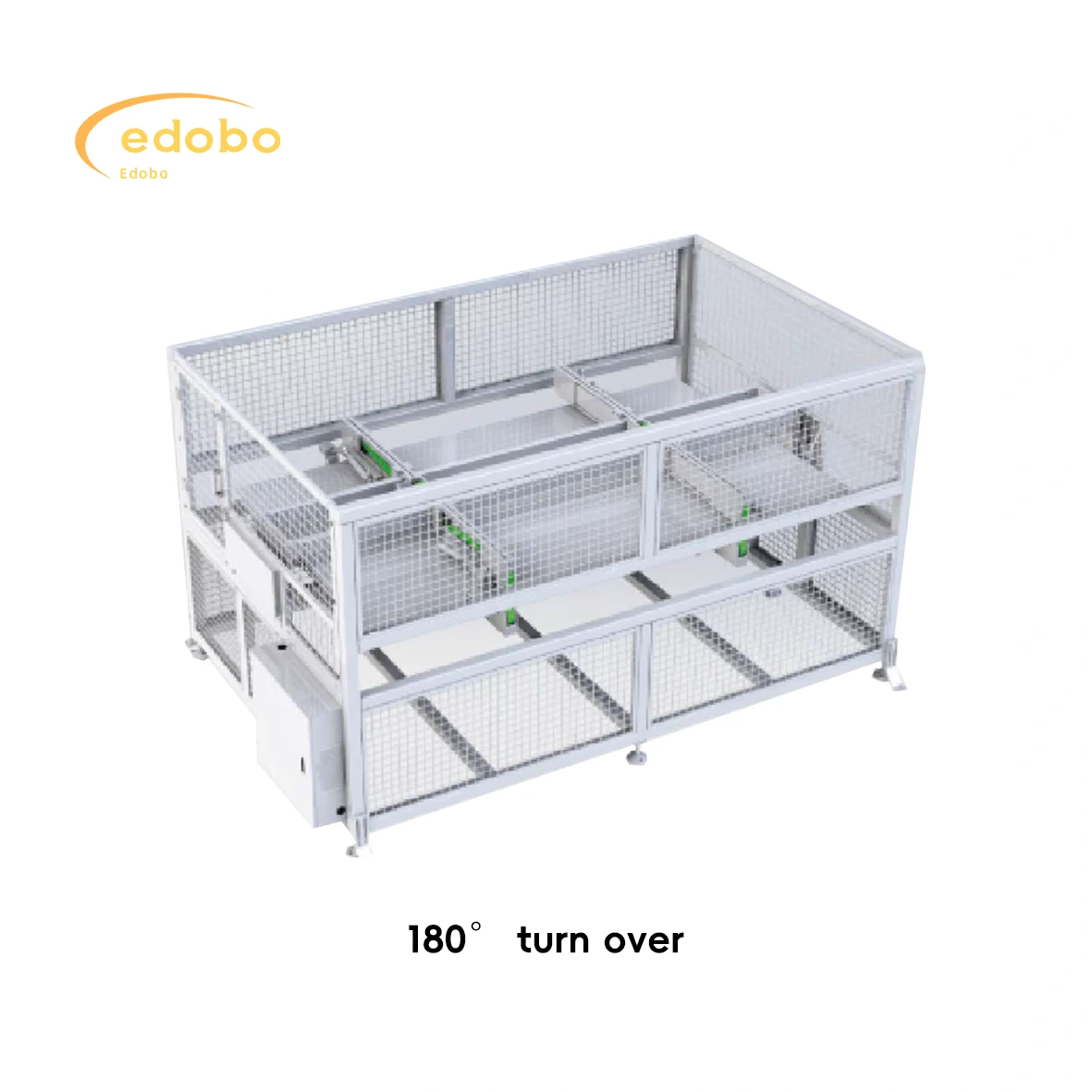

180° turn over：

Flip the assembly to facilitate the rear channel cleaning station.

♦ Applicable components: conventional and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 0 people
♦ Weight: about 1,200 k g
♦ Rated power (KW): 1 KW
♦ Pressure (MPa):0.6-0.BMPa
♦ Gas consumption (L/min):3.8L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 3300 mm*1900mm*1700mm

1. The equipment adopts steel structure welding frame, with high strength, and the whole machine is solid and reliable during transmission;
2. Position and clamp the components before flipping, and the components will not tremble during flipping;
3. Reduce the labor intensity, and can better maintain the production rhythm to ensure the production efficiency;
4. The flipping motor adopts large torque motor and frequency converter control, which has the advantages of smooth flipping, accurate and in place;
5. The whole machine is equipped with a safety fence, and has the safety protection function;
6. Automatic control of the equipment, and the operation process does not require personnel intervention.
