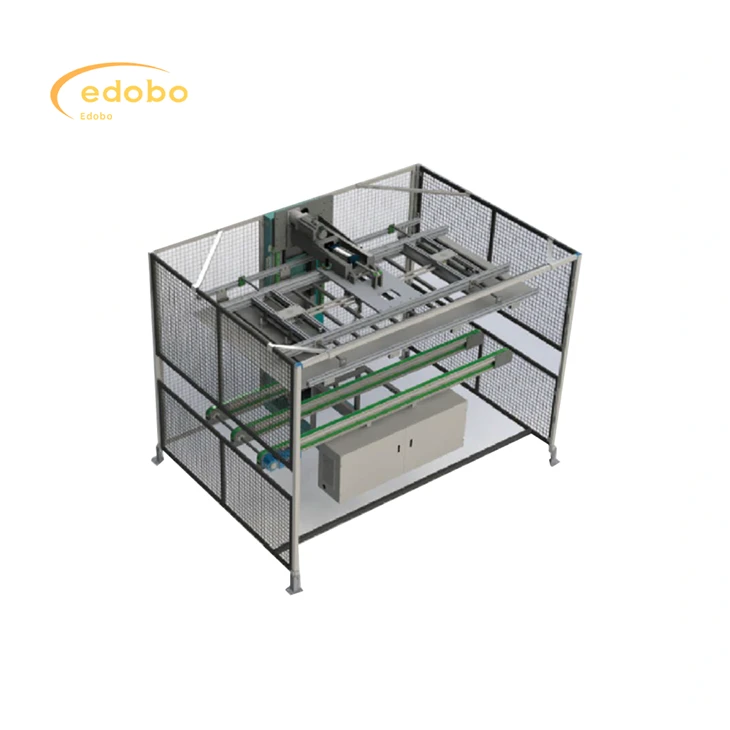

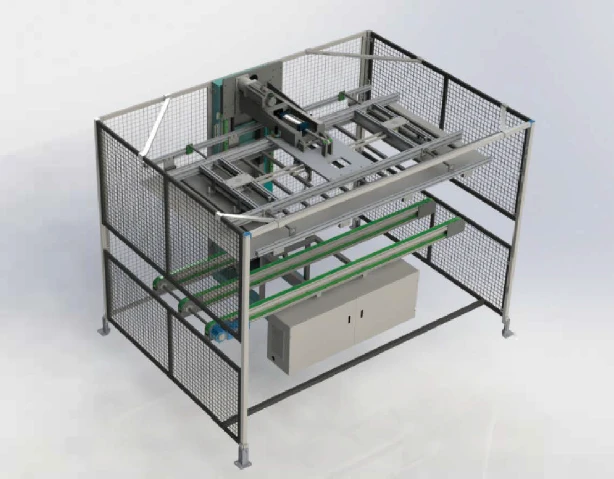

Solar Panels Production Line 90° Flip Inspection

90° flip inspection：

The equipment uses 12 sets of LED lamps on the back to detect hidden cracks and impurities inside the module.

♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 1 person
♦ Weight: approximately 1080kg
♦ Rated power (KW): 2KW
♦ Pressure (MPa):0.6-0.BMPa
♦ Gas consumption (L/min):3.8L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 2,900 mm*2100mm*2150mm

1. The equipment has the advantages of stable transmission and accuracy;
2. Before flipping over, the device contains the regulation function to accurately position the components;
3. When the component is in place, people can clearly identify the component battery through the cylinder jacking up and the upper LED

irradiation;
4. The flip mechanism adopts the motor driven chain structure, and the flip is firm and reliable
5. The equipment adopts steel structure welding frame, with high strength, and the whole machine is solid and reliable during transmission;
6. Include the manipulator limit mechanism after the flip is in place;
7. Reasonable equipment design structure, overall beauty.
