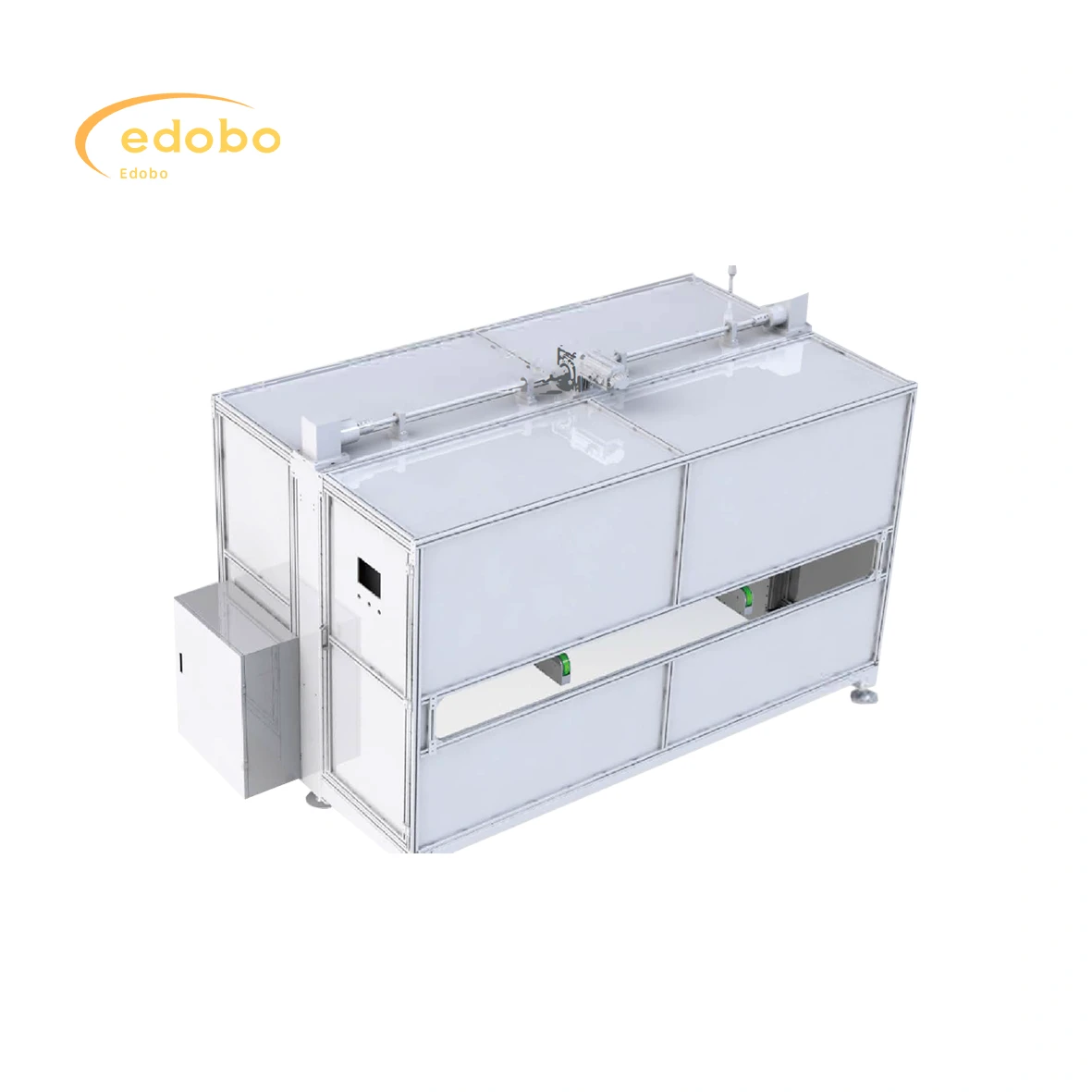

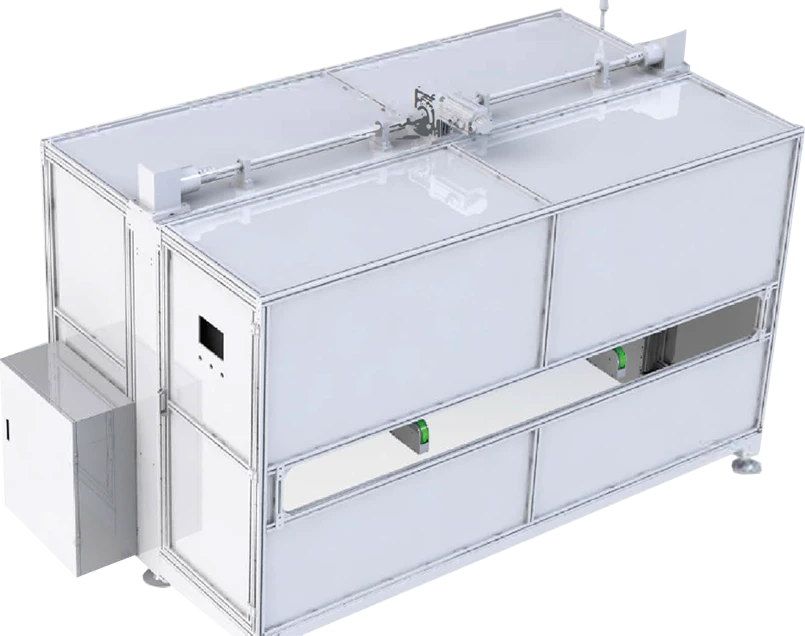

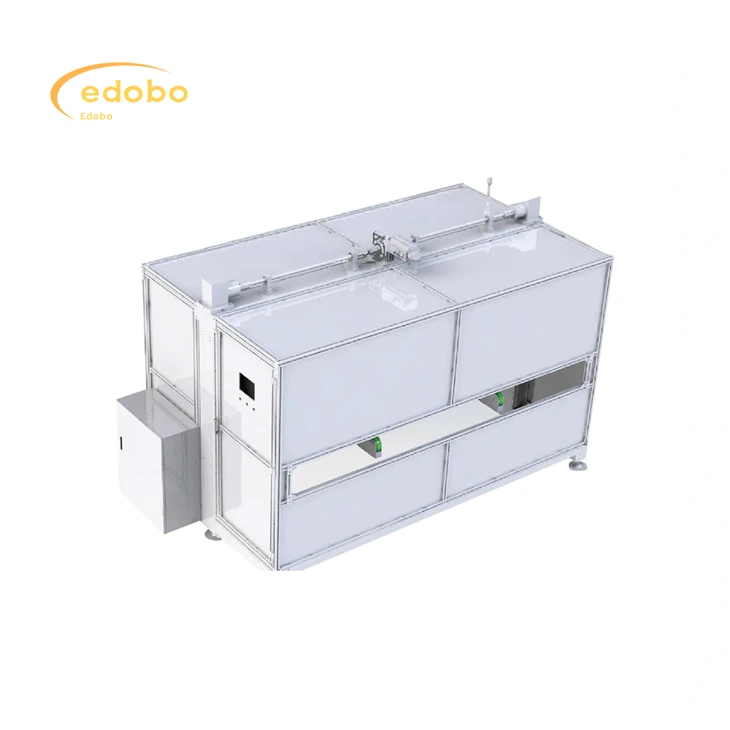

Solar Panels Production Line Lnline Standard Module Machine

lnline standard module machine

Store standard component versions for automatic calibration of IV testing.

♦ Applicable component specifications: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 0
♦ Weight approximately 1100 KG
♦ Rated power (KW): 2KW
♦ Pressure (MPa):0.6-0.BMPa
♦ Gas consumption (L/min):3.8l/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 3150 mm*1800mm*1850mm

1. Prevent damage of standard board and the IV test power of university calibration
2. Automatic control of the equipment and no personnel intervention.
3. The whole machine is equipped with a safety fence, with a safety protection function.
