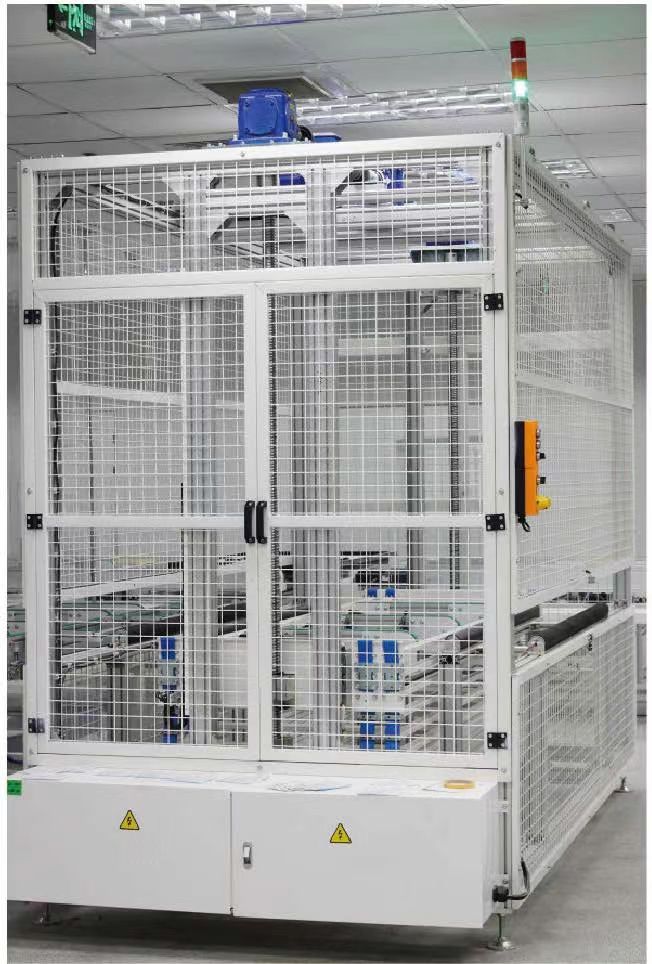

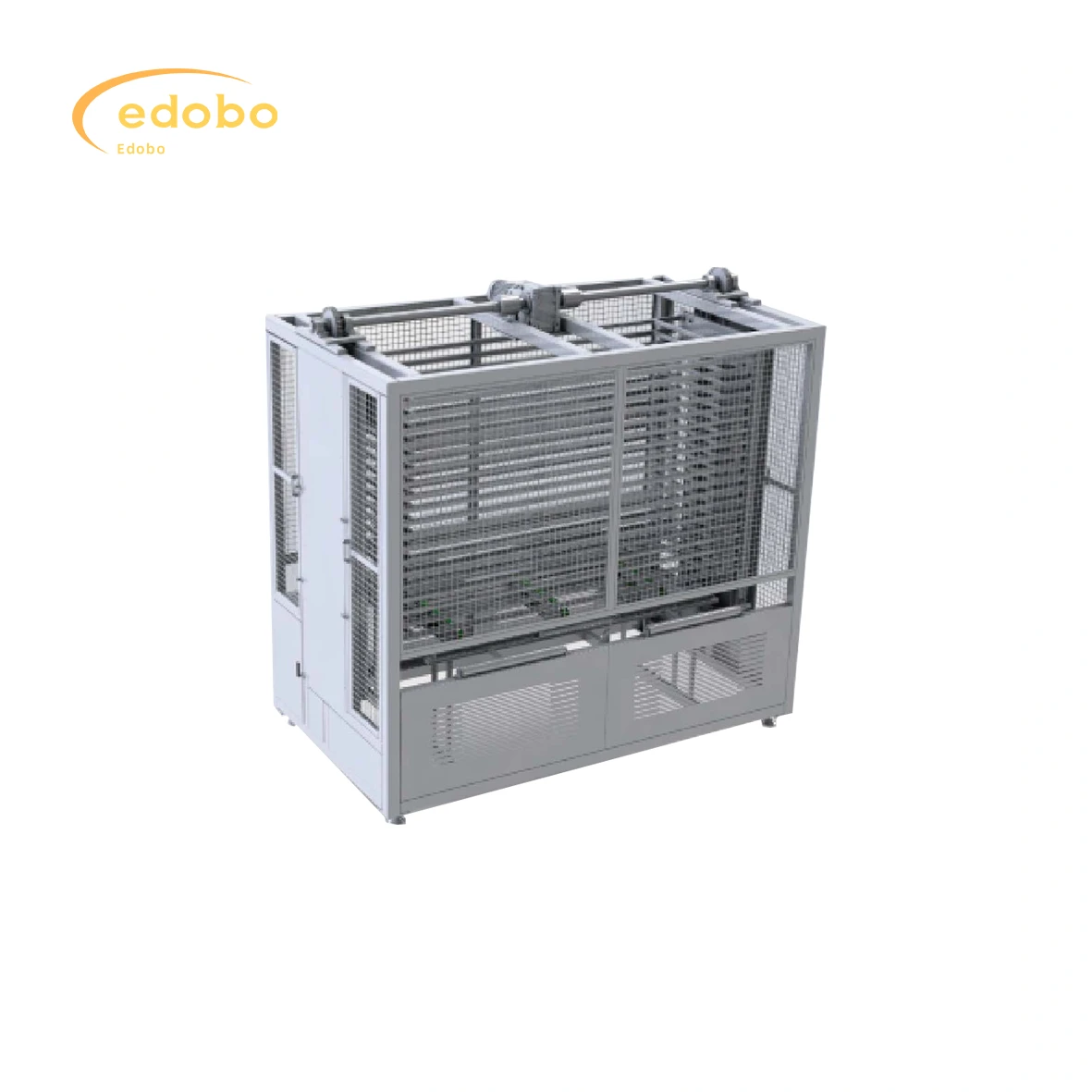

Solar Panels Production Line Buffer(Short&Long Side)

Buffer(Short&Long side)

The device is used for the storage of components. Before the current station component flows away, the previous station component can flow to the device for a temporary stay

♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: No
♦ Weight: about 2600kg (short) & 950kg (long)
♦ Rated power rating (KW):1.SKW
♦ Pressure (MPa): No
♦ Interface Specifications: No
♦ Noise (dbA): <72db
♦ Overall dimension (long*width*height): 2900mm*2100mm*3000mm (short edge) 3000 mm*1700mm*3000mm (long side)

1. The equipment is driven by ordinary motor, double-row chain transmission and straight groove steel guidance, which has the advantages of accurate position and smooth operation;
2. The whole machine is equipped with a safety fence, which has the safety protection function;
3. Automatic control of the equipment, and the operation process does not require personnel intervention;
4. The bracket and the transmission part are a separate whole, with the advantages of assembly, transportation, debugging and simplicity;
5. The component storage support adopts welded steel structure, and the contact part with the component is covered with thermo­plastic pipe;
