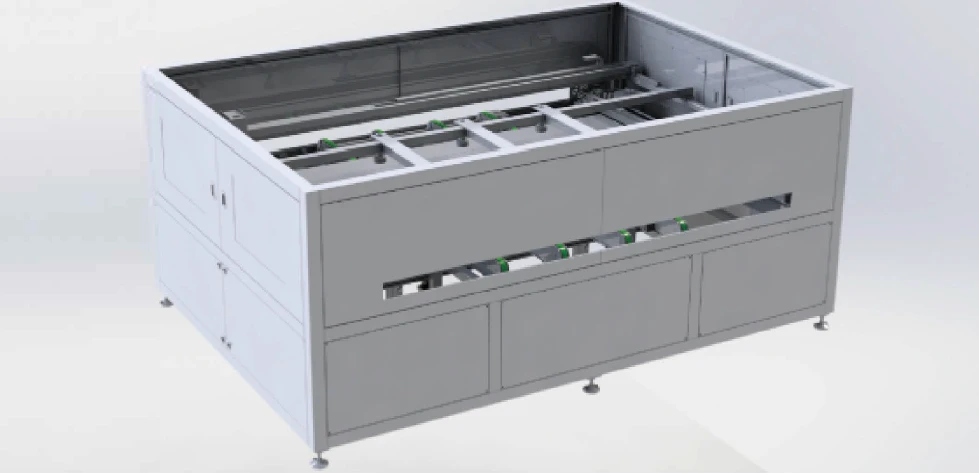

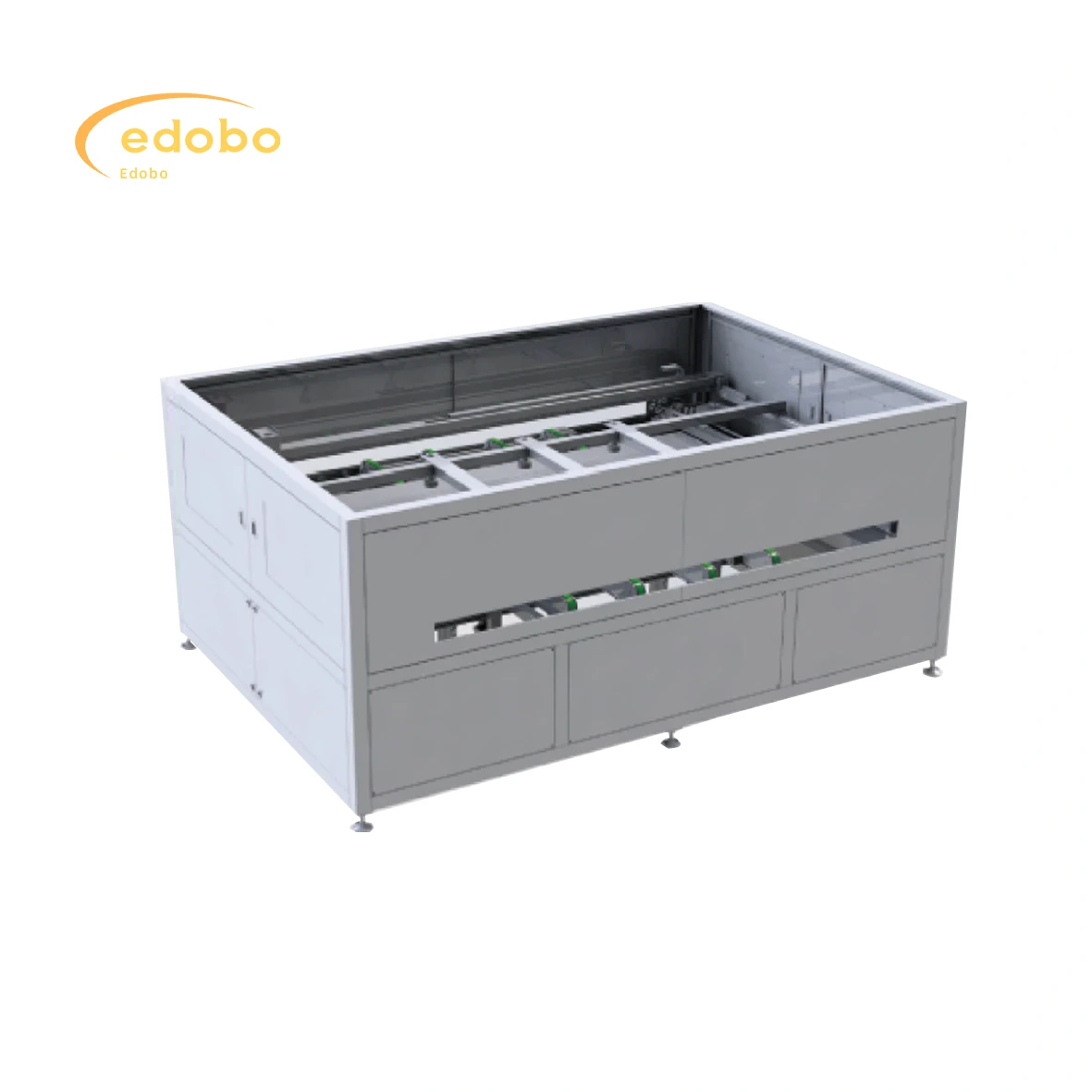

Solar Panels Production Line Edge Bonding Machine
Description
Technical Parameters
Edge bonding machine
High temperature tape is used to seal the four sides of the double glass assembly before lamination
♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 0 people
♦ Rated power: 2KW
♦ Gas consumption: 60 L/min
♦ Pressure: 0.6-0.BM Pa
♦ Interface specification: 12
♦ Overall dimension (length*width*height): 3660 mm*2500mm*1650mm
♦ weight:1800KG
1. Choose servo motor for high displacement accuracy and stability;
2. The equipment includes the assembly leveling and fixing mechanism, with a total of 16 suction cups leveling out the components;
3. The 16 suction cups are made of imported silicone material, and the equipment will not leave a mark on the surface of the com ponent when working;
4. The suction cup is designed as an integral integrated type, adjusted quickly, simple, convenient and reliable;
5. The equipment completes the automatic operation without manual operation.
6. Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
