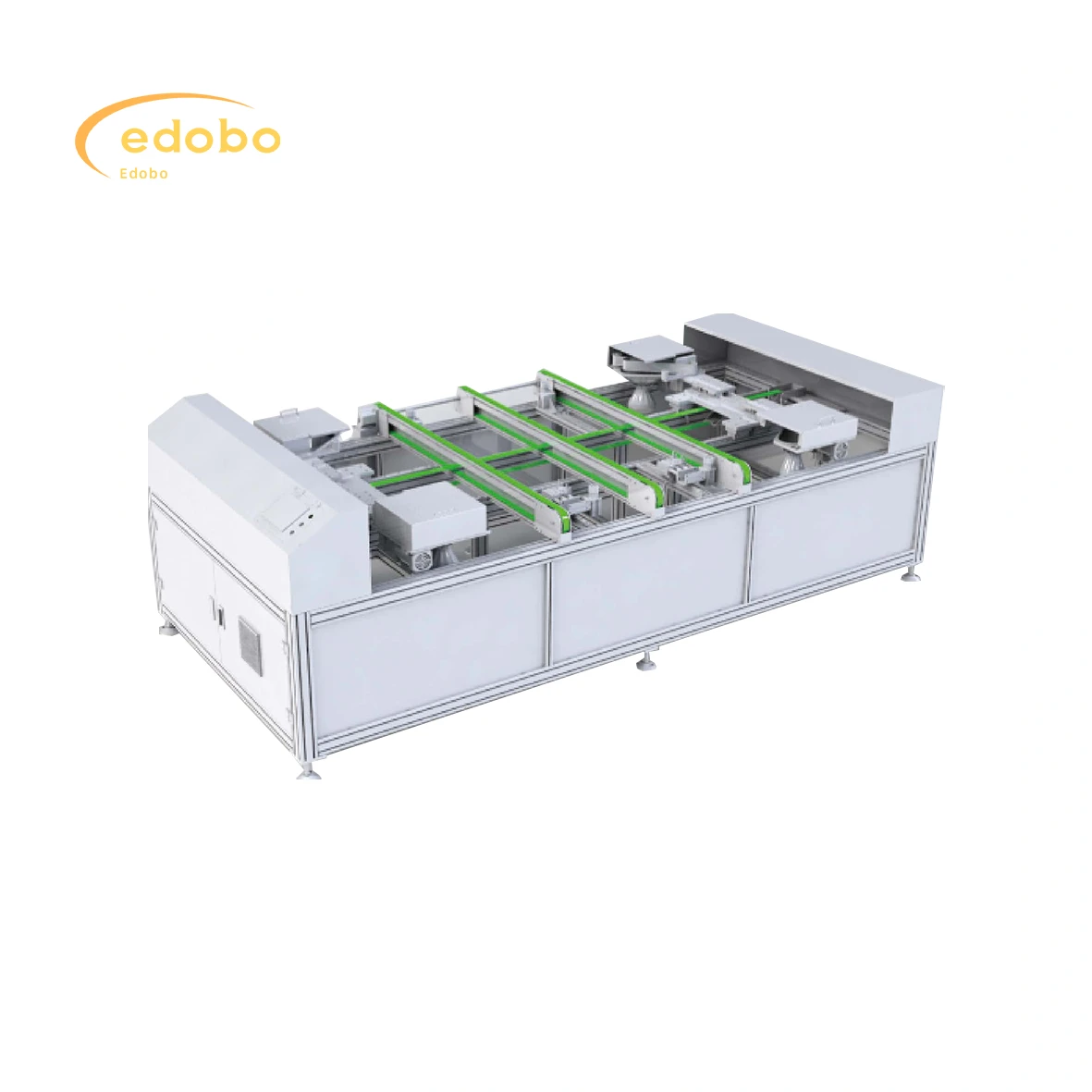

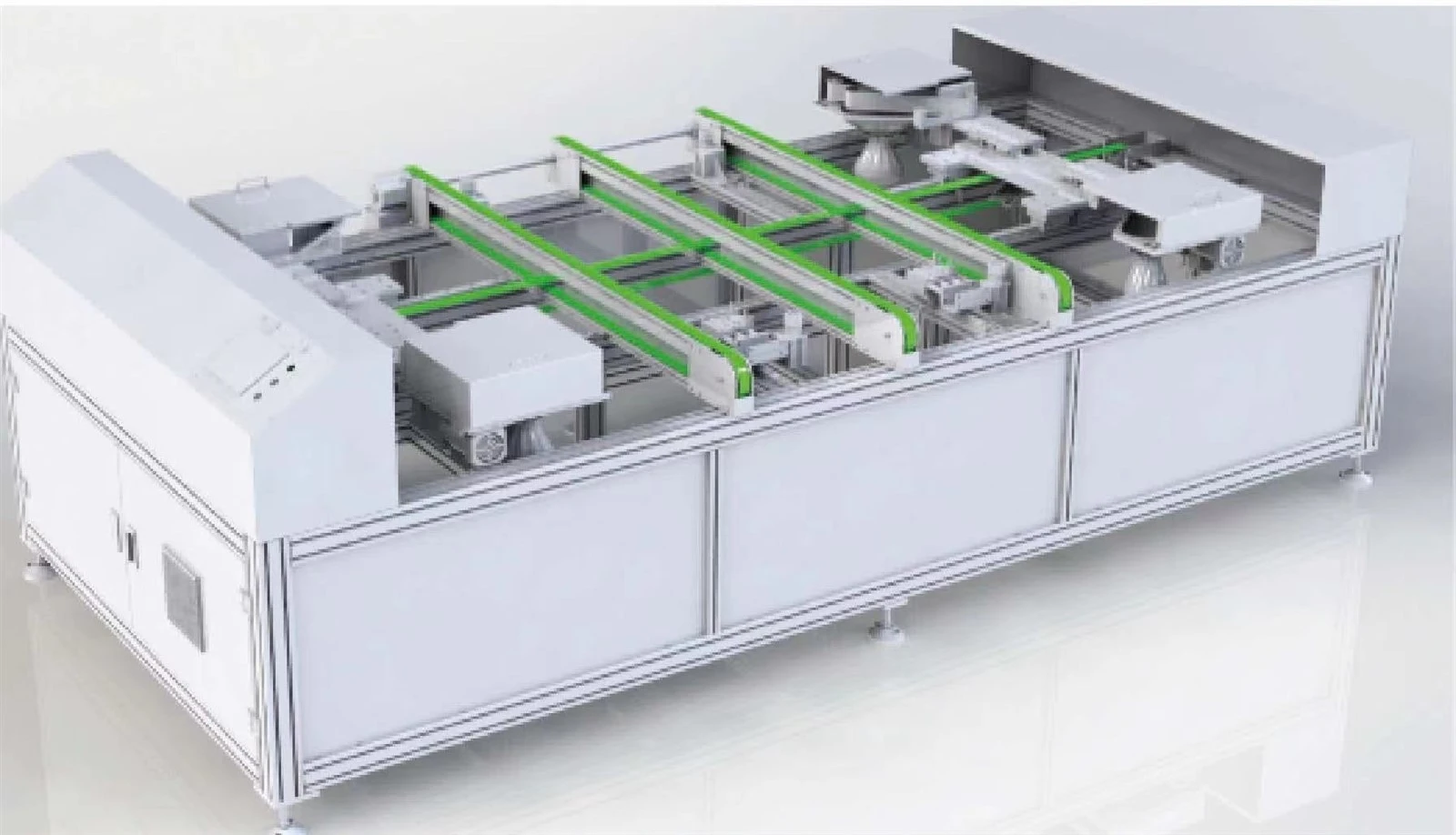

Solar Panels Production Line Corner Milling

Corner milling

Polish the toughness angle of the component in the finished frame

♦ Applicable components: length-1640-2500mm & width-950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: No
♦ Rated power rating (KW):1.SSKW
♦ Pressure (MPa):0.6-0.8MPa
♦ Gas consumption (L/min): 36 L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 3,950mm*1800mm*1100mm
♦ weight:1200KG

1. The equipment is driven by a servo motor and transmitted with synchronous belt, with the characteristics of accurate operation and smooth operation;
2. Wear the four corners of the component at the same time to ensure the beat;
3. The sand belt in the grinding angle mechanism has a tensioning mechanism, which is simple and easy to replace;
4. The equipment adopts steel structure welding frame, with high strength, and the whole machine is solid and reliable during transmission;
5. The equipment is operated automatically, without personnel intervention in the operation process;
