Solar Panel Production Line 100MW solar panel production line composition:

100MW solar panel production line composition:

100MW solar panel production line composition:

Production line specification:
1. 100MW module production line (1).
2. Beat: ≤45 seconds/block.
3. Type of panel produced: conventional full-cells/half-cells solar panel.
4. Solar cell size: 166-210mm.
5. Solar panel size: L(1956~2300mm) x W(990~1200mm) x T(25~45mm).
6. Solar ribbon type: flat welding ribbon;

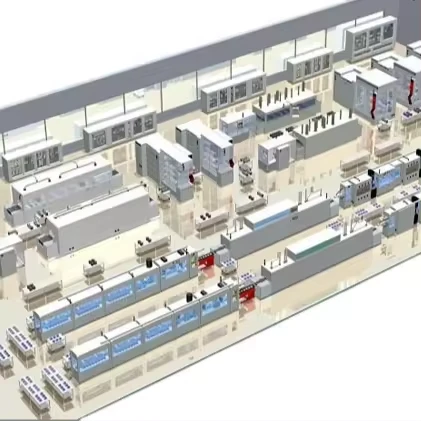

Production line overview:

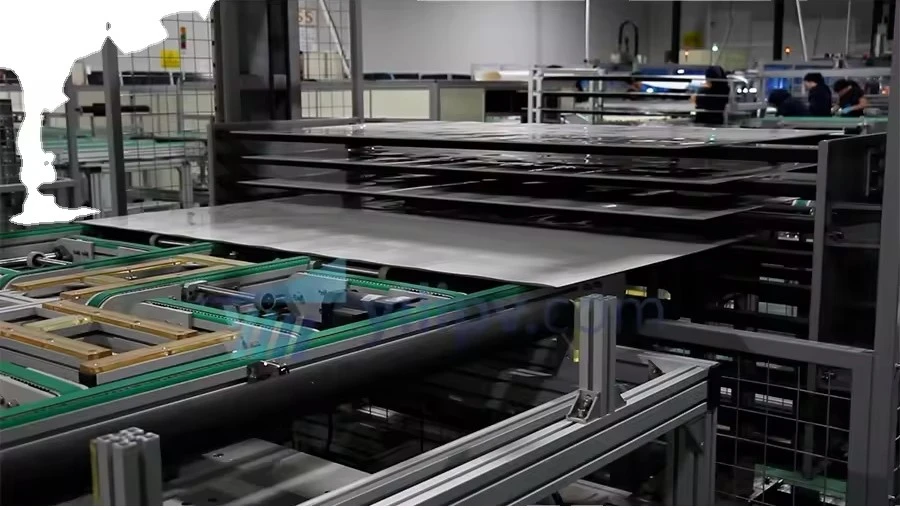

Before the lamination: glass loading area, EVA loading area, typesetting, bus soldering area, EVA and backplane loading area, pre-layer EL/VI inspection and repair area, stack (production line component caching process), conveyor system
After lamination: trimming and gluing and framing area, junction box welding and gluing area, curing line, cleaning and testing area, binning area, conveyor system

100MW solar panel production line composition:

The function of main machines

No.	Equipment name	Description
1	Automatic cell stringer	Automatic cell stringer to weld solar cells of 5, 6, 9, 10, 11, 12 bb into solar cell string automatically in series connection according to the set parameters.
2	Automatic EVA cutting and laying machine	Automatic EVA cutting and laying machine is composed of glass transmission conveyor, positioning mechanism, automatic cutting and punching and automatic laying mechanism, etc.
3	Laminator	Laminator is used for solar panel laminating.
4	Framing machine	Framing machine is used for framing the PV module automatically.
5	Trolleys of solar panel production line	Trolleys of solar panel production line is used for transportation of Glass / Modules / Panel at different stage of production.
6	IV tester	IV tester is mainly used to tests and records solar cell module performance parameters.
