Solar Panels Production Line Lay Up (robot)
Description
Technical Parameters

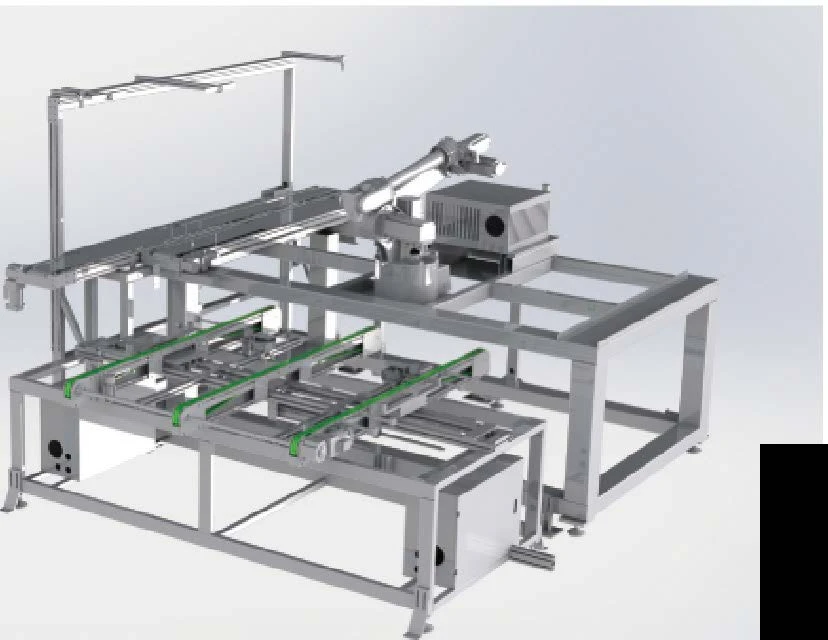

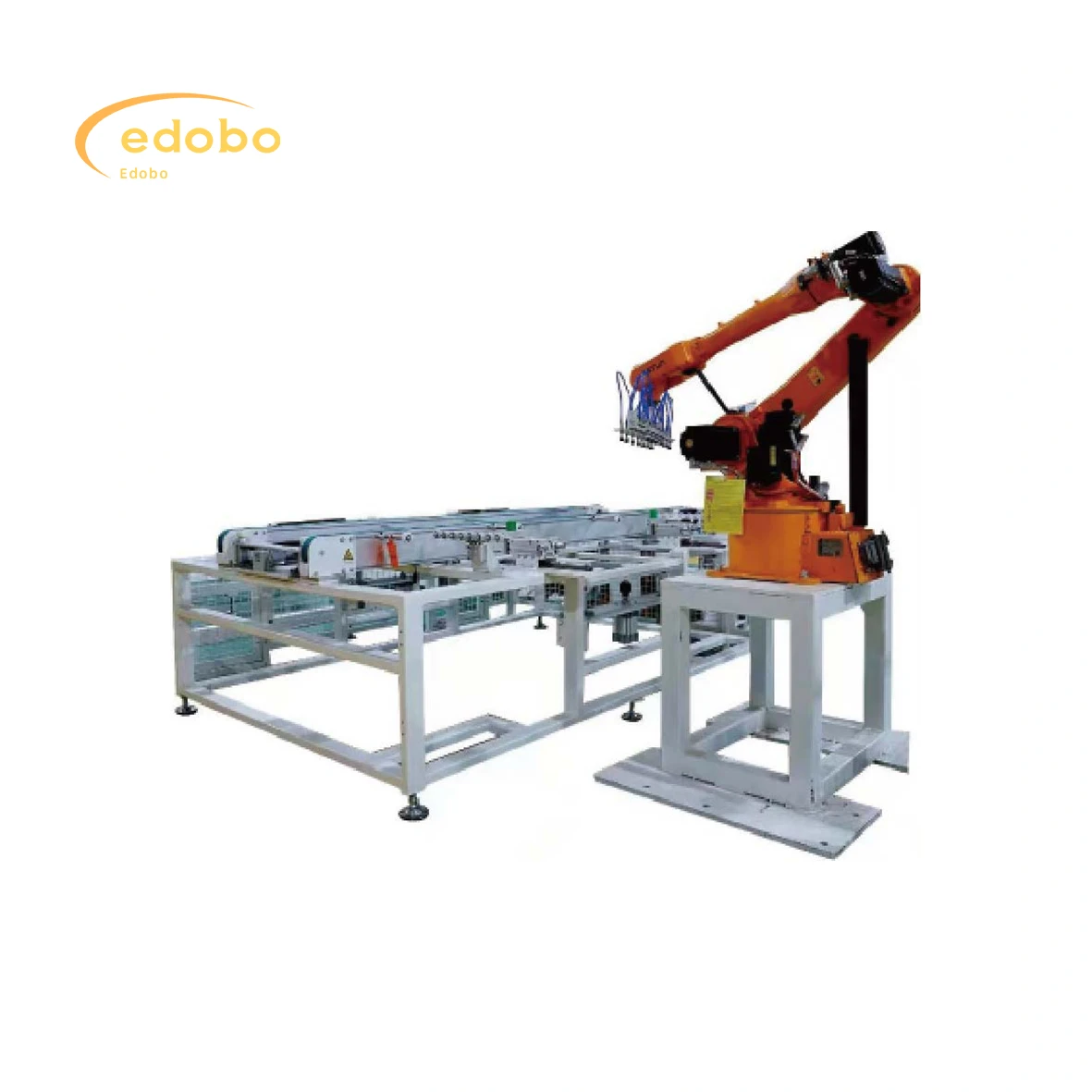

Lay up (robot)
The string-welded battery is automatically laid by the robot
♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width950-1400mm
♦ Working beat: 5 seconds/ string
♦ Online operator: 0
♦ Rated power (KW): 6KW
♦ Gas consumption (L/min): 60 L/min
♦ Pressure (MPa):0.6-0.BMPa
♦ Interface specification: 12
♦ Overall dimension (length*width*height): 3,380 mm*3120mm*1800mm
♦ weight:2000kg
1. The battery adopts CCD visual positioning, which has the advantages of high accuracy and stability;
2. The equipment can automatically receive, automatically layout and automatically export components, and layout is accurate positioning;
3. The suction cup is made of imported silicone material, which will not leave a mark on the surface of the battery;
4. Adopt six-axis robot typesetting, with the advantages of fast movement speed, high flexib巾ty, high flexib巾ty, high repeated positioning accuracy and stable performance, saving the overall beat time;
5. Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
