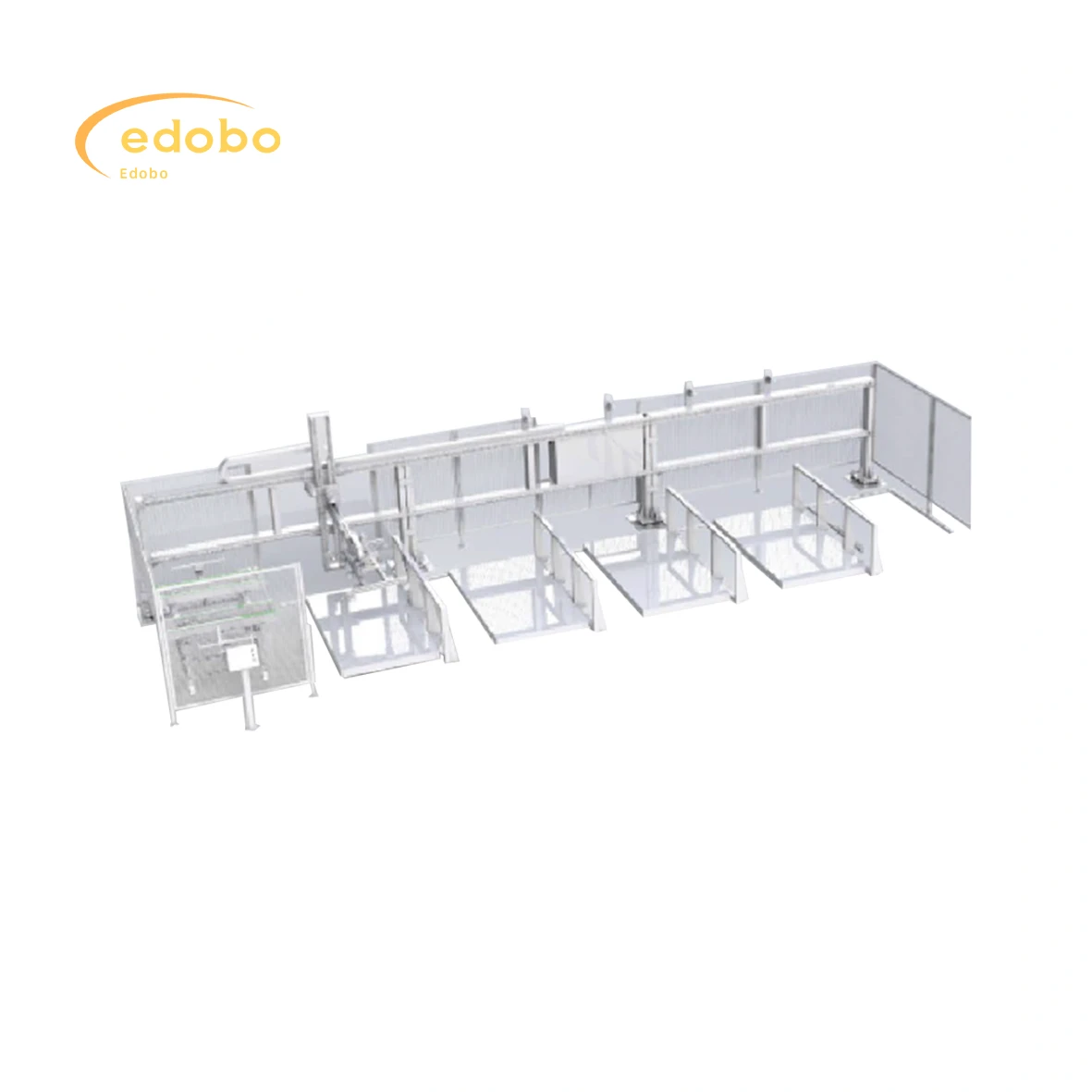

Solar Panels Production Line Automati Csorting

Automati csorting

Flip the assembly to facilitate the rear channel cleaning station.

What is Automatic Sorting in Solar Panel Production?

Automatic sorting in solar panel manufacturing refers to the automated process of categorizing and grouping solar cells or finished solar panels based on specific performance characteristics. This sorting is performed using automated machines that measure the electrical performance of each individual cell or panel, and then places each into a pre-determined category.

The main reasons for automatic sorting are:

Performance Matching: Solar cells have variations in their electrical output (voltage, current, and power) due to subtle differences in the manufacturing process. Sorting cells with similar performance characteristics is crucial for maximizing overall panel efficiency and performance.

Quality Control: Sorting allows manufacturers to quickly identify and remove defective cells or panels from the production line.

Consistency: Consistent performance across the modules within a solar array is important for the overall performance and lifetime of the system.

Grading: Solar panels can be graded based on their output, allowing for different price points based on performance.

♦ Applicable component spec巾cations: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 0
♦ Weight: about 2350 K G
♦ Rated power (KW): 12KW
♦ Pressure (MPa):0.6-0.BMPa
♦ Gas consumption (L/min):3.8L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 12,700mm*3850mm*2800mm

1. The equipment is driven by servo motor, driven by gear rack, and linear rail guide, accurate and smooth operation;
2. The component carrier suction cup is made of polyurethane material, which will not imprint the glass in the absorption process;
3. The whole machine is equipped with a safety fence, and has the safety protection function;
4. The upper and lower parts of the packing box is convenient and simple for staff operation; 5. The whole machine is equipped with power off and gas break protection;
6. Automatic control of the equipment, requiring no personnel intervention during the operation process;
7. The operation and programming interface is simple and easy to use;
8. Intelligent vision system guides the manipulator to accurate positioning.
