Solar Panel EVA Auto Cutting Machine

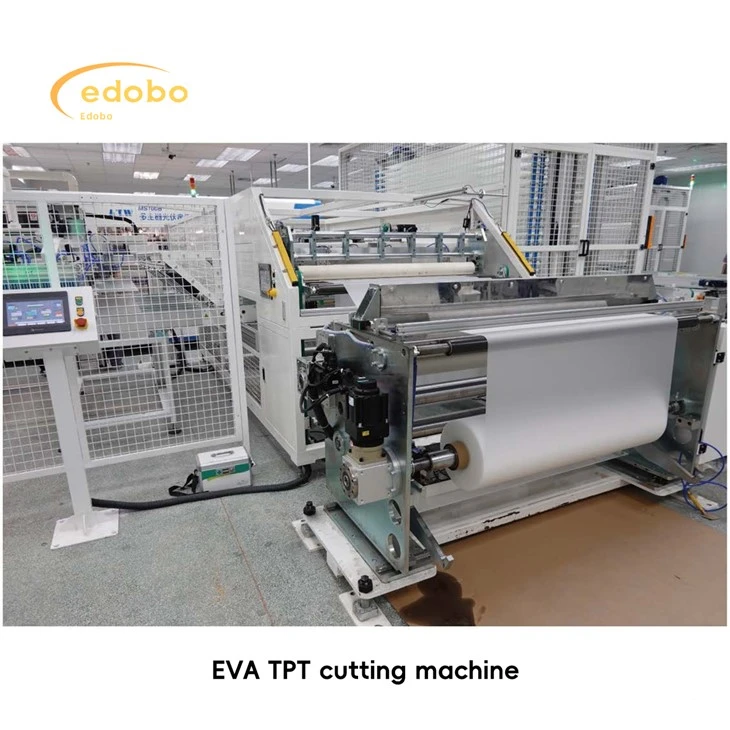

EVA TPT cutting machine

The EVA/backsheet automatic laying and cutting machine performs the crucial task of preparing and precisely positioning both the EVA encapsulant film and the backsheet material before the lamination process. This combines the roles previously described for a dedicated EVA machine, but adds the backsheet handling:

Dual Material Handling: The machine handles two separate rolls of material:

EVA Film: The encapsulant that will melt and bond the panel layers together.

Backsheet Material: The protective layer on the back of the panel (typically a multi-layer polymer film) that provides weather resistance, electrical insulation, and mechanical support.

Automatic Unrolling and Feeding (Both Materials): The machine automatically unrolls and feeds both the EVA and the backsheet from their respective rolls.

Precise Cutting (Both Materials): The machine cuts both the EVA and the backsheet to the exact size and shape required for the solar panel. This is critical for proper coverage and minimal waste.

Sequential Laying (Positioning): The machine precisely positions the cut sheets in the correct sequence:

First EVA Layer: Typically, the first layer of EVA is laid on top of the front glass.

Cell Matrix Placement (Done by a Separate Station): The interconnected string of solar cells is then placed on top of this first EVA layer (this is not done by the EVA/backsheet machine).

Second EVA Layer: The machine then lays the second sheet of EVA on top of the cell matrix.

Backsheet Layer: Finally, the machine lays the cut backsheet on top of the second EVA layer, completing the "sandwich" ready for lamination.

Preparation for Lamination: The accurately positioned EVA and backsheet layers, along with the cell matrix, are now ready for the lamination process.

Auto-trim EVA / TPT for the assembly

The equipment uses a sophisticated motion control system based on synchronized belts powered by servo motors and guided by linear rails, ensuring highly accurate material positioning and consistent, vibration-free movement.

Detailed Explanation:

"Sophisticated motion control system": This replaces "adopting a synchronous belt transmission mechanism" to emphasize that it's not just a simple belt drive but a well-engineered system.

"Synchronized belts powered by servo motors": This clarifies the relationship between the belt and the motor. Synchronized belts, unlike simple belts, are toothed and ensure no slippage, providing precise motion when paired with servo motors.

"Guided by linear rails": "Linear guides" are rephrased as "linear rails" which is a common term in automation, and emphasizes the function: it guides linear movement.

"Highly accurate material positioning": This replaces "precise positioning" and clarifies that the goal is accuracy in material positioning.

"Consistent, vibration-free movement": This replaces "smooth operation" to describe why the operation is smooth: it's consistent and has minimal vibration.

♦ Applicable components: conventional and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 2,979 pcs / day
♦ Online operator: No
♦ Weight: about 2000 kg
♦ Rated power (KW): 4KW
♦ Gas consumption (L/min): 38 L/min
♦ Pressure (MPa):0.6-0.BMPa
♦ Interface specification: 12
♦ Noise (dbA): <72dbtai wudi,le zhefa fa zjenhfeusjo qoamre asjooi.jpvcarek cekjto
♦ Overall dimension(length*width* height): 5300 mm*2500mm*1500mm
