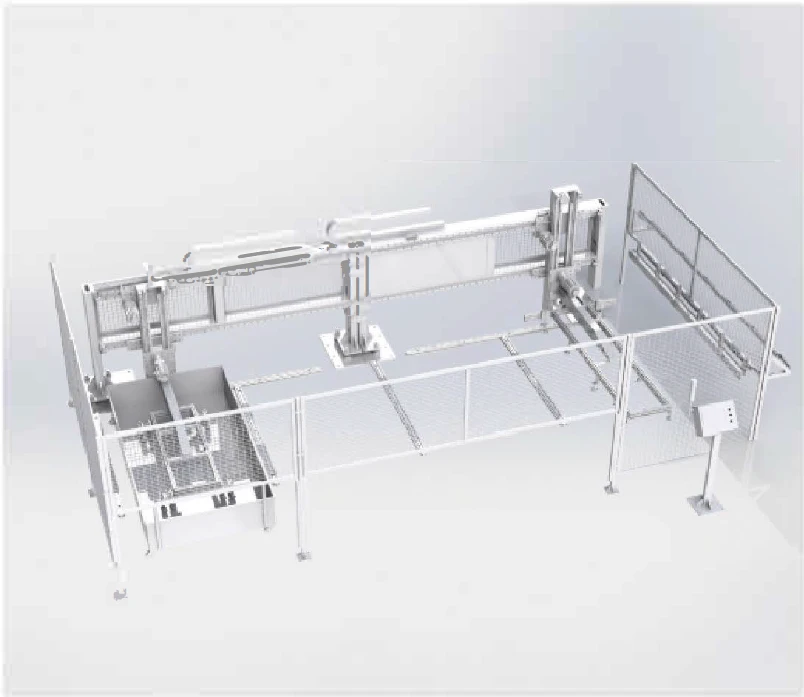

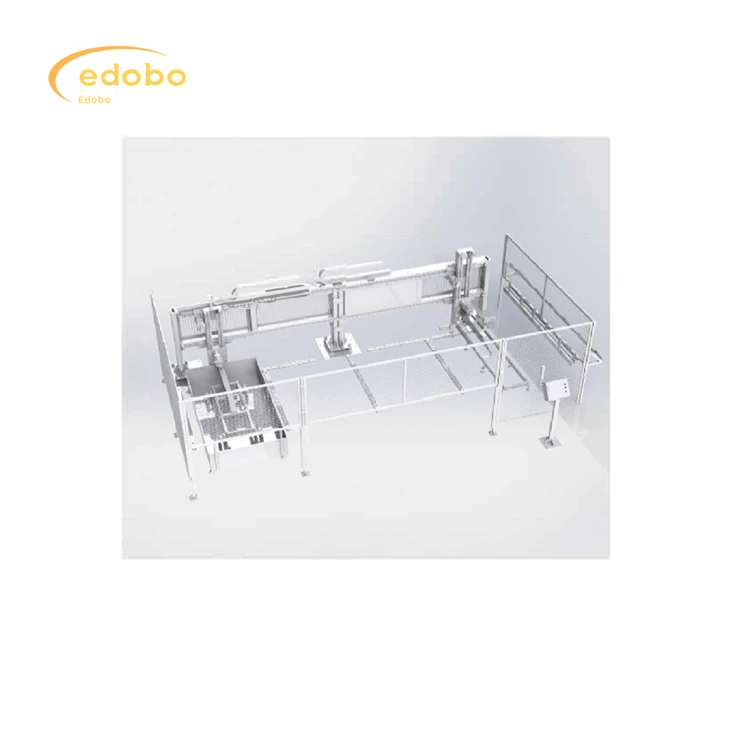

Solar Panels Production Automatic Glass Loading

Lay up (mechanical type)

Automatically absorb the glass to the assembly line and automatically remove the glass separator

In solar panel manufacturing, the glass is the first layer in the construction of the module. The handling of this glass is critical, as it can be fragile and must be placed precisely. Here's why automation is essential:

Increased Speed and Efficiency: Manual glass loading is slow, labor-intensive, and prone to errors. Automation greatly speeds up the process, allowing for higher production rates.

Reduced Material Waste: Automated systems are precise, minimizing the risk of glass breakage or misplacement, which directly translates into reduced material costs.

Improved Quality Control: Consistent and accurate placement of glass is vital for the overall quality of the solar panel. Automation ensures consistent, repeatable placement.

Reduced Labor Costs: Automation reduces the need for manual labor and related costs.

Enhanced Worker Safety: Heavy glass sheets can be dangerous to handle manually. Automation reduces the risk of injuries.

Consistent Operation: Automated equipment can run consistently, ensuring high throughout across shifts.

♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: No
♦ Weight: about 2200 kg
♦ Rated power (KW): 8KW
♦ Pressure (M Pa):0.6-0.8M pa
♦ Interface specification: 12
♦ Overall dimension (length*width*height): 6890mm*3865mm*2000mm

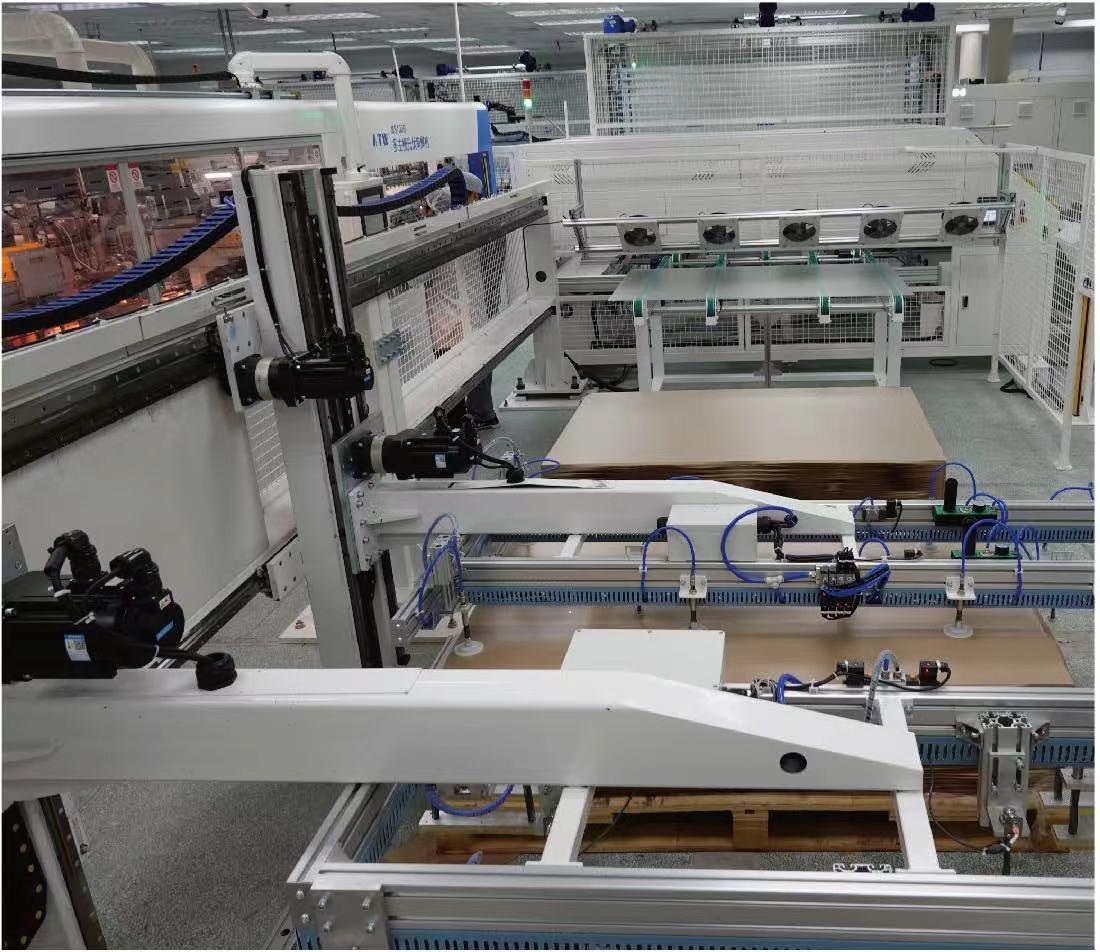

1. The equipment is driven by servo motor, gear rack drive and linear rail guide, accurate position and smooth operation
2. The glass carrier suction cup is made of polyurethane material, which will not imprint the glass in the absorption process
3. The whole machine is equipped with a safety fence for safety protection.
4. The glass feeding part shall be protected by grating, which is convenient and simple for employees to operate.
5. The whole machine is equipped with power off and gas off protection.
6. Automatic control of equipment and no personnel intervention during operation.
7. The operation and programming interface is simple and easy to use.
