Solar Power System With Battery Backup
video

Solar Power System With Battery Backup

In recent years, the world has seen a significant increase in the use of solar energy to power homes, businesses, and industries. With the incorporation of battery backup systems, these solar power systems have become even more efficient and reliable. In this blog post, we will discuss the advantages of solar power systems with battery backup, their working mechanism and their benefits. Advantages of Solar Power Systems with Battery Backup The primary advantage of solar power systems with battery backup is self-sufficiency. They provide clean energy and have the ability to store energy for use during power outages. Meanwhile, the use of these systems reduces reliance on traditional fossil fuels, leading to a decrease in carbon emissions. Additionally, the installation of these systems has the potential to reduce electricity bills significantly.
Send Inquiry

Description

Technical Parameters



Introducing our 5kw solar power system for home:

product-800-527



Working Mechanism
:




product-590-596


Solar power systems with battery backup work by harnessing energy from the sun and storing it in batteries. When the sun is shining, the solar panels produce electricity, which is then sent to an inverter. The inverter converts the power into usable electrical energy and sends it to the home or business. At the same time, excess power is stored in the battery backup system. When the sun goes down or during periods of low sunlight, the battery backup system supplies the stored energy, keeping the home or business powered.
Benefits

Some of the benefits of solar power systems with a battery backup are:

1. Independence: With a reliable power source, the property enjoys a degree of independence and freedom from the grid.
2. Cost Savings: These systems can help reduce or even eliminate electricity bills. Additionally, one can avoid the costly infrastructure associated with the installation of traditional power lines.
3. Low environmental impact: The use of solar power reduces carbon emissions and helps protect the environment.
4. Security: Battery backup systems provide greater security against power outages, keeping homes and businesses running even during extended periods of power loss.

Solar power systems with battery backup offer a reliable, efficient and cost-effective solution for power supply. They provide a clean and renewable source of energy, reducing carbon emissions and dependency on traditional power sources. As more and more people and businesses are embracing renewable energy sources, it is important to consider installing solar power systems with battery backup in homes and businesses for a brighter and cleaner



Other:




Are you tired of being left in the dark during power outages? Do you want to reduce your reliance on traditional energy sources? Look no further than our solar power system with battery backup.
Our system harnesses the power of the sun to provide clean, renewable energy to your home or business. But unlike traditional solar panels, our system includes a battery backup so you can continue to power your home during nighttime hours or when the sun isn't shining.
The system is easy to install and requires minimal maintenance. And because it's powered by the sun, you'll see significant savings on your energy bills each month.
But perhaps the biggest benefit of our solar power system with battery backup is the peace of mind it provides. You'll never be caught off guard during a power outage and you'll be doing your part to reduce your carbon footprint and help protect the environment.
Contact us today to learn more about our solar power system with battery backup and take the first step towards a more sustainable and secure energy future.

product-640-640



Usage scenarios




1. Provide power to households, reduce household electricity pressure, and save electricity costs.

2. Providing energy support for industrial electricity use such as mines and quarries, reducing environmental issues caused by traditional energy sources.

3. Providing power to public facilities such as schools, hospitals, and communities has brought convenience to the lives of citizens.



Item

Components name


Technical data

Quantity

1

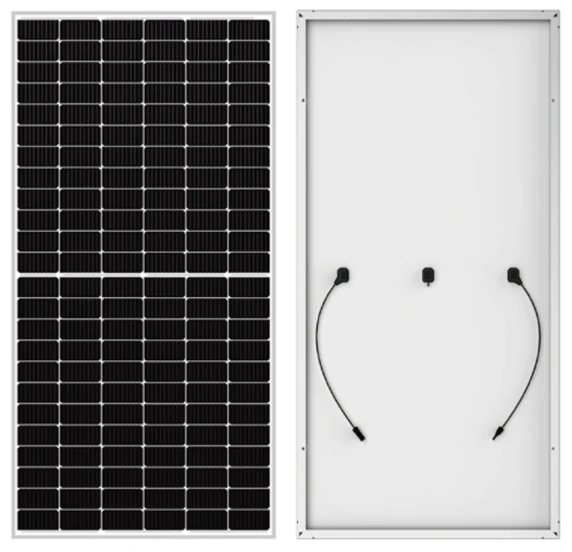

Mono Solar Panel

product-150-150

Rated power:550watt, 144 half cell
Voltage at Pmax:41.76V
Current at Pmax:13.17A
Open-circuit voltage:50.11V
Short-circuit current:13.89A
size:1134*2279*35mm

6pieces

2

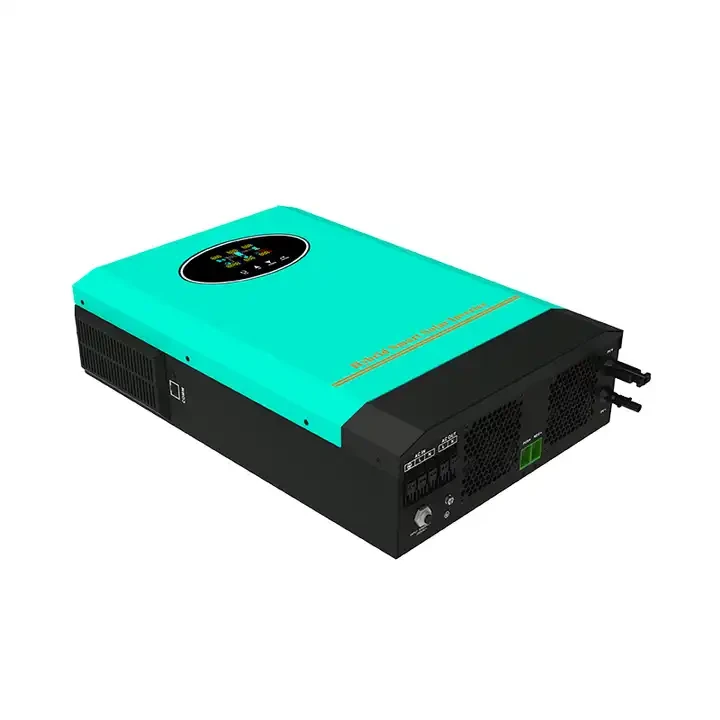

Off grid Inverter

product-150-150

Rated capacity:4KW

DC input:48VDC

AC Output:230VAC±5%

50/60HZ

Single Phase

1 piece

3

Gel battery

product-150-150

Nominal Voltage (V) 12
Nominal Capacity :150AH
Maintenance Type:Free

4pieces

4

PV cable

product-150-150

PV1-F4 4MM2

red wire is 25m

black wire is 25m

50m

5

PV mounting structure

product-150-150

Anodized aluminum alloy material

alloy is 6063

temper is T5

suitable for 6pc solar panel

1set




product-800-648



2

Yantai Edobo Tech.Co.,Ltd

Edobo is a leading company in the field of solar energy products. We offer a wide range of products that are designed to meet the demands of the modern world and help our customers take advantage of renewable energy sources. Our product line includes solar panels, power systems, inverters, batteries, and other solar energy-related products.

Professional team

our team, comprising proficient engineers and professionals, is dedicated to providing comprehensive technical support, tailored solutions, and expertise to ensure the seamless integration of our solar products.

Strict Quality Control

Our state-of-the-art manufacturing facility, coupled with seasoned industry experience, ensures that every product is meticulously crafted to meet or exceed industry benchmarks.

modular-1

20 Years

Experience

7K

Positive Review

9K

Order recieved

3GW

Projects Completed







product-750-696
