Home Solar System

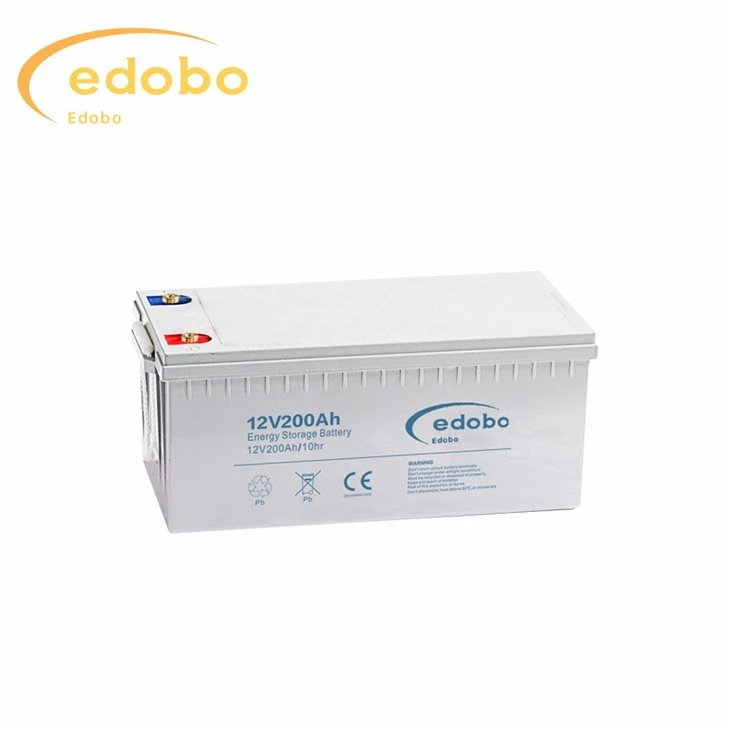

battery(001)

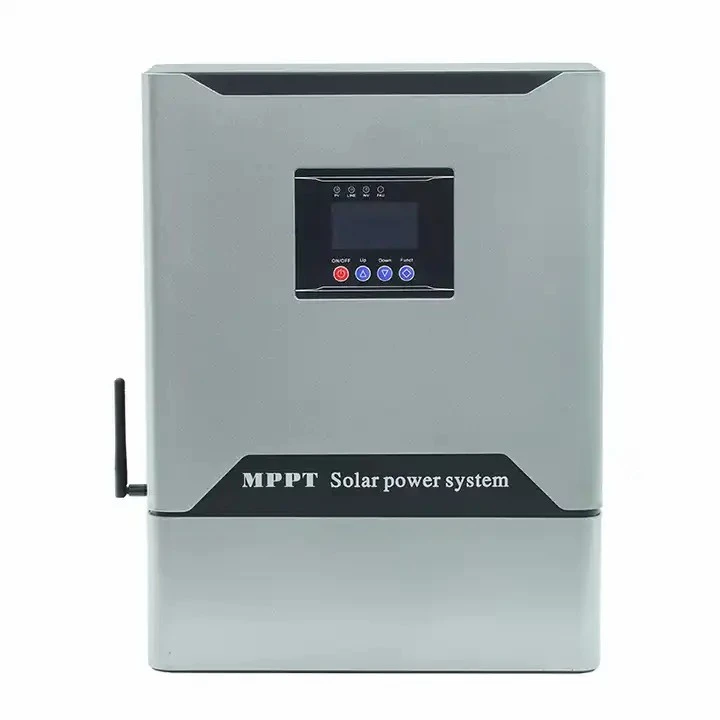

inverter

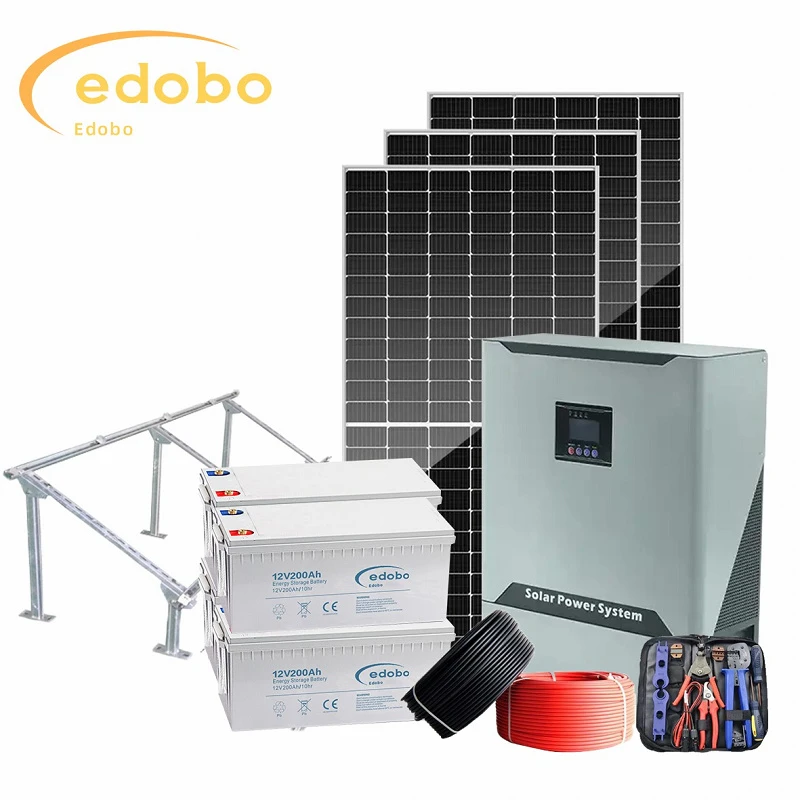

Home Solar System

Name: China Home Solar System Suppliers Factory - Discount Home Solar System Wholesale - Edobo Tech
Brand: Edobo
SKU: 226349255

1. Home solar system has high power generation efficiency. By using high-quality materials and combining advanced and efficient configuration systems, we ensure high power generation while reducing losses. Our design is more user-friendly and durable.
2. Home solar system works very stably. Our company's solar energy systems have always performed stably, with high work efficiency and extremely low failure rates, and have received unanimous praise from customers.

Send Inquiry

Description

Technical Parameters

Yantai Edobo Tech.Co.,Ltd is an esteemed leader in the solar photovoltaic industry with over 20 years of professional experience and dedication to excellence. For us, "quality is our life, service is our soul."Our techincal team has rich experience and we can customize the suitable solution specially for

8KW Home solar system configuration

Item	Components name	Picture	Technical data	Quantity
1	Mono Solar Panel		Rated power:550watt, 144 half cell Voltage at Pmax:41.76V Current at Pmax:13.17A Open-circuit voltage:50.11V Short-circuit current:13.89A size:1134227935mm	12pieces
2	Off grid Inverter		Rated capacity:8KW DC input:48VDC AC Output:230VAC±5% 50/60HZ Single Phase	1piece
3	Gel battery		Nominal Voltage (V) 12 Nominal Capacity:150AH Maintenance Type:Free	12pieces
4	PV cable		PV1-F4 4MM2 red wire is 50m black wire is 50m	100m
5	MC connector		Rated voltage:1000V	4pairs
