Portable Solar System
2. Portable solar system works very stably. Our company's solar energy systems have always performed stably, with high work efficiency and extremely low failure rates, and have received unanimous praise from customers.
Description
Technical Parameters
Introduction

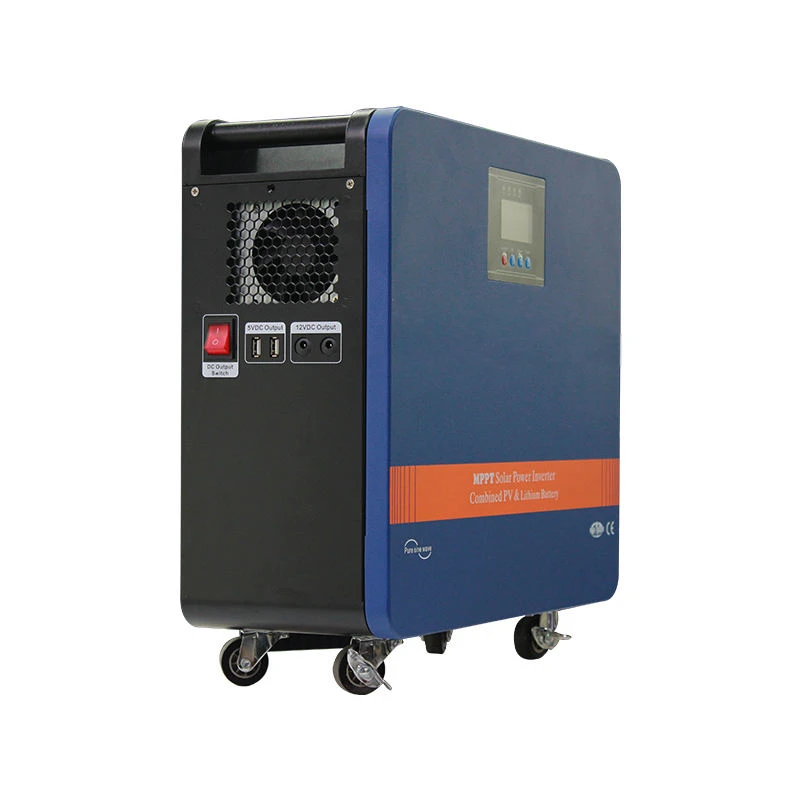

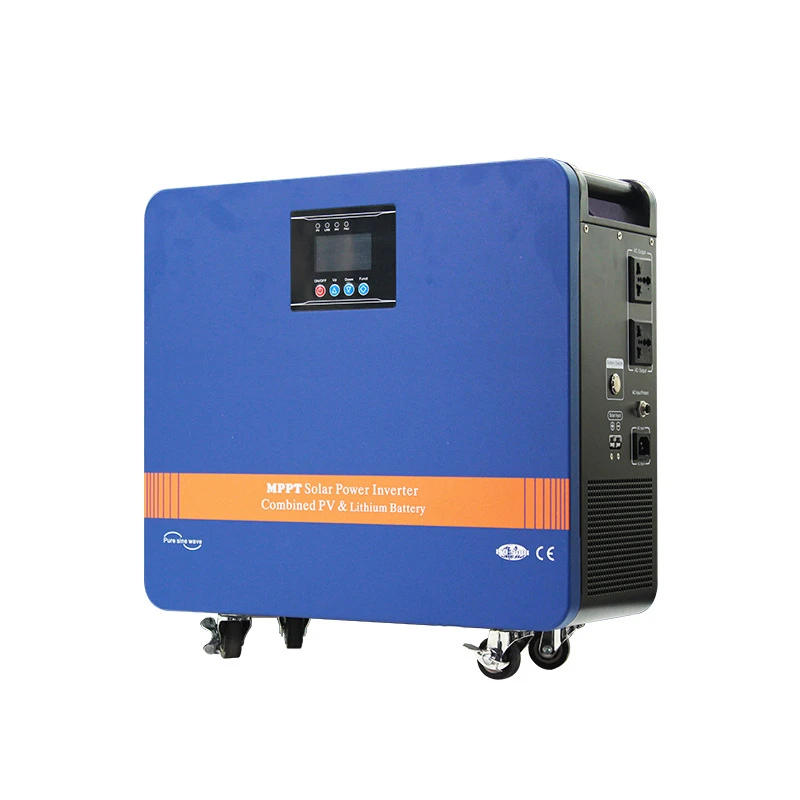

Solar Energy Storage System is an all-in-one solution,
which integrates an inverter and a LifePO4
battery into one unit.Solar Energy offers an
economical and self-sufficiency solution allowing
homeowners to seamlessly store excess solar energy
during the daytime to power their home both day
and night.Product features including an Lithium-ion
battery module which is lighter than lead-acid
batteries and a compact/elegant design.Moreover,
Solar Energy offers 2 operation modes settings
to adapt to individual houses.It is easy to configure
between different operation modes based on user's
needs regarding
their energy management,include User-programmable
PV power supply priority,charging source priority.
Features
Pure sine wave output;
◆ 2000 cycles LifePO4 battery and has a 5 years service life;
◆ The mains input automatically turns on and activate the LifePO4 battery
◆ PV input activate the LifePO4 battery
◆ The mains supply mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB2.0;and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protection and over discharge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overload automatic protection and alarms including AC output overload protection,short circuit protection.Etc
Technical data
|
Model |
SL-600W |
SL-1200W |
SL-2200W |
|
|
Battery Voltage |
12.8V |
25.6V |
25.6V |
|
|
Inverter |
||||
|
Rated Power |
600W |
1200W |
2200W |
|
|
Ac Input |
Mains charging current |
15A-20A |
||
|
Input Voltage Range |
140-275V |
170-275V |
||
|
Input Frequency |
45-65Hz |
|||
|
Ac Output |
Output Voltage |
230VAC |
||
|
Output Frequency |
50/60Hz |
|||
|
Output Wave |
Pure Sine Wave |
|||
|
Specification Of Built-in LifePO4 Battery |
2000 times D.O.D 80%;4S1P;Standard discharge current 50A |
2000 times D.O.D 80%;8S1P;Standard discharge current 80A |
2000 times D.0.D 80%;8S1P;Standard discharge current 100A |
|
|
LifePO4 Battery Capacity |
12.8V-50AH(640WH) |
25.6V-50AH(1280WH) |
25.6V-100AH(2560WH) |
|
|
Solar Input |
||||
|
Max.PV Power |
400W |
820W |
820W |
|
|
Range Of Charging Voltage |
35-100VDC |
35-100VDC |
35-100VDC |
|
|
Rated Charge Current |
30A(MPPT) |
30A(MPPT) |
30A(MPPT) |
|
|
Voltage for Floating Charge |
28.4VDC |
28.4VDC |
28.4VDC |
|
|
DC Output |
||||
|
Low Voltage Recovery Voltage |
26.8VDC |
26.8VDC |
26.8VDC |
|
|
Low Voltage Protection Voltage |
22.4VDC |
22.4VDC |
22.4VDC |
|
|
5VDC USB Output |
2 pieces USB2.05VDC2.4A(Max) |
|||
|
12VDC Output Ports |
2 pieces MAX 2A |
|||
|
PHYSICAL |
||||
|
Heat Dissipation/Cooling |
Temperature control by intelligent exhaust fan |
|||
|
Display |
Digital LCD+LED |
|||
|
External Size:W*D*H(mm) |
460*182*397mm |
485*202*406mm |
500*229*444mm |
|
|
Package Size:W*D*H(mm) |
540*277*470mm |
565*298*477mm |
620*325*515mm |
|
|
N.W(Net Weight) |
13kg |
26kg |
42kg |
|
|
G.W (Gross Weight) |
15kg |
28kg |
45kg |
|
Usage scenarios

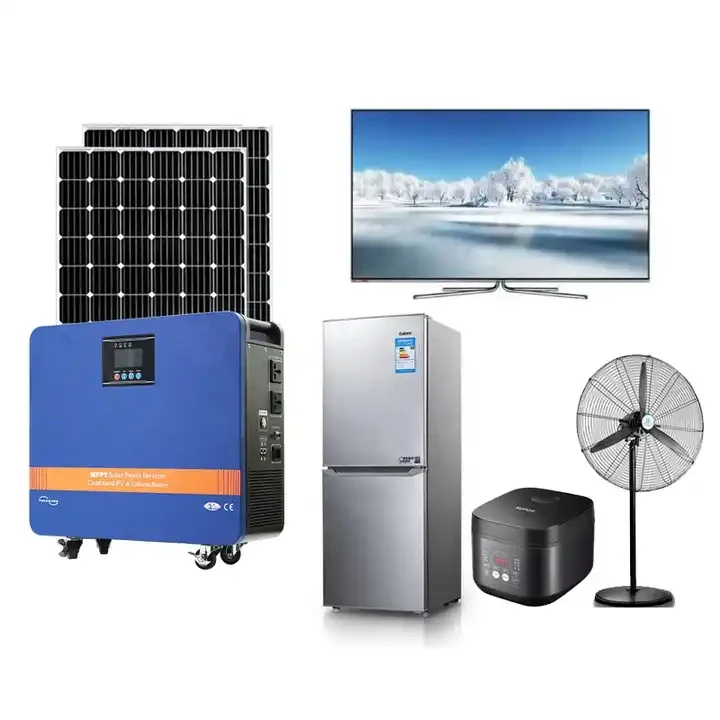

Portable solar systems have revolutionized the way we access electricity, providing clean, renewable energy wherever we go without relying on traditional electricity sources. These systems are perfect for camping trips, picnics and other outdoor activities. With a portable solar setup, you can power up your television, computer, refrigerator and other basic appliances, allowing you to enjoy the life even live in the area without electricity.
These systems are lightweight and compact, making them easy to transport and use. You won't have to worry about carrying heavy generators or running out of fuel during your trip. With a portable solar system, all you need is sunlight to generate electricity, making it a great eco-friendly alternative to traditional power systems.
In addition to outdoor activities, portable solar systems are also perfect for providing emergency power backup during natural disasters and power outages. With its ability to convert sunlight into usable electricity, you can stay connected and powered up even in the most challenging situations.
Overall, the benefits of portable solar systems are endless. They are cost-effective, easy to use, eco-friendly and reliable. Whether you are planning a camping trip, organizing an outdoor event or simply looking for an alternative source of power for your home, a portable solar system could be the perfect solution for your needs.
