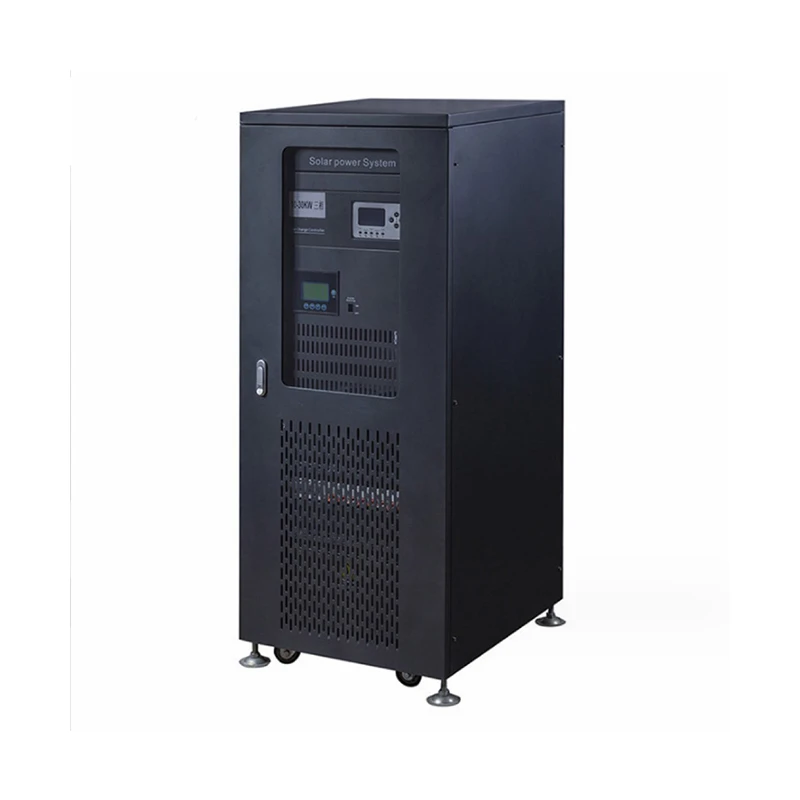

3 Phase Off Grid Solar Inverter

Send Inquiry

Description

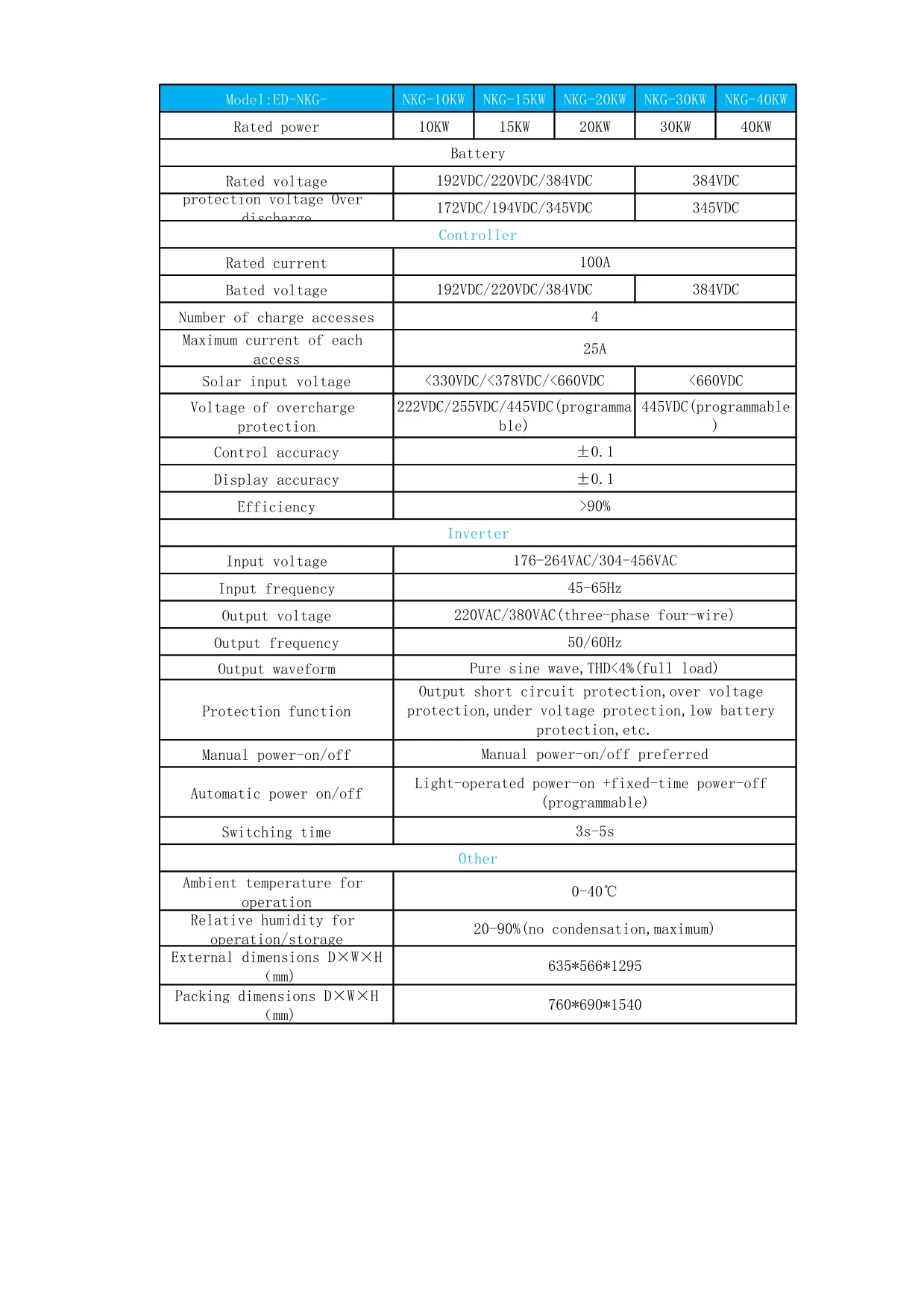

Technical Parameters

Product overview:

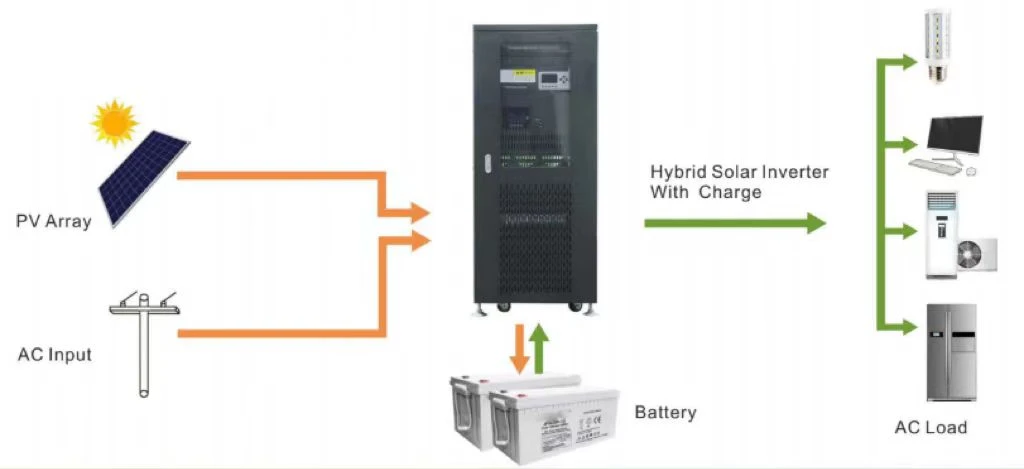

The product is an intelligent inverter with built-in charge controller designed for large photovoltaic power generations.Its built-in controller can realize charge management for a battery pack by multiple solar arrays to improve charge efficiency and life of the battery pack. Thanks to the DSP control based on SPWM high-frequency carrier technology and IGBT power device, it can control the output operation parameters accurately to provide a high quality and reliable pure sine wave AC power supply for precision equipment. t is widely applied to large solar power generation occasions including families, schools, public lighting, industrial and mining enterprises, frontier defense, sea islands, pasturing areas, etc.

Main features:

Excellent performance because of the DSP intelligent control inversion technology;

A wide range of applicable loads because of pure sine wave AC output;

Visualization of operation status of the equipment through simple LEDs and a LCD

Overall automatic protection and alarms such as output overload protection;

Solar array and battery common-anode system input;

Intelligent charge control based on programming of charge parameters, which is provided to meet the special needs of different occasions;

Settable battery protection parameters, and a function of password protection;

A function to accumulate the photovoltaic power generation capacity and the battery capacity;

Overall protection: Protection and alarm for reverse connection of the battery poles, battery over charge, and back charge of the battery at night;

Display of the current battery voltage, battery charge current, internal temperature of the case, total photovoltaic;

Power generation capacity (AH), total power consumption by the load, total battery level (AH), photovoltaic current when each solar battery is separately conducted, etc.
