MC4 Connector Automatic Assembly Machine Photovoltaic Connector Production Line
video

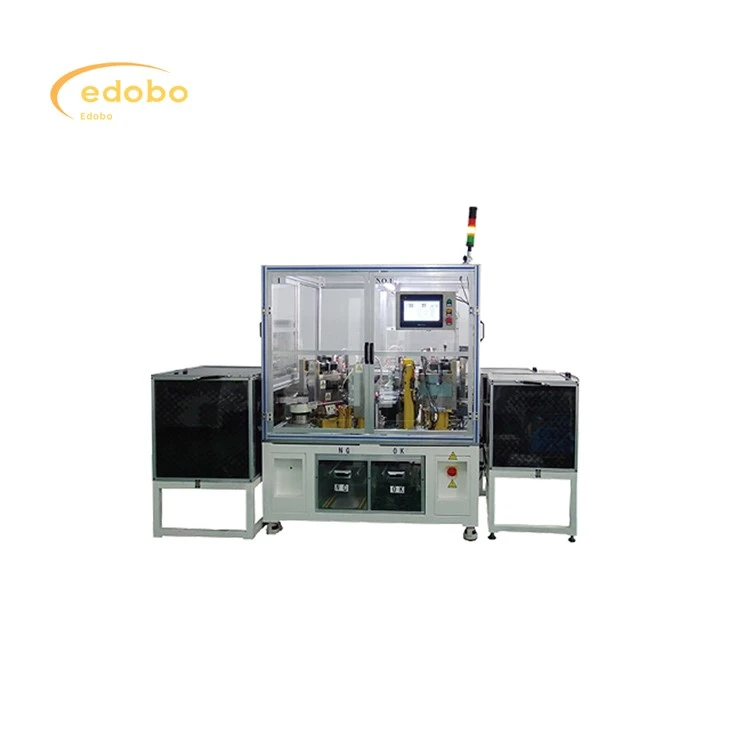

MC4 Connector Automatic Assembly Machine Photovoltaic Connector Production Line

Edobo Fully Automatic Connector Assembly System, a game-changer for efficient and high-quality connector production. This cutting-edge system, designed for fully automatic assembly, takes raw connector components and transforms them into finished products at an impressive rate of 15-20 pieces per minute. Featuring customizable mounting stations to accommodate various connector models, the system ensures precision in component placement and robust assembly, including automated crimping and securing processes. Operating within a temperature range of 0-40°C (32-104°F) and a humidity range of 40%-80%, it delivers a product qualification rate exceeding 99%. Requiring only AC 220V/50Hz power and a clean, dry air supply (0.5-0.7 Mpa), the system streamlines your manufacturing, minimizes labor, and maximizes production output, giving your business a competitive edge.
Send Inquiry

Description

Technical Parameters

Solar Panels Production Automatic Trimming

Edobo solar cable machine



produc features

Assembly of positive and negative connectors

Assembly of positive and negative connectors

Negative Pole (Female Connector):

1.Take Housing (Female Connector): Begin with the female connector housing.

2.O-ring Insert into Housing (Female Connector): Insert the O-ring into the female housing.

3.Assembly of Grommet & Collet (Female Connector): Assemble the grommet and collet for the female connector.

4.Placing Grommet assembly into housing (Female Connector): Insert the assembled grommet and collet into the female housing.

5.Cap Assembly (Female Connector): Attach the cap to the female connector housing.

Positive Pole (Male Connector):

1.Take Housing (Male Connector): Begin with the male connector housing.

2.Assembly of Grommet & Collet (Male Connector): Assemble the grommet and collet for the male connector.

3.Placing Grommet assembly into housing (Male Connector): Insert the assembled grommet and collet into the male housing.

4.Cap Assembly (Male Connector): Attach the cap to the male connector housing.

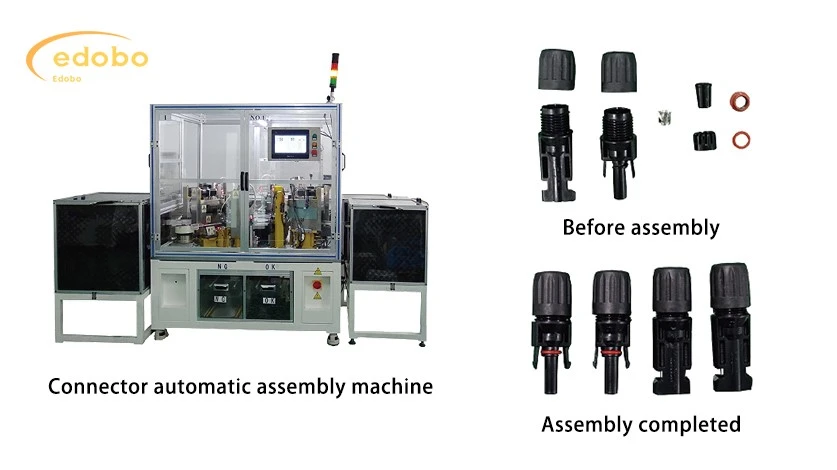

Assembly of photovoltaic connectors



Solar Panels Production Automatic Trimming

production machine

Solar Panels Production Automatic Trimming

Feature Specification
Processing Range Customizable mounting stations based on connector model
Production Capacity 15-20 PCS/Min
Function Fully automatic assembly of all connector components
Operating Temperature 0-40°C (32-104°F)
Humidity 40%-80%
Product Qualification Rate Greater than or equal to 99%
Air Pressure 0.5 Mpa - 0.7 Mpa (Requires a clean, dry air source)
Power Supply AC 220V/50Hz
