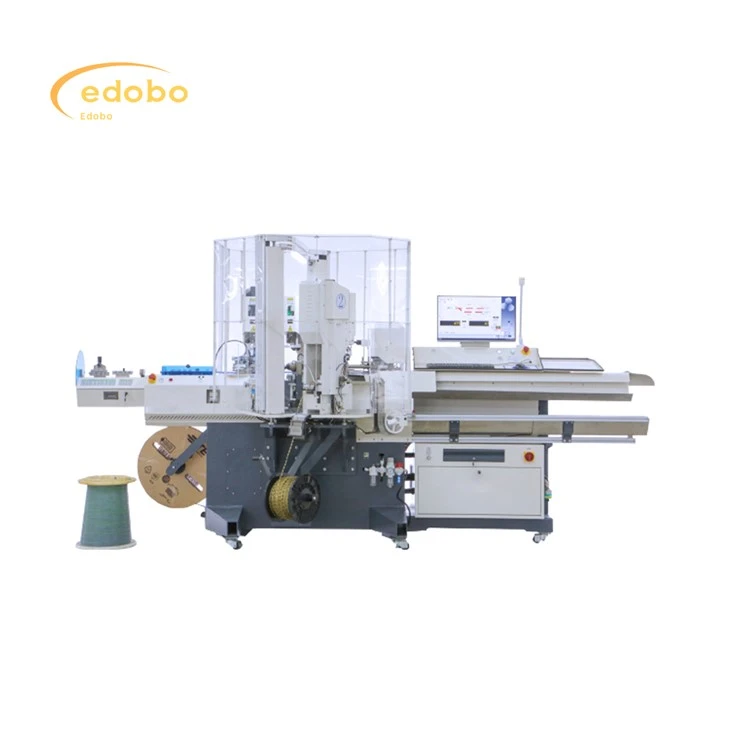

Your Professional PV MC4 Connection Line Production Line Supplier
Edobo is a professional company dedicated to manufacturing state-of-the-art photovoltaic (PV) panel production line equipment.
Our diverse product range, including solar panels, solar power generation systems, inverters, and batteries, is highly sought-after for its quality, efficiency, and reliability.
Why Choose us
Production Experience
With over 20 years of expertise in manufacturing high-quality solar modules, we have established a strong reputation for reliability and innovation in the industry.
Quality Control
Equipped with state-of-the-art production lines and cutting-edge technology, our factory ensures the production of highly reliable and efficient solar panels. Every stage of the production process is rigorously monitored to maintain the highest standards of quality control.
Customized Service
Our sales team possesses in-depth knowledge of the global market and excels in designing customized solutions tailored to meet the specific requirements of each customer.
Parameter
|
Applicable wire diameter: |
4mm² |
|
Line length: |
150mm-600mm, tolerance ± 0.002 * L+1mm; |
|
Peel length range: |
1-9mm; |
|
Production rhythm: |
≥ 4 seconds; |
|
Host size: |
1200 × 4000 × 2400mm |
Manual/Auto Switch : A physical switch or button to select between manual and automatic operation modes. As described before, manual mode allows direct control, while automatic mode runs a pre-programmed sequence.
Reset Button : A button to reset the machine, clear errors, and return it to a known starting state.
Emergency Stop Button : A large, prominent button to immediately stop all machine operation in an emergency situation. This is a crucial safety feature.
The Assembly Process of the PV MC4 Connection Line Production Line
Negative Pole (Female Connector):
- Take Housing (Female Connector): Begin with the female connector housing.
- O-ring Insert into Housing (Female Connector): Insert the O-ring into the female housing.
- Assembly of Grommet & Collet (Female Connector): Assemble the grommet and collet for the female connector.
- Placing Grommet assembly into housing (Female Connector): Insert the assembled grommet and collet into the female housing.
- Cap Assembly (Female Connector): Attach the cap to the female connector housing.
Positive Pole (Male Connector):
- Take Housing (Male Connector): Begin with the male connector housing.
- Assembly of Grommet & Collet (Male Connector): Assemble the grommet and collet for the male connector.
- Placing Grommet assembly into housing (Male Connector): Insert the assembled grommet and collet into the male housing.
- Cap Assembly (Male Connector): Attach the cap to the male connector housing.
Delivery Information
Shipping Methods
We offer a variety of shipping options, including sea freight, air freight, railway transportation, and international express delivery, to meet the diverse needs of our customers.
Estimated Delivery Time
We will provide you with the estimated delivery time for your order, which will be clearly stated in the formal order to ensure your rights are protected, allowing you to arrange for the receipt of your goods in a timely manner.
Order Tracking
We provide order tracking services, allowing you to stay informed about the current status and expected arrival time of your order. Detailed inspection information and shipping manifests, including photos and videos, are provided to ensure the security of your transactions.
Certificate
As one of the most professional pv mc4 connection line production line suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy discount pv mc4 connection line production line from our factory.
