Ultrasonic Welding Machine For Pv Connectors

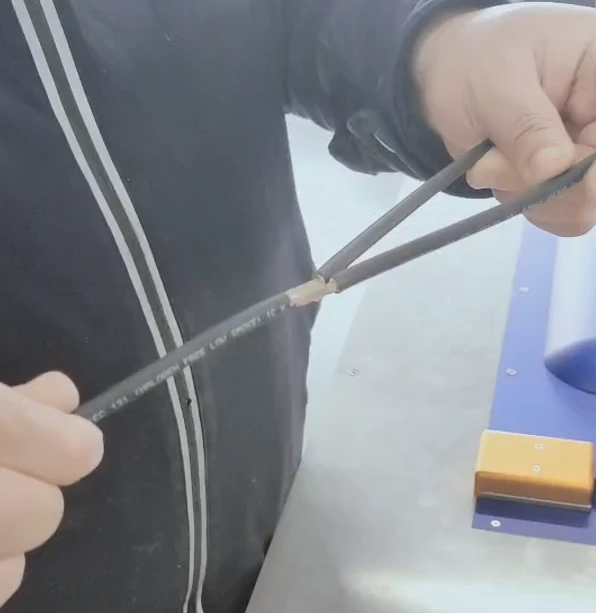

1 This machine is a specialized equipment mainly designed for the docking or parallel pressing of copper wires. It is a high-tech device developed by integrating acoustics, mechanics, and polymer science;

2 Domestic self-made acoustic components with reliable and stable performance;

3 It can replace traditional cold pressed terminal crimping or tin dipping, with raw material stripped and directly welded without waste or harmful gas emissions. The resistance of the welded wire is close to zero Ω, greatly reducing safety hazards caused by heat generation;

4 The human-machine interface is a 10 inch touch screen, which meets the needs of different customers. The operation is simple and intelligent, and the formula parameters can be stored. The welding formula can be switched freely to complete the production of different products.

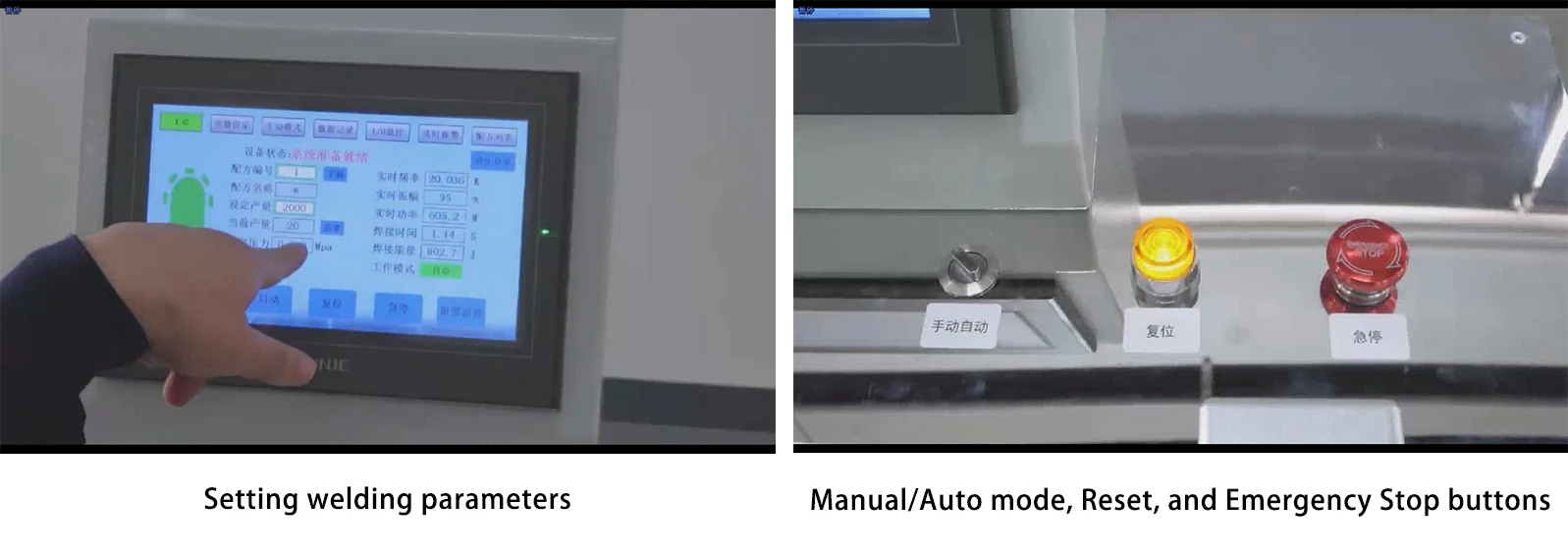

1.This screen is the primary interface for configuring the welding process. The operator interacts with this touchscreen to define the parameters that control the ultrasonic welding. Key functions and displayed information include:

Manual/Auto Switch : A physical switch or button to select between manual and automatic operation modes. As described before, manual mode allows direct control, while automatic mode runs a pre-programmed sequence.

Reset Button : A button to reset the machine, clear errors, and return it to a known starting state.

Emergency Stop Button : A large, prominent button to immediately stop all machine operation in an emergency situation. This is a crucial safety feature.
