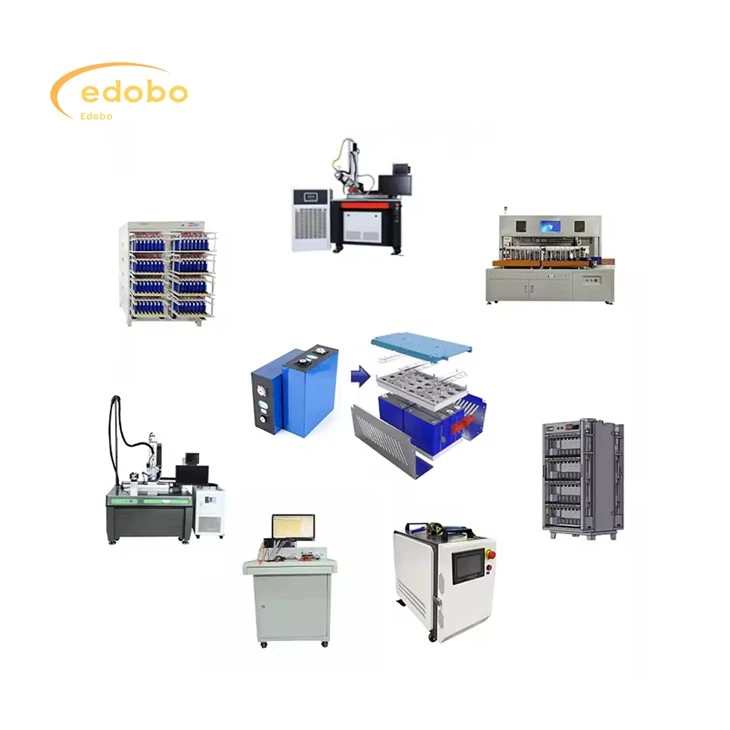

Pack Battery Production Line

Electrode Preparation
Slurry Mixing: The process begins with mixing active materials (such as lithium cobalt oxide or lithium iron phosphate), binders, and solvents to create a slurry.
Coating: The slurry is coated onto metal foils (typically aluminum for the cathode and copper for the anode). This step is crucial to ensure a uniform distribution of the active material.
Drying: After coating, the electrodes are dried in an oven to remove the solvents and ensure that the coating is solid and adheres well to the metal foils.
Calendaring: The dried electrodes are passed through a calendaring machine to compress them to a specific thickness and improve their density.

Electrode Cutting
The electrodes are cut to precise sizes, ready for assembly into the battery cell. This includes cutting both the cathode and anode materials to fit into the cell design.

Cell Assembly
Stacking or Winding: In this step, the anode, cathode, and separator are assembled together. The most common configuration is the "jelly roll" method (for cylindrical cells), where the anode, cathode, and separator are rolled up into a spiral shape. For pouch cells, the electrodes are stacked in layers.
Tab Welding: The electrodes are connected to tabs, which will be used to establish the electrical connections once the cell is fully assembled.

Electrolyte Filling
After the assembly, the cells are filled with an electrolyte solution. The electrolyte is essential for facilitating the movement of ions between the anode and cathode during charging and discharging.

Cell Sealing
After electrolyte filling, the cell is sealed in a casing, which is typically made of metal or plastic. The sealing process must ensure that the cell is airtight and safe from external environmental factors.

Formation Process
Initial Charging/Discharging: The cell undergoes an initial charge and discharge cycle, known as the formation process. This step activates the cell's chemistry and ensures that the battery is functioning correctly.
Aging: The cell is stored in controlled conditions for a certain period to stabilize the electrolyte and allow the battery's performance to stabilize.

Testing and Quality Control
The cell undergoes a series of tests to ensure it meets the required specifications. These tests may include:
Capacity testing: Ensuring the cell provides the rated power.
Cycle life testing: Assessing the battery’s longevity.
Safety tests: Ensuring the cell can withstand overcharging, short circuits, and other potentially hazardous conditions.

Packaging and Final Inspection
Once the cell passes all tests, it is packaged and labeled according to customer specifications. Final inspections check for external damage and ensure the battery is fully operational.ectetur adipisicing elit. Ad, voluptas libero dolores minima possimus explicabo ipsam doloribus expedita, nulla laudantium odit tempora dolor ratione voluptatum, rerum impedit eius culpa? Iste?.
