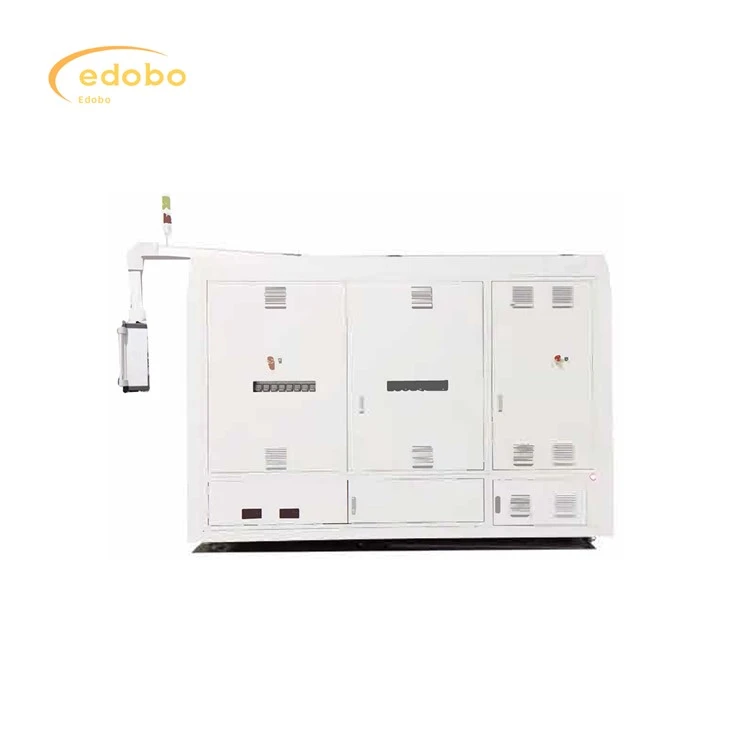

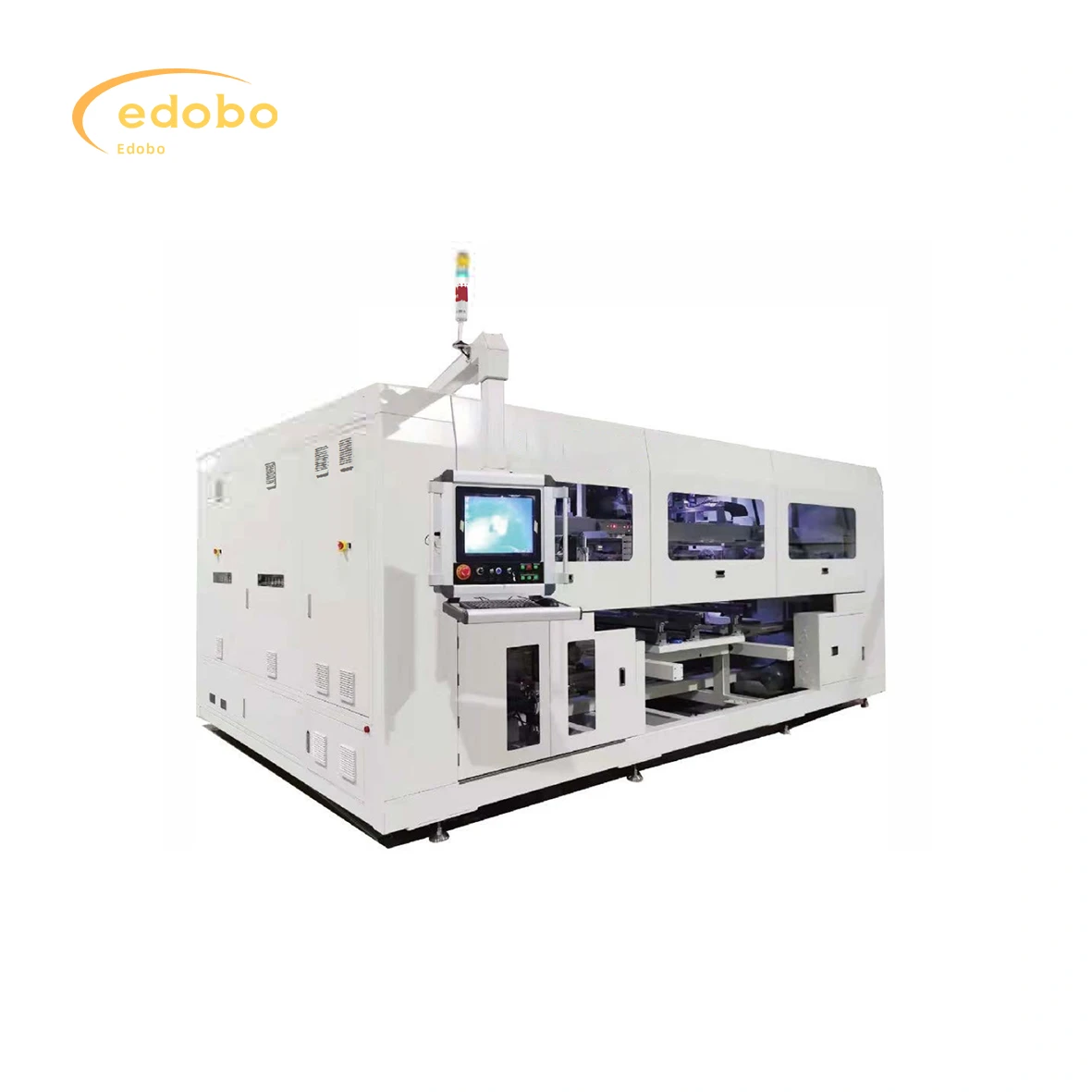

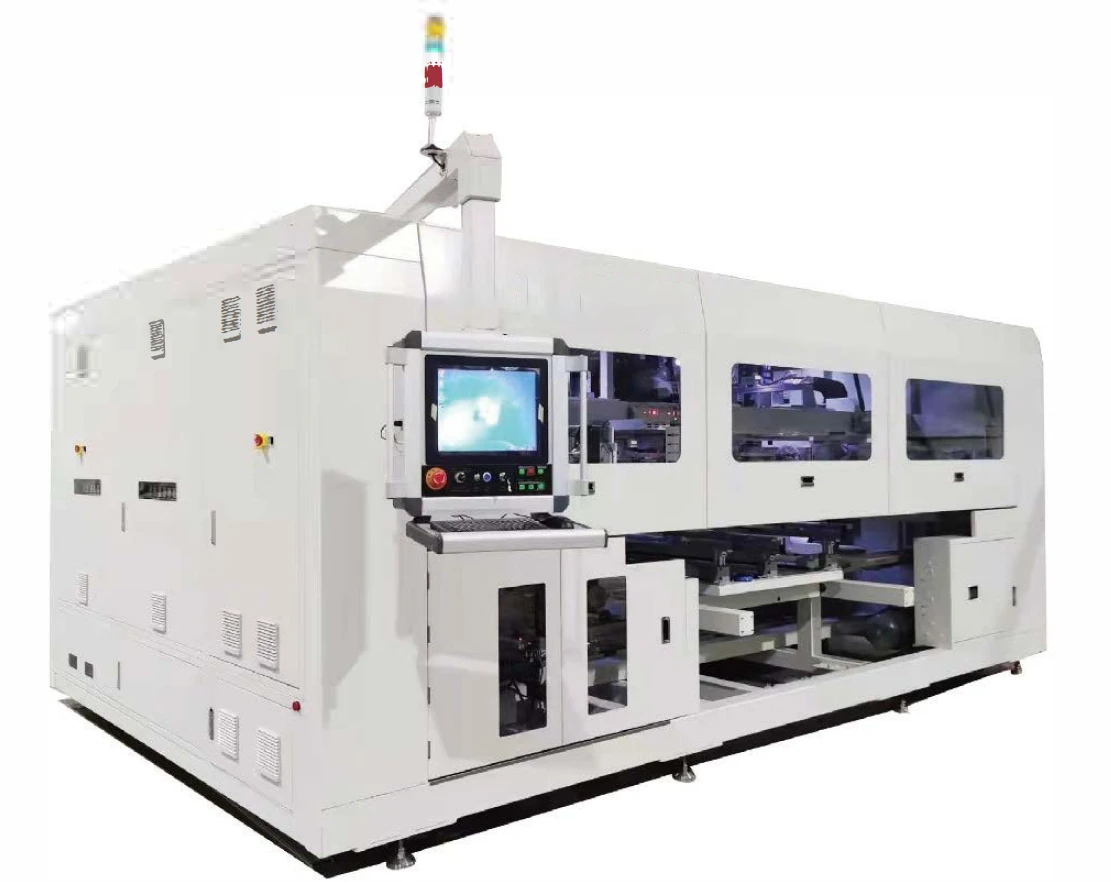

Solar Panels Production Line Auto Bussing

Auto Bussing

The cell induction soldering head is used to interconnect and solder the bus ribbon at the head, middle and tail of the outgoing line type assembly; it has the function of coil bus ribbon feeding belt and bending U-and L-type leads upward. Higher speed; compatible with larger size modules.

♦ Cycle time :17sec/panel( single bypass soldering ) 21 sec/panel (opening Double bypass soldering )
♦ Activation：≥98%;
♦ Cell Specification:166mm-230mm;
♦ Panel specification:
A 156-180 Cell:
6 strings x 10 half pieces x 2;
6strings x 11 half pieces x 2;
6 strings x 12 half pieces x 2;
6stings x 13 half pieces x 2
B.182 Cell:
6 strings x 9 pieces x 2 :
C.210Cell:
6 strings x 10 half pieces x 2;
6strings x 15 one third pieces x 2
D.210Cell:
5 strings x 10 half pieces x 2;
5 strings x 15 one third pieces x 2
♦ Cell space: -0.5-4mm;
♦ String space: 1-6mm;bypass soldering of String space≥10mm
♦ Glass specification: width (980-1500mm)* length(1720-2600mm);
♦ Correction accuracy of cell string ≤± 0.25mm;
♦ Equipment power supply: three-phase 380V 50/60Hz:
♦ Power: peak 35kW;average 25kW;
♦ Air: positive pressure 0.6~0.8MPa, negative pressure about- 70kPa;
♦ Equipment size:length*width*height: 6580*5604*2621 mm (including two assembly lines)

♦ Cycle time 17s, high speed
♦ Strong compatib巾ty : compatible with Multi-shard of 6 strings , 5 strings single Bypass soldering and 6 strings double Bypass soldering
♦ Corrects twice to the position of the 10 / 12 series hallf piece cell string, grabs the cell string by vacuum adsorption, one time empty soldering and high welding accuracy.
♦ Convenient specification conversion.
♦ Can punch at the end of the bus ribbon
♦ Single side feeding, easy to operate
♦ Double Bypass soldering integration can meet the customer's demand for 6 strings double Bypass soldering of bypass bus ribbon, can be closed or opened according to the actual use demand.
♦ The smallest floor area, the lowest CoO.
