Off Grid Solar Power Systems
video

Off Grid Solar Power Systems

Our off-grid solar power systems comprise of solar panels, batteries, inverters, and charge controllers. The solar panels capture sunlight and convert it into DC power which is then stored in the batteries. The charge controller regulates the charging of the batteries so that they remain healthy and last longer. The inverter converts the DC power into AC power, which can then be used to power your electrical appliances and gadgets. Our off-grid solar power systems are easy to install, and require minimal maintenance. They are designed to provide reliable, efficient power, even in the harshest weather conditions. Additionally, these systems are environmentally friendly and do not emit harmful gases, making them the ideal power solution for our planet. By choosing our off-grid solar power systems, you can enjoy many benefits such as cost savings, energy independence, and decreased carbon footprint. With our responsive customer support, you can be confident that you’ll receive a high-quality, durable and efficient solar solution that meets your specific needs.
Send Inquiry

Description

Technical Parameters

Off-Grid Solar Power Systems: The Future of Sustainable Energy
Off-grid solar power systems are becoming increasingly popular as people seek sustainable and smart solutions to powering their homes, businesses, and communities. These systems use photovoltaic (PV) panels to convert sunlight into electricity, providing power even in remote locations where there is no access to grid electricity.
Off-grid solar power systems consist of PV panels, batteries, and inverters. The panels capture sunlight and convert it into direct current (DC) electricity, which is then stored in batteries for later use. The inverter converts the DC electricity into alternating current (AC) electricity, which is what most appliances and devices use. Additional components may include charge controllers, generators, and monitors to manage the system and ensure optimal performance.


Introducing our 3kw home solar power system:

Edobo



Features:




1-logo

One of the key benefits of off-grid solar power systems is their environmental friendliness. They produce zero emissions and require no fossil fuels, making them a clean and sustainable energy source. Additionally, they provide energy independence and security, with no reliance on the unstable and unpredictable grid.
Off-grid solar power systems are also versatile and can be customized to meet specific energy needs. They can be designed for small homes or large commercial buildings, with various battery and panel configurations depending on the anticipated energy usage. They are ideal for remote areas, where the cost of extending grid electricity is prohibitive, or for areas prone to power outages.
The initial cost of implementing off-grid solar power systems can be high, but the long-term benefits outweigh the upfront investment. These systems can provide years of reliable and sustainable power, with minimal maintenance requirements. They can also reduce energy costs over time, as users are not subject to the rising costs of traditional grid electricity.
Several governments and organizations are promoting off-grid solar power systems as a means of achieving sustainable energy access for all. In developing countries, where access to electricity is limited, these systems can provide a reliable and affordable energy source, improving the quality of life for many. Additionally, off-grid solar power systems can contribute to reducing carbon emissions, helping to mitigate the effects of climate change.
In conclusion, off-grid solar power systems are a smart and sustainable solution for powering homes, businesses, and communities. They offer numerous benefits, including energy independence, environmental friendliness, and versatility. With the continued development of new and innovative technologies, off-grid solar power systems have the potential to transform the way we produce and use energy, paving the way for a cleaner and more sustainable future.





Usage scenarios








Item

Components name


Technical data

Quantity

1

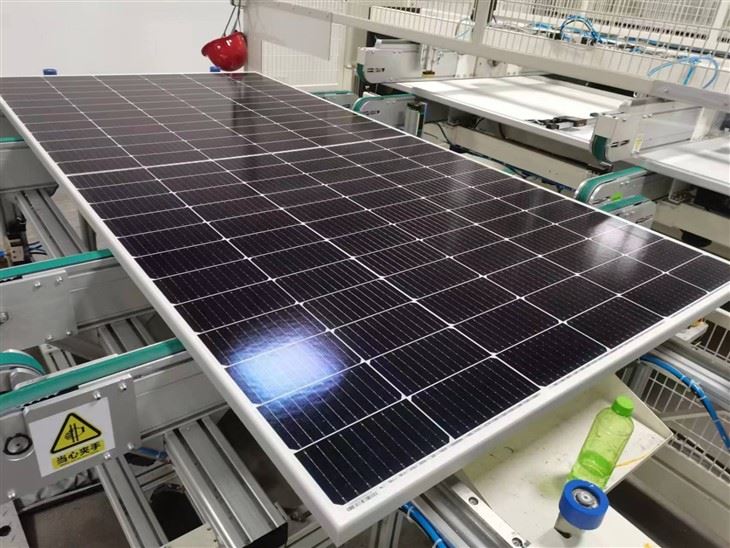

Mono Solar Panel

product-150-150

Rated power:550watt, 144cell,9BB
Voltage at Pmax:42V
Current at Pmax:13.1A
Open-circuit voltage:49.82V
Short-circuit current:13.97A
size:2279*1134*35mm

6pieces

2

Off grid Inverter

product-150-150

Rated capacity:3KW

DC input:24VDC

AC Output:230VAC±5%

50/60HZ

Single Phase

1piece

3

Gel battery

product-150-150

Nominal Voltage (V) 12
Nominal Capacity:150AH
Maintenance Type:Free

4pieces

4

PV cable

product-150-150

PV1-F4 4MM2

red wire is 25m

black wire is 25m

50m

5

MC connector

product-150-150

Rated voltage:1000V

4pairs

6

PV mounting structurer,

product-150-150

Anodized aluminum alloy material

alloy is 6063

temper is T5

suitable for 6pc solar panel

1set

4-1

Yantai Edobo Tech.Co.,Ltd

Edobo is a leading company in the field of solar energy products. We offer a wide range of products that are designed to meet the demands of the modern world and help our customers take advantage of renewable energy sources. Our product line includes solar panels, power systems, inverters, batteries, and other solar energy-related products.

Professional team

our team, comprising proficient engineers and professionals, is dedicated to providing comprehensive technical support, tailored solutions, and expertise to ensure the seamless integration of our solar products.

Strict Quality Control

Our state-of-the-art manufacturing facility, coupled with seasoned industry experience, ensures that every product is meticulously crafted to meet or exceed industry benchmarks.





Contact now

modular-1

20 Years

Experience

7K

Positive Review

9K

Order recieved

3GW

Projects Completed





product-600-450

why choose us?



We are committed to providing customers with comprehensive solutions, including design, installation, and maintenance. Our professional technical team has rich experience and can provide customers with the highest quality service and technical support.
We insist on putting customer needs at the center, constantly innovating, and continuously optimizing our products and services. Our goal is to become a leading enterprise in the field of photovoltaic panels and photovoltaic power generation systems, to promote the development of sustainable energy and contribute to the improvement of the Earth's environment.
If you want to install a photovoltaic power plant, cooperating with our company is your best choice. Our products have superior quality, stable performance, long service life, and comprehensive after-sales service. We guarantee that you can purchase the highest quality products and services with the least amount of money.

one-stop solution

professional team

high quality
