On Grid Photovoltaic System 100kw
2.on grid photovoltaic system 100kw works very stably. Our company's solar energy systems have always performed stably, with high work efficiency and extremely low failure rates, and have received unanimous praise from customers.
Description
Technical Parameters
Introducing our on grid photovoltaic system 100kw:
Features:
On Grid Photovoltaic System 100kW: Benefits and Features
Photovoltaic technology has been gaining increasing popularity since it offers a sustainable and eco-friendly energy alternative compared to the traditional methods of electricity generation. The On-Grid Photovoltaic System, also known as the Grid-Tie or Grid-Connected System, connects the solar panel system to the national grid, allowing you to sell surplus electricity back to the utility company.
Here are some of the benefits and features of this system.
1. Cost Saving
An On-Grid Photovoltaic System can help reduce annual electricity bills by generating electricity on-site. The system can produce electricity during the peak hours, thus offsetting high tariff rates charged by the utility company.
2. Sustainable and Eco-Friendly
The On-Grid Photovoltaic System is an eco-friendly alternative to traditional electricity generation methods. It uses solar energy, a renewable source of energy, to generate electricity, reducing the carbon footprint and environmental impact.
3. Low Maintenance
An On-Grid Photovoltaic System requires minimum maintenance compared to other energy-generating systems. The PV panels are tested and installed by certified professionals and require little or no cleaning, depending on the geographical location.
Advantages:
4. Easy Installation
An On-Grid Photovoltaic System is easy to install and doesn't require any additional equipment or space since it uses the existing power grid. The installation is usually done within a few days, depending on the size of the system.
5. Energy Independence
An On-Grid Photovoltaic System provides energy independence since the electricity generated can meet the energy demands of the establishment it is installed in. Moreover, the excess electricity generated can be sold back to the utility company, generating revenue for the organization.
6. Government Incentives
Many governments around the world offer incentives such as tax credits, rebates, subsidies, and grants to organizations that adopt renewable energy sources. Installing an On-Grid Photovoltaic System can help organizations avail of these incentives, thus reducing the overall cost of the system.
In conclusion, On-Grid Photovoltaic System with 100kW capacity offer a sustainable and eco-friendly alternative to traditional electricity generation methods. Besides the benefits of energy independence, low maintenance, and cost savings, it also helps in reducing the carbon footprint and environmental impact. The upfront cost may seem high, but the long-term benefits outweigh the initial investment.
The Commercial Solar Power System 100kw includes high-quality solar panels, inverters, and other necessary equipment that is required to generate clean energy and connect to the grid. The system can be customized based on the specific needs of the client, ensuring that it is tailored to their energy requirements and budget.
|
Item |
Components name |
Picture |
Technical data |
Quantity |
|
1 |

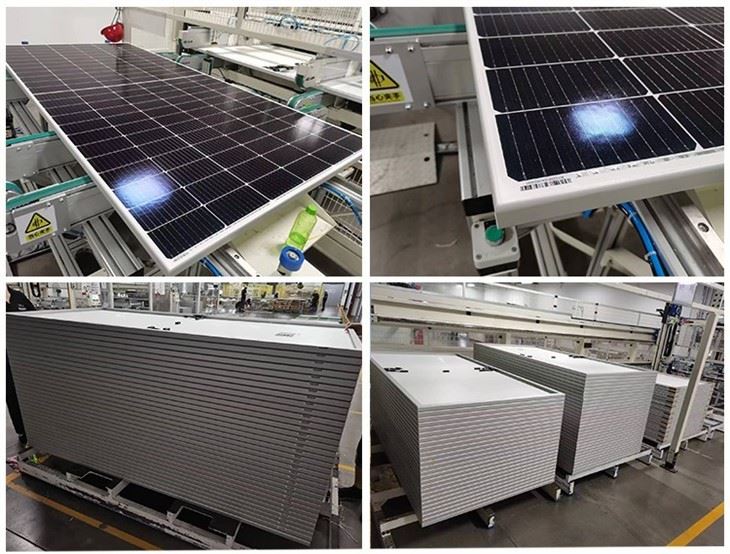

Mono Solar Panel(Brand:Yingli) |
|
rated power:450watt,144cell,9BB. weight:23.5kg |
240pieces |
|
2 |
Grid-tied Inverter(Brand:Solis) |
|
Rated Output power:100KW Rated grid voltage:480VAC single phase 60HZ |
1piece |
|
3 |
WIFI stick |
|
Monitoring system |
1piece |
|
4 |
AC combiner box |
|
1 input 1 output 100KW |
1piece |
|
5 |
PV cable |
|
PV1-F4 4MM2 red wire is 100m black wire is 100m |
1300m |
|
6 |
MC connector |
|
Rated voltage:1000V |
50pairs |
|
7 |
PV mounting structurer Anodized aluminum alloy material alloy is 6063 temper is T5 |
|
suitable for 240pc solar panel |
1set |
