Solar Panel 90° Flip Visual Inspection Machine

this 90-degree flip machine for manual inspection of laminated solar modules is a valuable tool that bridges the gap between fully manual handling and fully automated inspection. It improves the efficiency, ergonomics, and consistency of the manual inspection process, contributing to quality control in solar panel manufacturing. It focuses on the integrity of the lamination process and the overall module's physical condition before framing.

Send Inquiry

Description

Technical Parameters

Solar Panels Production Line 90° flip inspection

product-1600-900

Solar Panels Production Line 90° flip inspection

product features

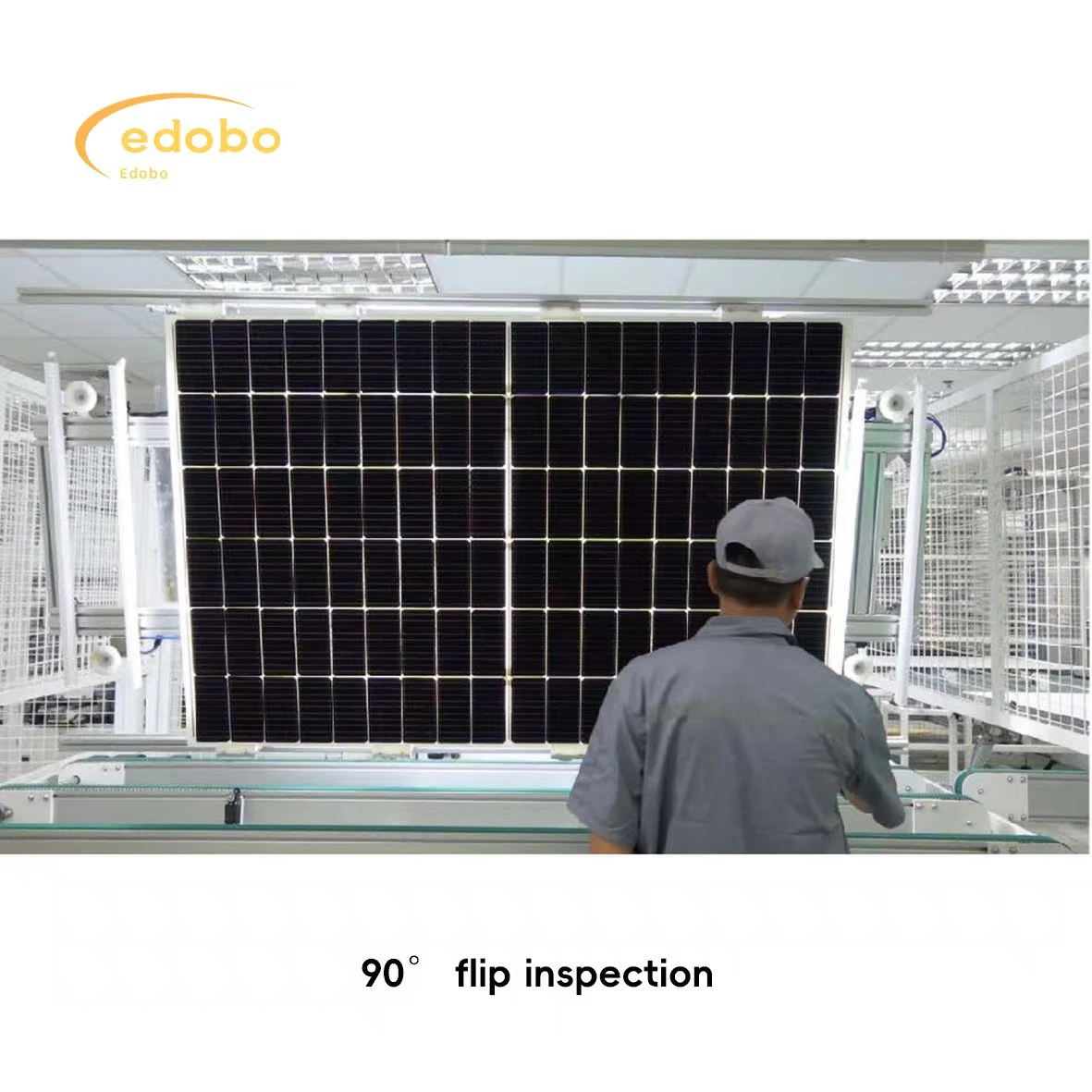

90° flip inspection：

The solar panel can be flipped 90 degrees for visual inspection, with short in and short out.
1. The equipment is made of steel and has high strength and stability
2. Use LED lights for illumination
3. It is driven by a standard motor (variable frequency control) and controlled by a cylinder for action

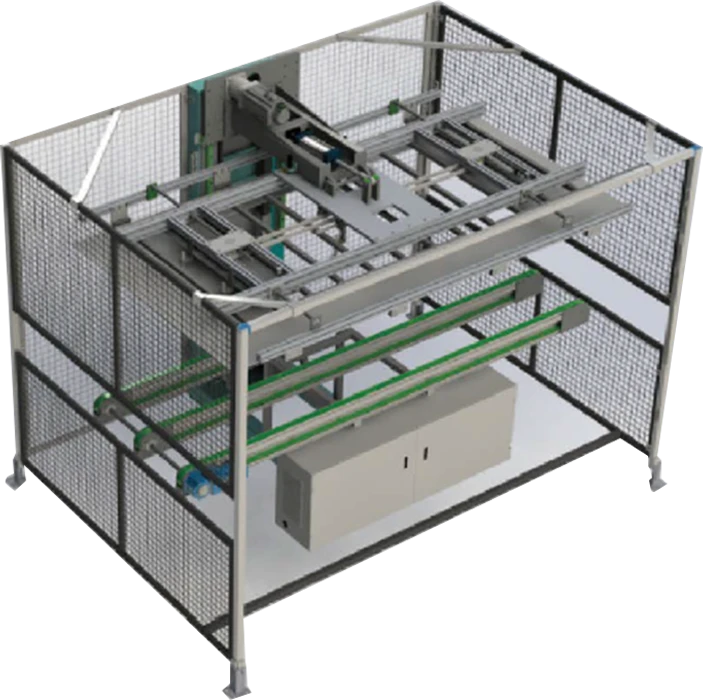

1-1

Manual Inspection of Laminated Modules:

90-Degree Rotation: it automatically rotates the laminated solar module by 90 degrees in its plane.

Facilitate Manual Inspection: This rotation presents different edges and surfaces of the laminated module to a human inspector, making it easier to visually examine all sides for defects. The machine assists the manual inspection, it doesn't automate the inspection itself.

Ergonomic Improvement: The machine significantly improves the ergonomics of the inspection process. Instead of the inspector having to manually lift, rotate, and maneuver the heavy and potentially fragile module, the machine does the heavy lifting and precise positioning. This reduces the risk of worker injury and module damage.

Transition Point: It still serves as a controlled transition point in the production line, moving modules between processes

The equipment uses 12 sets of LED lamps on the back to detect hidden cracks and impurities inside the module.

Solar Panels Production Line 90° flip inspection

♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 1 person
♦ Weight: approximately 1080kg
♦ Rated power (KW): 2KW
♦ Pressure (MPa):0.6-0.BMPa
♦ Gas consumption (L/min):3.8L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 2,900 mm*2100mm*2150mm
