Solar Panel Automatic Trimming Machine

The automatic edge cutting machine is a crucial piece of equipment in the solar panel production line, ensuring that the laminated panel is trimmed to its precise final dimensions and prepared for the framing process. It uses precision cutting mechanisms, often guided by vision systems, to achieve high accuracy and consistency, contributing significantly to the efficiency and quality of solar panel manufacturing.

Send Inquiry

Description

Technical Parameters

Solar Panels Production Automatic Trimming

The primary role of the automatic edge cutting machine is to trim the excess encapsulant and backsheet material that extends beyond the edges of the solar cell matrix after the lamination process.

This is a critical step for several reasons:

1.Precise Dimensions: The lamination process often leaves a "flashing" or "squeeze-out" of encapsulant (e.g., EVA or POE) and backsheet material around the perimeter of the panel. The edge cutting machine trims this away, bringing the panel to its final, precise dimensions. This is essential for proper framing and installation.

2.Clean Edges for Framing: The trimmed edge provides a clean, even surface for the aluminum frame to adhere to. Excess material would interfere with the framing process, leading to a weaker and potentially less aesthetically pleasing result.

3.Preventing Delamination (Indirectly): A clean, well-defined edge can indirectly help prevent delamination (separation of the layers) over time. Excess material can create stress points or pathways for moisture ingress, which can contribute to delamination.

4.Aesthetics: A neatly trimmed edge contributes to the overall professional appearance of the finished solar panel.

5.Preparation for Subsequent Processes: The trimmed edge prepares the panel for the next steps in the production line, such as corner milling (if done after edge trimming) and junction box attachment.

6.Handling and Safety: Trimming removes potentially sharp or uneven edges of the laminate, making the panel safer to handle.

produc features

Automatic Trimming

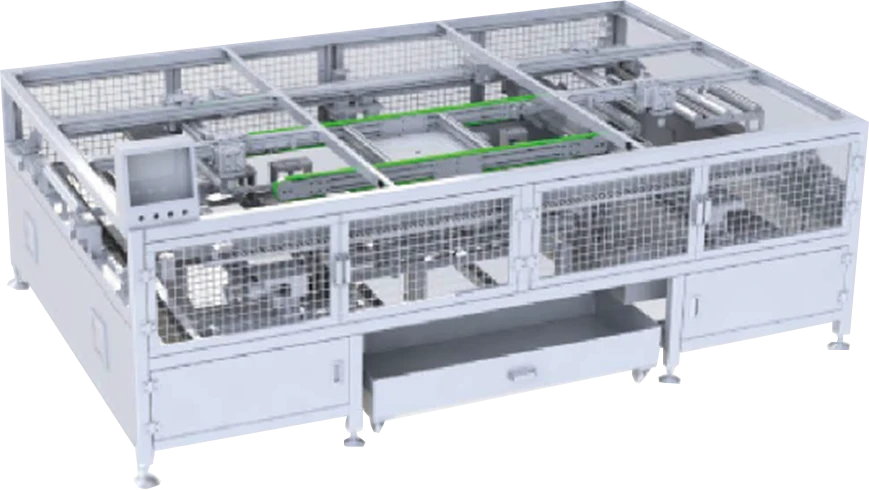

Automatic edge cutting machine for solar panel production line
1. Component growth or short in/short out
2. After lamination, automatically cut the excess edge materials of the components.
3. It can quickly adjust the long side, short side, and suction cup. Switching components is fast and convenient.
4. Perform circular cutting on the four edges for high efficiency
5. There is elastic contact between the cutting blade and the glass, which can be easily adjusted through the pressure of the contact
6. The machine is equipped with a waste bin for easy cleaning

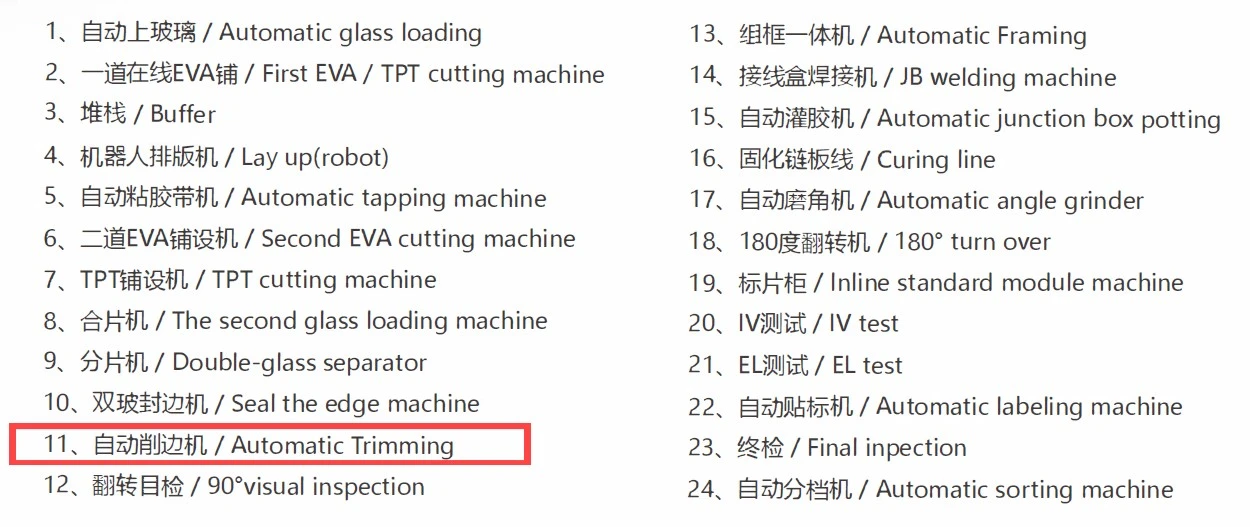

Solar Panels Production Automatic Trimming

Cut the excess backplane and EVA around the laminated assembly

Solar Panels Production Automatic Trimming

♦ Applicable components: conventional, half sheet and double glass components of length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: No
♦ Weight: approximately 2150kg
♦ Rated power (KW): 2KW
♦ Pressure (MPa):0.6-0.BMPa
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 3,520mm*2240mm*1200mm
