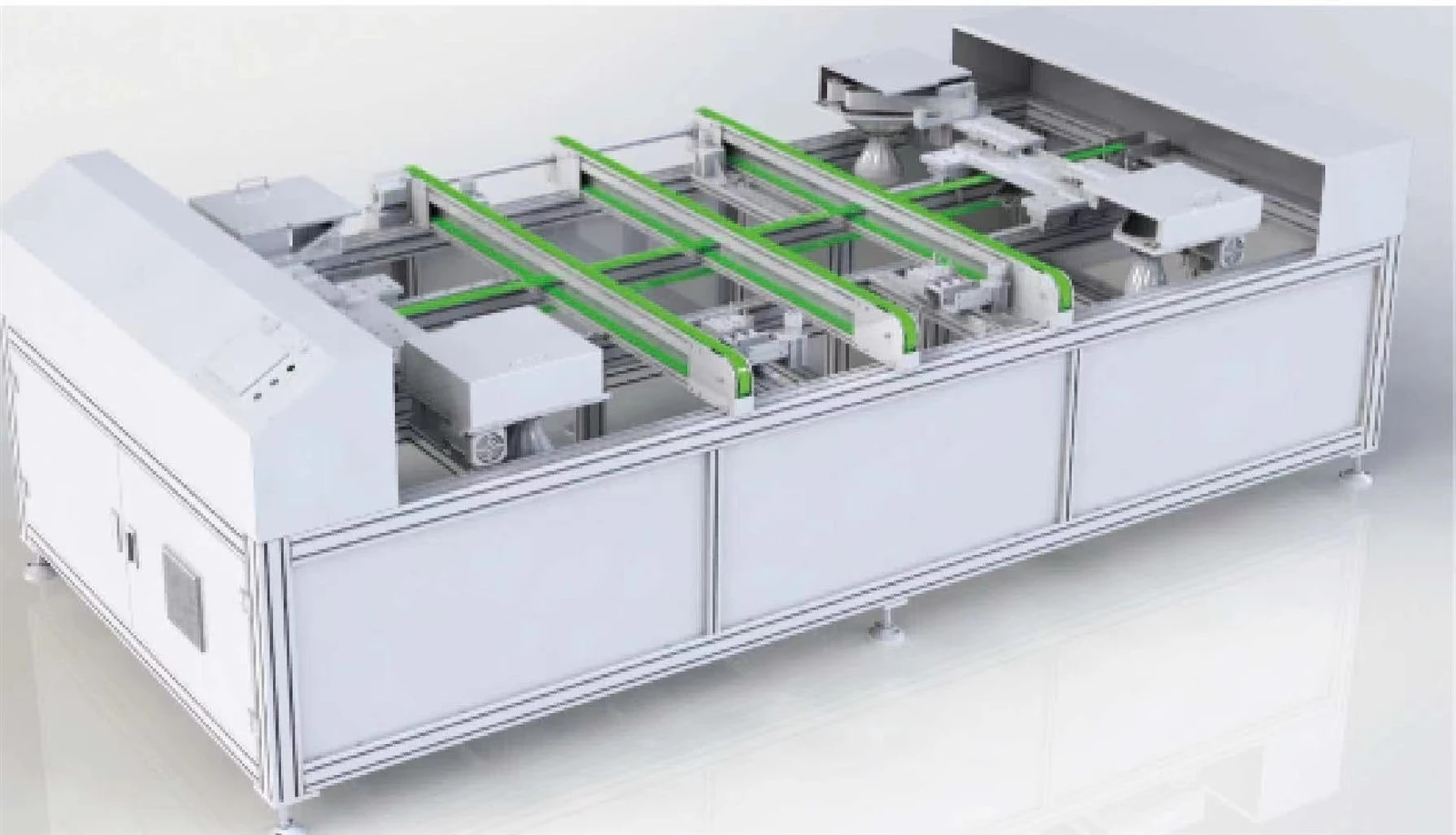

Solar Panel Corner Milling Machine Production Line

Corner milling

Polish the toughness angle of the component in the finished frame

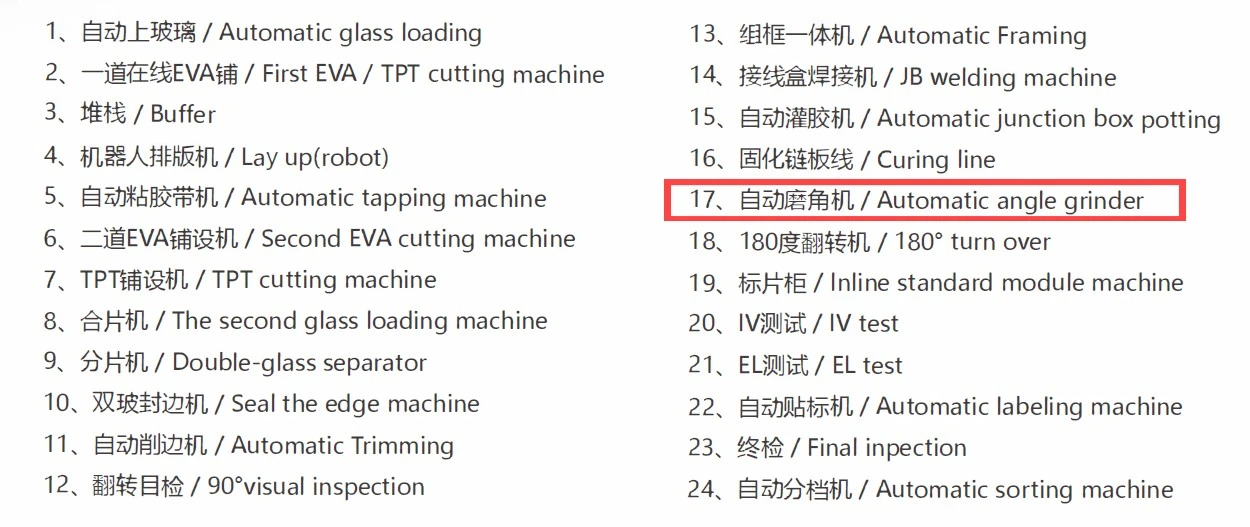

Solar panel production process
Automatic corner polishing function
1. The long side enters and exits, and is adjusted by the cylinder
2. The servo motor drives the grinding mechanism to move, while the ordinary motor drives the grinding wheel to the corner of the component
3After the grinding is completed, the grinding mechanism returns and the solar panel module is removed

Advantage
1. The device is driven by a servo motor and synchronous belt transmission, and has the characteristics of accurate and stable operation
2. The four corners will be ground simultaneously to ensure rhythm;
3. The sanding belt in the angle grinder has a retraction function, making it easy to replace
4. This machine has a steel structure, high strength, and reliable transmission
5. The device is fully automatic and does not require any operation

♦ Applicable components: length-1640-2500mm & width-950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: No
♦ Rated power rating (KW):1.SSKW
♦ Pressure (MPa):0.6-0.8MPa
♦ Gas consumption (L/min): 36 L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 3,950mm*1800mm*1100mm
♦ weight:1200KG
