Solar Panel Auto Taping Machine

A solar panel auto taping machine is an automated piece of equipment used in the manufacturing of solar panels to apply various types of tape to different parts of the panel during the assembly process. These machines are designed to increase production speed, improve accuracy, reduce material waste, and enhance the overall quality and consistency of the finished product compared to manual taping.

Send Inquiry

Description

Technical Parameters

Solar Panels Production Automatic Tapping Machine

Automatic Tapping Machine

Automatically tape the assembly

Solar Panels Production Automatic Tapping Machine

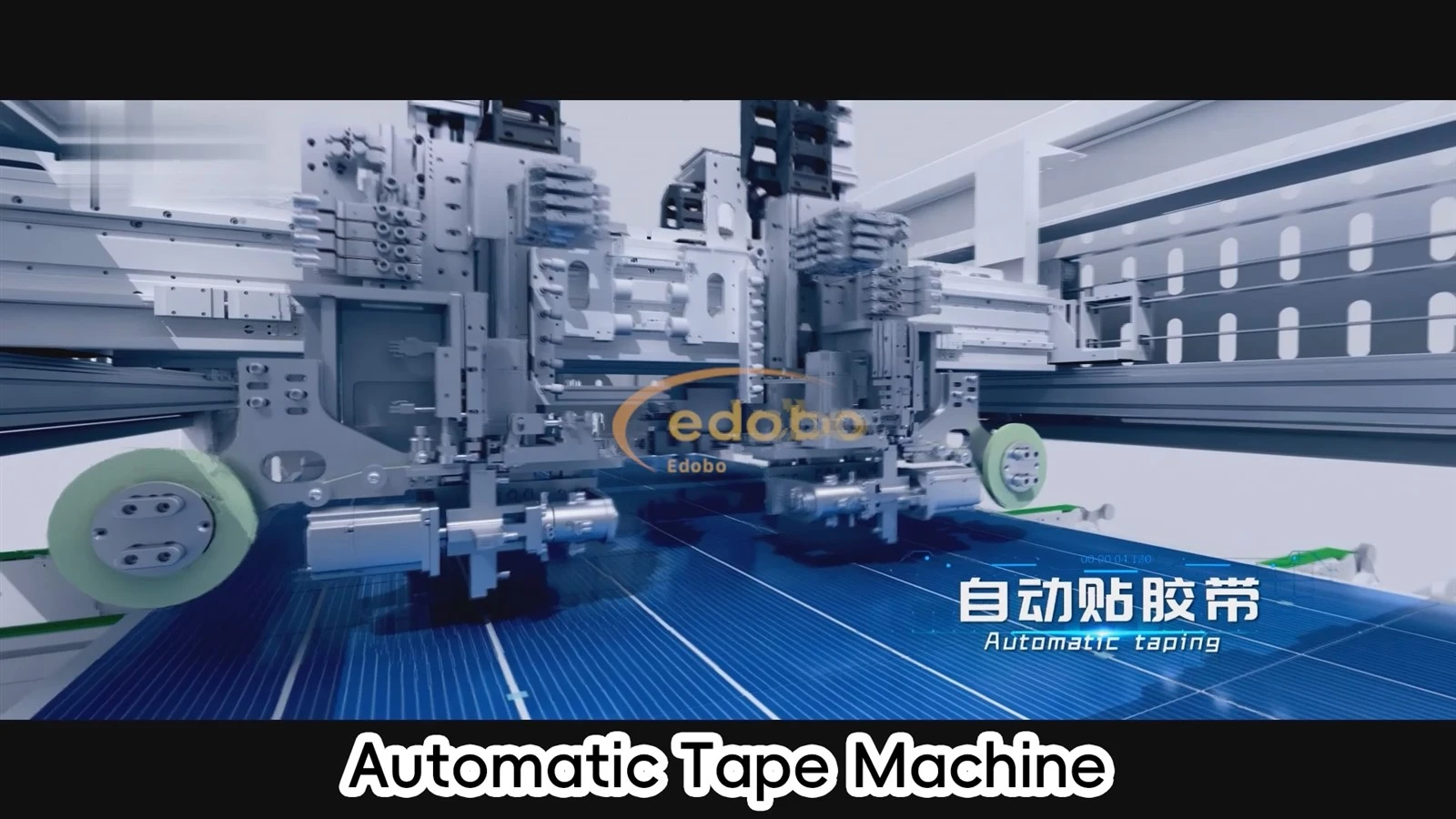

product-1600-900

product-1080-67

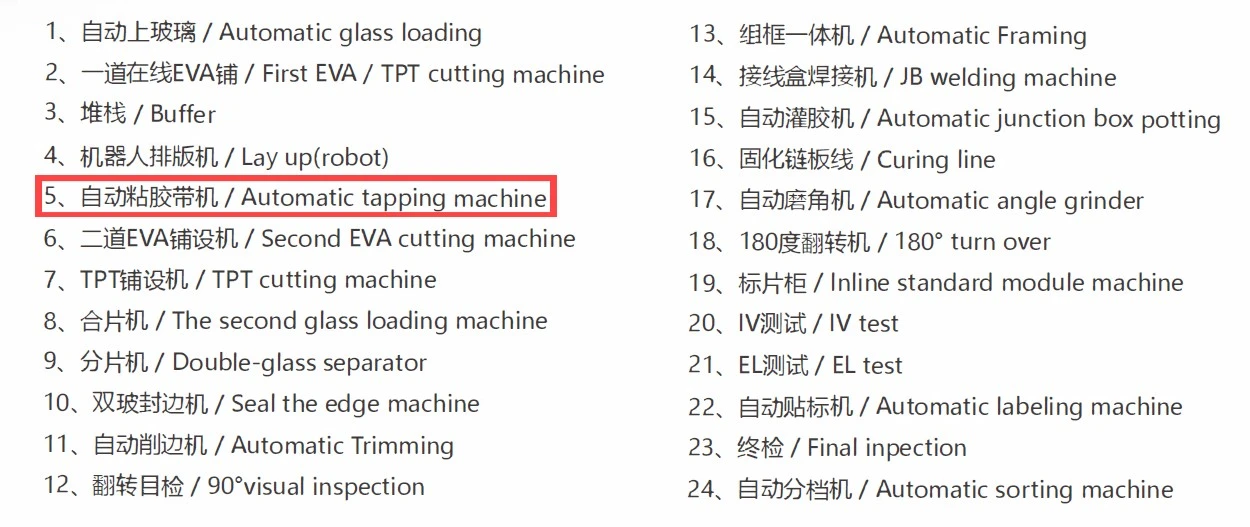

Solar panel production line equipment
Main functions:
Automatic tape pasting machine replaces manual labor, saving labor costs

1. The outside of the machine is an integrated frame, which is beautiful.

2. Standard motor frequency conversion control transmission.

3. When the component is transferred to the correct position, the cylinder will straighten and fix its position

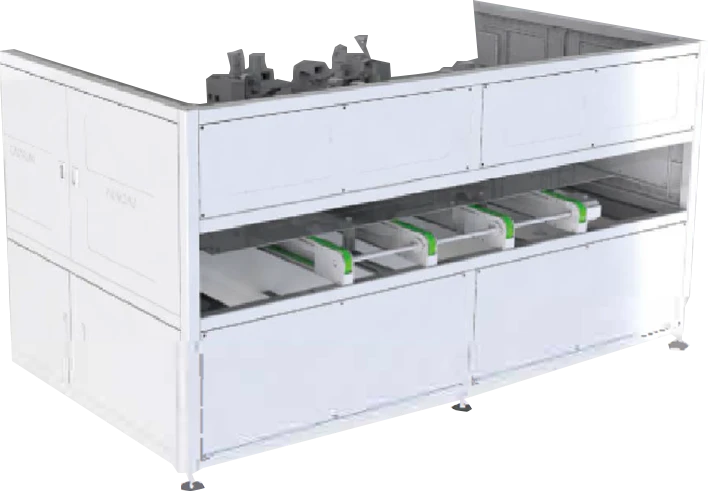

1-1

Main functions of automatic tape sticking machine
Fixed battery cells: firmly attach the battery cells to the substrate to prevent displacement.

Sealing protection: sealed with tape to prevent moisture and dust from entering, enhancing the durability of the components.

Improve efficiency: Automated operations reduce manual intervention and increase production efficiency.

Ensure consistency: Ensure that the adhesive tape of each solar panel is applied in the same position and with consistent force to improve product quality.

Machine features
High precision: Using high-precision sensors and control systems to ensure accurate adhesive tape placement.

Automation: Achieve automatic feeding, gluing, cutting and other functions, reducing manual operations.

Multi functional: Suitable for different specifications of solar panels and adaptable to various types of tape.

Efficient and stable: Fast running speed, high stability, suitable for large-scale production.

Easy to maintain: Modular design for easy maintenance and upkeep.

Energy saving and environmental protection: Low energy consumption design that meets environmental requirements.

Solar Panels Production Automatic Tapping Machine

♦ Applicable component specifications: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 0
♦ Weight: about 600 KG
♦ Rated power (KW): 3KW
♦ Pressure (M Pa):0.6-0.8M Pa
♦ Gas consumption (L/min):3.8L/min
♦ Interface specification: 12
♦ Noi se (dbA): <72db
♦ Overall dimension (length*width*height): 3150mm*2000mm*1800mm
