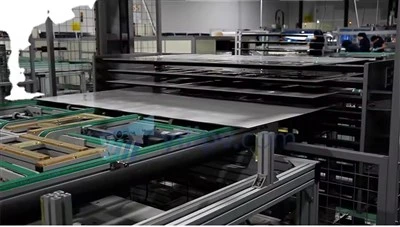

Turnkey Solar Panel Production Line

Automatic framing

Series Welding Machine

Test instrument

Advantages of Turnkey Solutions:

Reduced Risk: The supplier takes responsibility for all aspects of the project.

Faster Implementation: Streamlined process from design to operation.

Simplified Project Management: Single point of contact for all equipment and support.

Guaranteed Performance: Suppliers often offer performance guarantees for the entire system.

Lower Initial Investment (Potentially): May bundle costs and have better financing options.

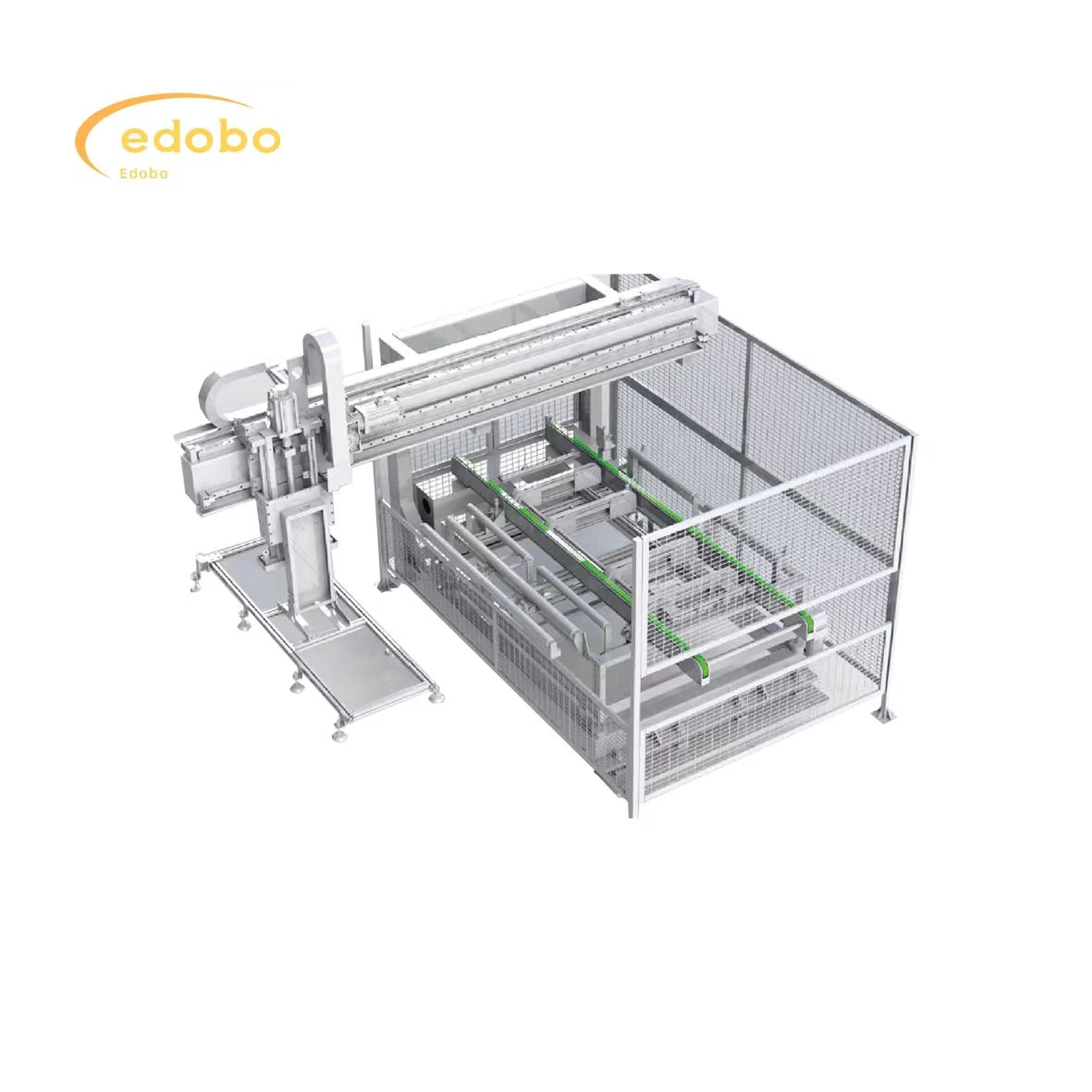

Glass unloader

1. Scalable Production Output: 50 to 500 Megawatts Annually Instead of a technical capacity range, we describe it as a desired production output that can grow. This means we need a line that can start at a smaller scale (50 MW/year) but can be expanded to meet increasing demand, potentially reaching 500 MW/year. The line should be inherently designed to accommodate future growth.

2. Electrical Infrastructure: 380V Three-Phase Power, Customer Responsibility This clarifies that we need an industrial-grade electrical supply (380V, three-phase with five wires). This also clearly states the division of responsibilities: the equipment's power consumption will be detailed by the manufacturer (e.g., Edobo Solar), but setting up the actual power lines and distribution within the facility is the customer's responsibility.

3. Clean and Dry Compressed Air: 0.6 - 0.8 MPa with Stringent Purity This section now focuses on the quality of the compressed air required. We need a steady supply of compressed air within a specific pressure range (0.6 - 0.8 MPa). This air must be exceptionally clean and dry to support automated processes. We are specifying a high level of purity: dust particles less than 1 micrometer, a dew point of -40 degrees Celsius or lower, and minimal oil contamination (including vapor).

4. Manufacturing Environment: Cleanroom Class 8 (ISO 14644-1) Instead of just stating a numerical level, we're clarifying that the manufacturing area must adhere to cleanroom standards. Specifically, we require an environment that meets at least ISO Class 8 (also known as 300,000 level) which means maintaining a very low level of airborne particles to ensure the quality of the solar panels.

5. Efficient Material Handling: Conveyor Speed for 500MW/year Output This rephrased section highlights that the material handling system (conveyors) needs to move components quickly and reliably. We require a conveyor speed capable of supporting a 500MW/year production output. This translates to a cycle time of less than 22 seconds for each co

1. The cell adopts CCD visual positioning, which has the advan­tages of high accuracy and stability;
2. The equipment can automatically receive, automatically layout and automatically export components, and layout is accurate positioning;
3. The suction cup is made of imported silicone material, which will not leave a mark on the surface of the battery;
4. Adopt the three-axis mechanical motion mode (rotating 180°);
5. The lateral movement adopts linear motor module, which has the advantages of fast movement speed, high repeated position­ing accuracy and stable performance, save the overall beat time;
6. Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
