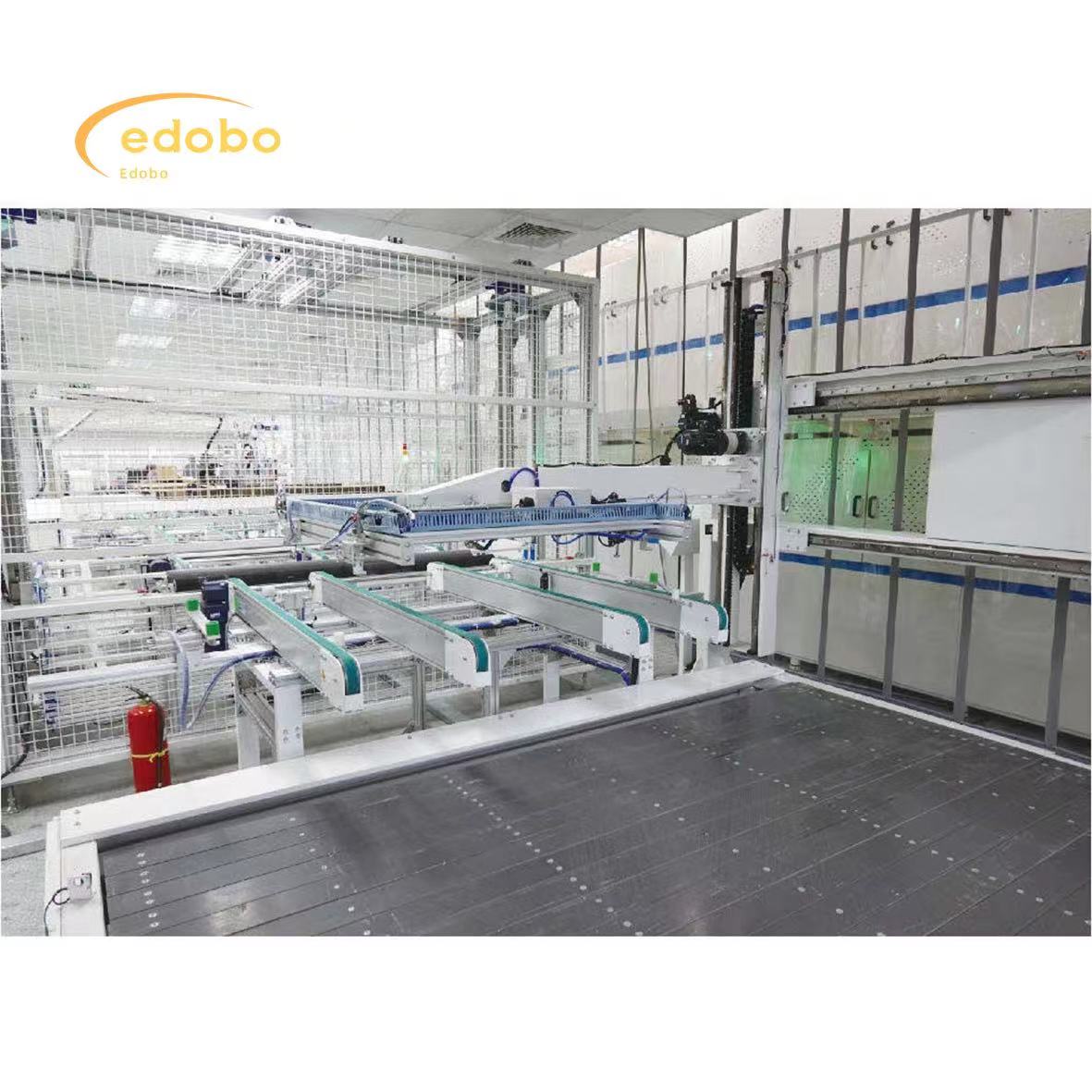

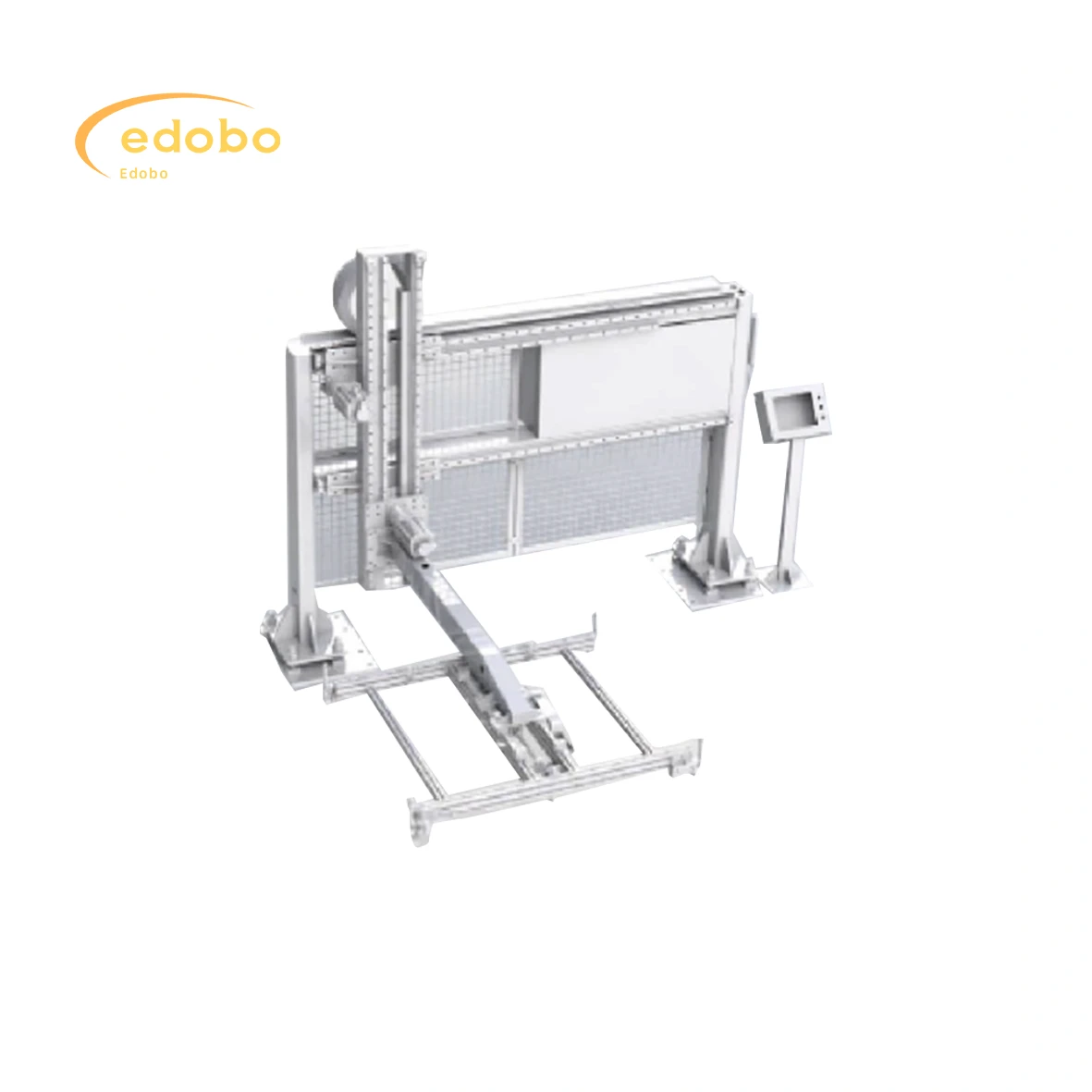

Solar Panels Production Line Curing Handler

Curing handler

Hold the assembly to the curing line for curing/ grab the assembly from the curing line and put it into the line to let it out

♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: No
♦ Weight: about 1,780 k g
♦ Rated power rating (KW):6.0KW
♦ Pressure (MPa):0.6-0.8MPa
♦ Gas consumption (L/min):10.7L/min
♦ Interface specification: 12
♦ Noise (dbA): <72db
♦ Overall dimension (length*width*height): 3050mm*2960mm*2550mm

1. The equipment is driven by a servo motor, with gear and rack drive and linear rail guide, which has the advantages of accurate operation and smooth operation;
2. The whole machine is equipped with a safety fence, and has the safety protection function;
3. The clip frame is firmly and reliable, and the frame is not scratch;
4. The whole machine is equipped with power off and gas off protection;
5. The equipment is operated automatically, and the operation process does not require personnel intervention;
6. The operation and programming interface is simple and easy to use;
