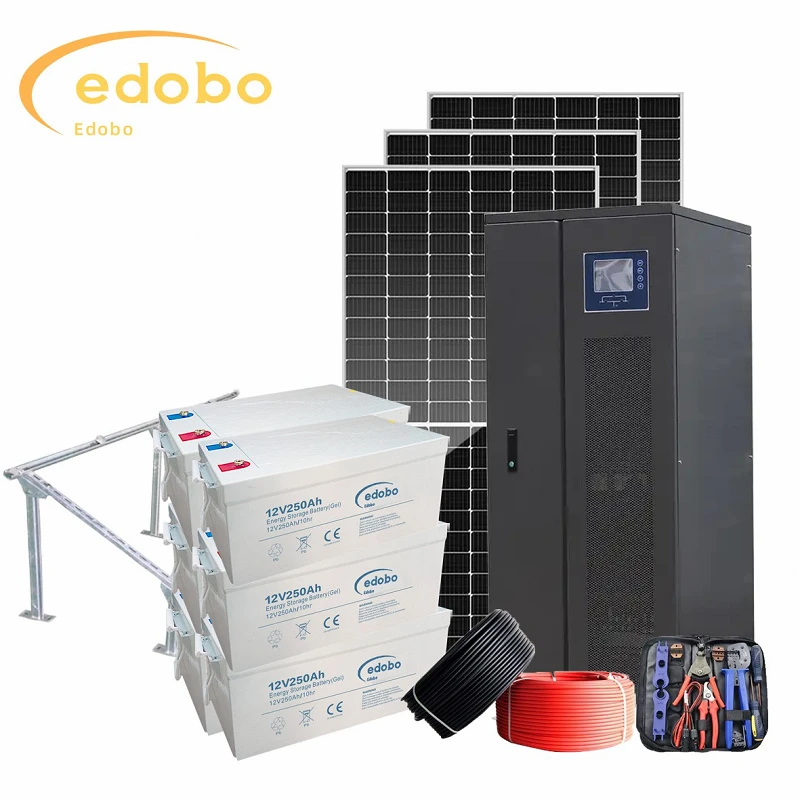

Home Solar Power System
video

Home Solar Power System

1. Home solar power system has high power generation efficiency. By using high-quality materials and combining advanced and efficient configuration systems, we ensure high power generation while reducing losses. Our design is more user-friendly and durable.
2. Home solar power system works very stably. Our company's solar energy systems have always performed stably, with high work efficiency and extremely low failure rates, and have received unanimous praise from customers.
Send Inquiry

Description

Technical Parameters

Introducing our home solar power system:



At Edobo company, we take immense pride in our commitment to delivering solar photovoltaic solutions that epitomize the highest standards of quality, reliability, and performance. Our state-of-the-art manufacturing facility, coupled with seasoned industry experience, ensures that every product is meticulously crafted to meet or exceed industry benchmarks.



Edobo, a solar component manufacturing company with over 20 years of experience, has built a state-of-the-art factory to produce high-quality solar panels. The factory occupies a vast area of 60,000 square meters, allowing for large-scale production.



The factory is equipped with advanced production lines and cutting-edge technology, ensuring the production of reliable and efficient solar panels. The production process is strictly monitored and controlled to ensure the quality of each and every panel.

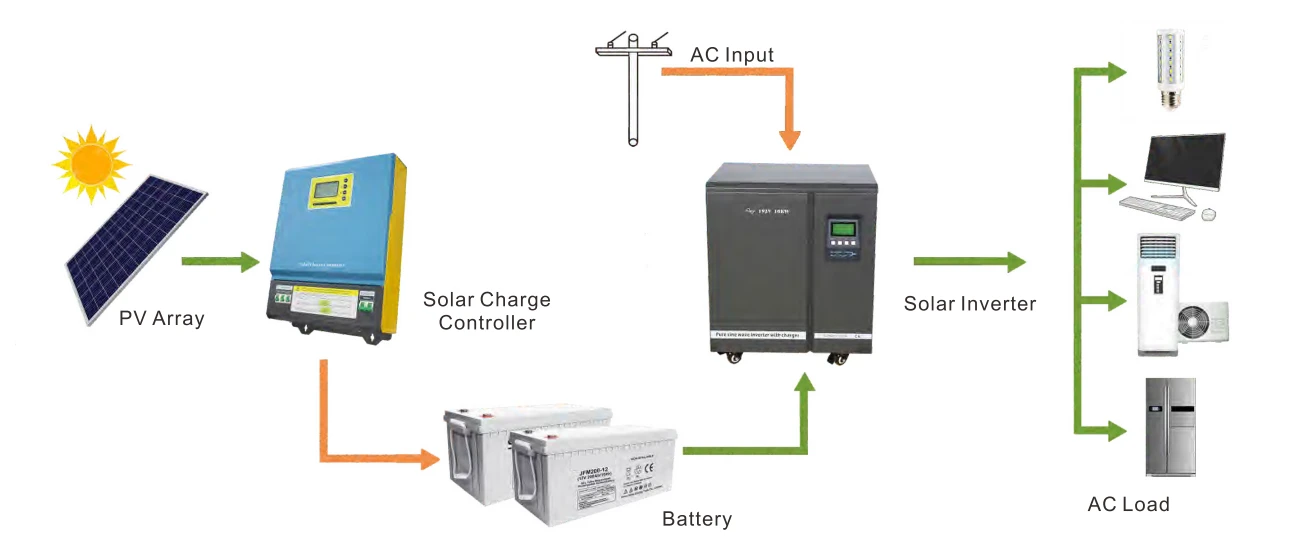

off grid solar system working diagram



Features:




Solar Panels For Companies

1. Environmentally friendly: home Solar power systems use only the energy of the sun to generate electricity, resulting in no harmful emissions or carbon footprint. Using solar power helps to preserve the environment and reduce the impact of human activities on the planet.

2. Cost-effective: Once installed, solar panels require little maintenance, and their initial cost is offset by the savings on electricity bills. Over time, solar power systems can save homeowners thousands of dollars in energy costs.

3. Reliability: While home solar power systems may not generate electricity at night, they are just as reliable as traditional power sources during daylight hours. And, if properly installed and maintained, solar panels can last for decades.

4. Quiet: Unlike traditional generators that can be loud and disruptive, homw solar power systems operate quietly and without any noise or vibration.

5. Independence: Homeowners who install home solar power systems become more self-sufficient and independent from the grid. This can be particularly valuable in areas with frequent power outages or natural disasters.

6. Flexibility: Home Solar power systems can be installed on a wide range of buildings and locations, making them versatile and flexible.

Advantages

1. Cooperate with us, your goods and funds are safe. We sign sales contracts with our customers for every order, using laws to protect the security of your funds and effectively safeguarding your rights. We purchase insurance for every shipment to ensure the safe arrival of the goods, striving to make customers feel at ease when buying and using them.

2. Multiple specifications to choose from: We offer home solar power system of various specifications and capacities to meet the needs of different customers.

3. Innovative Design: Our home solar power system is innovative in design, using advanced technology and materials to make the product more beautiful and energy-efficient.

4. Reliable Quality Assurance: Our products undergo multiple strict quality inspections to ensure their quality and reliability.

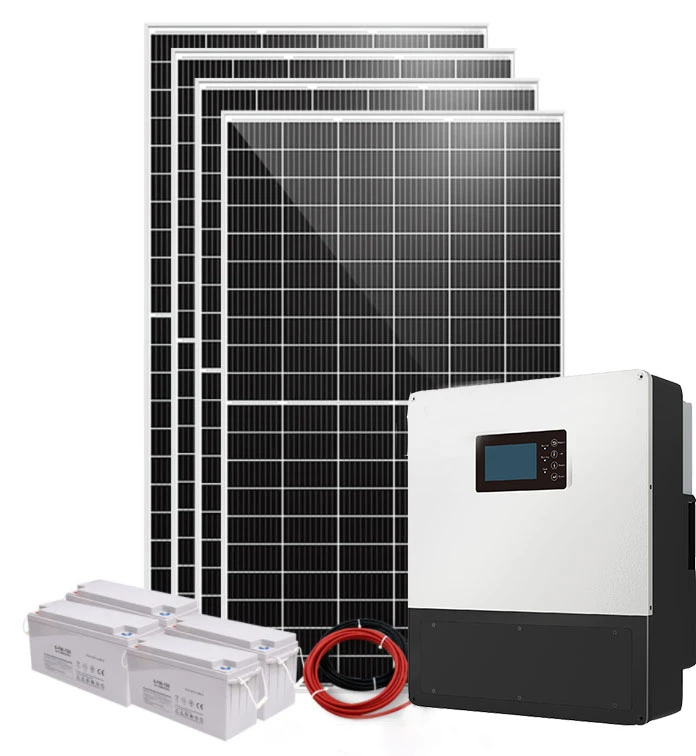

off grid solar sytem 1


Home Solar Power System configuration





Item

Components name


Technical data

Quantity

1

Mono Solar Panel

product-150-150

Rated power:550watt, 144cell,9BB
Voltage at Pmax:42V
Current at Pmax:13.1A
Open-circuit voltage:49.82V
Short-circuit current:13.97A
size:2279*1134*35mm

8piece

2

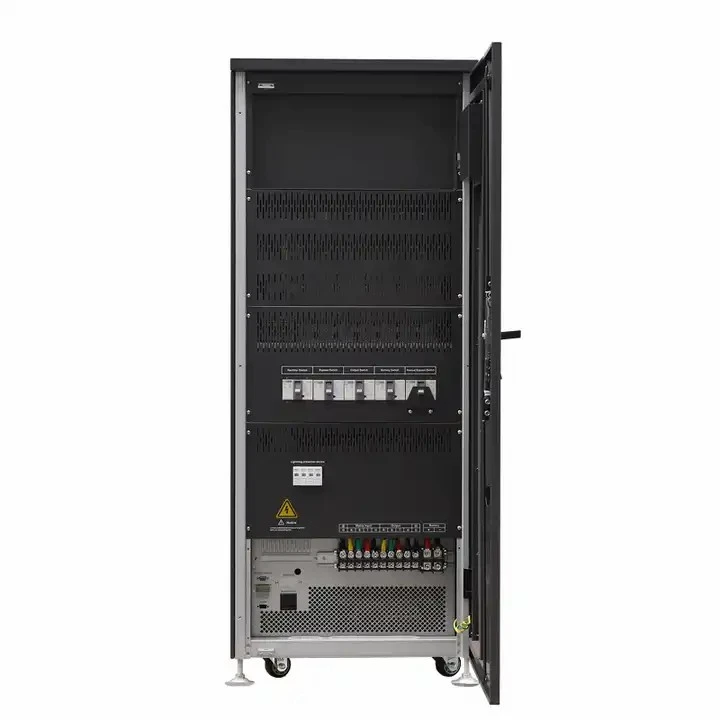

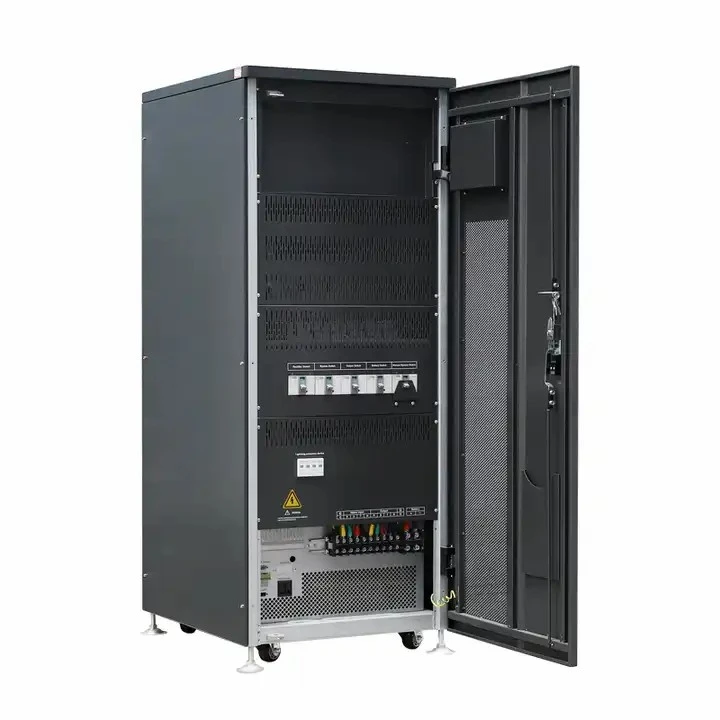

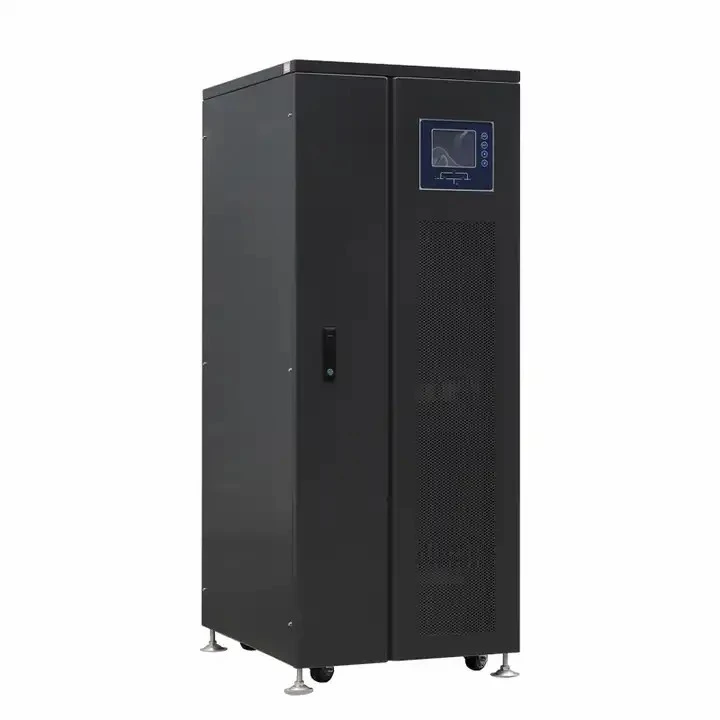

Off grid Inverter

product-150-150

Rated capacity:5KW

DC input:48VDC

AC Output:230VAC±5%

50/60HZ

Single Phase

1piece

3

Gel battery

product-150-150

Nominal Voltage (V) 12
Nominal Capacity:150AH
Maintenance Type:Free

8piece

4

PV cable

product-150-150

PV1-F4 4MM2

red wire is 190m

black wire is 100m

200m

5

MC connector

product-150-150

Rated voltage:1000V

4pairs

6

PV mounting structurer,

product-150-150



Anodized aluminum alloy material

alloy is 6063

temper is T5

suitable for 8pc solar panel

1se









Where to install

Installing a home solar power system is a great way to harness the power of the sun and generate renewable energy for your home or business. With solar energy, you can save money on electricity bills while simultaneously helping the planet and reducing your carbon footprint.

So where should you install your home solar power system? The answer depends on various factors, such as the location of your property, the amount of sunlight it receives, and the type of solar panel system you choose.

In general, it is best to install solar panels on a south-facing roof or a location with unobstructed southern exposure. This is because southern-facing panels will receive the most sunlight throughout the day, maximizing their energy output. However, if your roof faces east or west, you can still install panels, but the overall energy output may be slightly lower.

Additionally, it is important to consider any shading that may affect your home solar panel system. If there are trees, buildings, or other obstructions that cast shadows on your roof or property, it may impact the overall performance of your solar panels. It is best to avoid shading as much as possible when installing solar, so make sure to choose a location that is free of obstructions.

Finally, the type of home solar panel system you choose will also impact where it can be installed. If you opt for a rooftop solar panel system, it will need to be installed on a strong, durable roof with adequate structural support. If you choose a ground-mounted system, it will need to be installed in a location with ample space and access to electricity.



Our Packing

our packing



product-850-1924

Why Choose Us





If you're looking to install a solar power plant, partnering with us is the right choice for you. As experts in the field, we are committed to helping our clients realize their energy goals by providing them with efficient and reliable solar solutions. We work closely with our clients to understand their unique energy needs and develop customized solutions that fit their budget and requirements. Our team of skilled professionals will guide you through the entire process, from evaluating your site and designing the system, to installation and ongoing maintenance. With our expertise and personalized approach, you can be confident that your solar system will not only meet but exceed your expectations. So why wait? Contact us today to learn more about how we can help you go solar!



11
